Pharmaceutical Homogenizer

GMP Standard, Smooth & Uniform, Emulsification & Dispersion, Enhanced Drug Efficacy

What Is a Pharmaceutical Homogenizer

  • Model
  • SVE

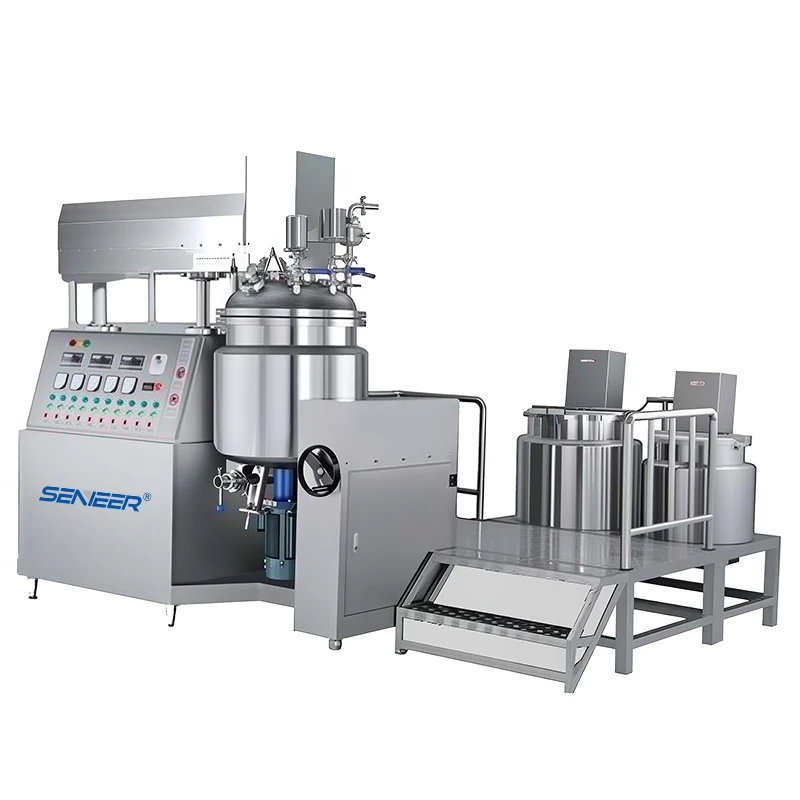

The pharmaceutical homogenizer is a GMP-standard, pharmaceutical-specific homogenization equipment used for crushing, emulsifying, dispersing, and homogenizing liquid medicines, creams, ointments, suspensions, emulsions, vaccines, and biological stock solutions. By significantly reducing material particle size, it enhances product stability, uniformity, and medicinal efficacy. The machine operates under vacuum and controlled temperature, ensuring no contamination and preserving the activity of sensitive ingredients.

Request A Quick Quote

Product Features

  • High-Shear Homogenization– Rotor-stator working head achieves particle sizes down to 1–5 microns.
  • Vacuum Degassing System– Removes air bubbles to prevent oxidation and ensure a smooth, air free final product.
  • Precise Temperature Control– Jacketed vessel with heating/cooling capability maintains optimal temperature for heat sensitive pharmaceuticals.
  • Polished surfaces (Ra ≤ 0.4 μm). Easy to clean and sterilize (CIP/SIP optional).
  • Paddle Mixer with Scraper– Gentle but effective mixing for high viscosity creams and ointments, with scrapers preventing wall buildup.
  • PLC Control & Recipe Management– Touch screen interface with full data logging for batch reproducibility and compliance.

Application

Application of Senieer equipment in pharmaceutical industry

Pharmaceutical

Application of Senieer equipment in nutraceutical industry

Nutraceutical

Senieer icon

Animal

Application of Senieer equipment in food industry

Food

Application of Senieer equipment in chemical industry

Chemical

Application of Senieer equipment in health care industry

Healthcare

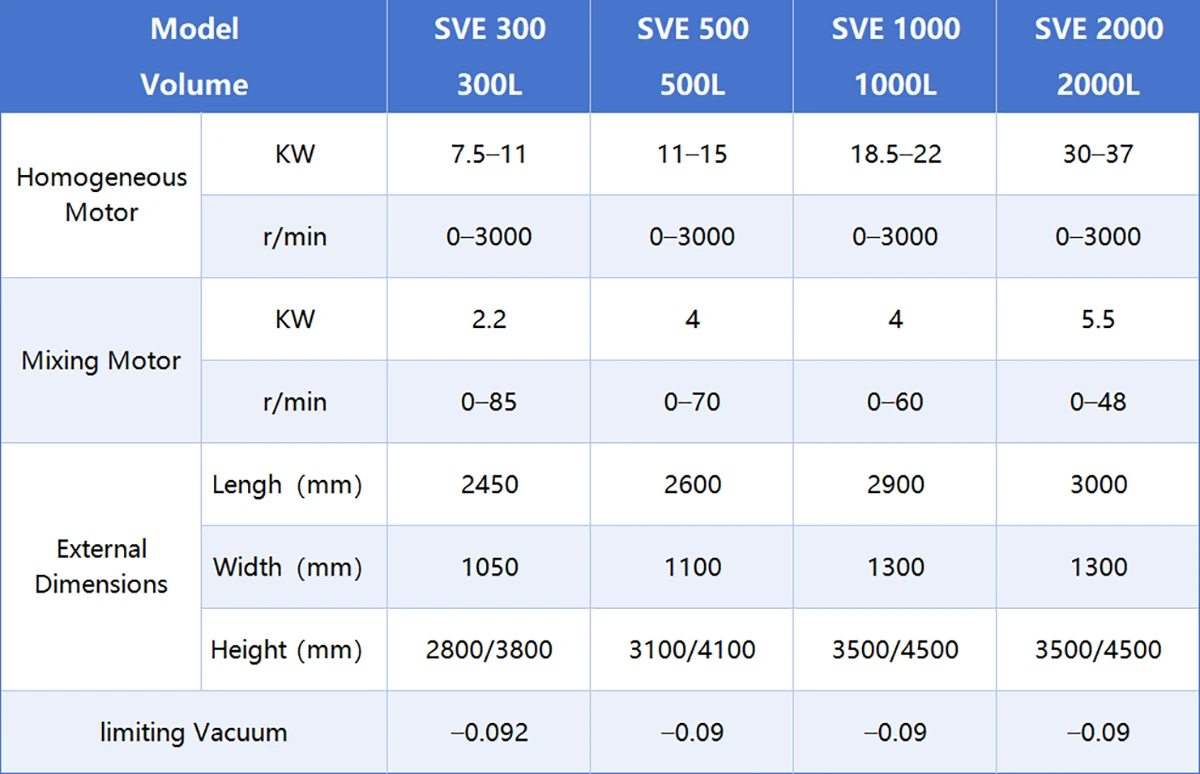

Technical Parameters of Pharmaceutical Homogenizer

technical parameters of pharmaceutical homogenizer

Product Details of Pharmaceutical Homogenizer

products of lab vacuum emulsifying mixer
  • Particle size (D90): 1 – 10 μm, depending on formulation and processing time.
  • Viscosity range: 1,000 – 100,000 cps (centipoise), covering lowviscosity solutions to thick ointments and gels.

For extremely high viscosity pastes or sub-micron emulsions (e.g., nanoemulsions), we offer high pressure homogenizer options.

Pharmaceutical manufacturing demands absolute consistency, sterility, and reproducibility. Senieer’s homogenizers are built to meet the strictest regulatory requirements, helping you:

  • Reduce particle sizeto improve bioavailability and dissolution rate
  • Achieve uniform contentin creams, gels, and suspensions
  • Prevent ingredient degradationwith vacuum and low temperature operation
  • Maintain batch to batch uniformityvia automated recipe control
  • Comply with GMP, FDA, and EU regulations
  • Scale up smoothlyfrom lab (10L) to production (5000L)
pharmaceutical homogenizer

Current Product: Pharmaceutical Homogenizer

The pharmaceutical homogenizer (vacuum emulsifying mixer) is an industrial system specifically designed for the production of sterile or non sterile liquid and semi solid dosage forms. Unlike conventional mixers or colloid mills, this machine integrates high shear homogenization, vacuum deaeration, scraped surface mixing, and jacketed heating/cooling into one closed vessel. This enables pharmaceutical manufacturers to produce stable emulsions, fine suspensions, and uniform ointments with enhanced drug efficacy and extended shelf life.

Request A Quick Quote

Upstream Products

vacuum conveyor
Vacuum Conveyor
industrial mixing tank
Mixing Tank
rapid mixer granulator machine
Rapid Mixer Granulator Machine

Downstream Products

pharma blister packaging line
Packing Line
stf 800 tube filling and sealing machine
Tube Filling and Sealing Machine
scl 1000 liquid capsule filling machine
Liquid Capsule Filling Machine

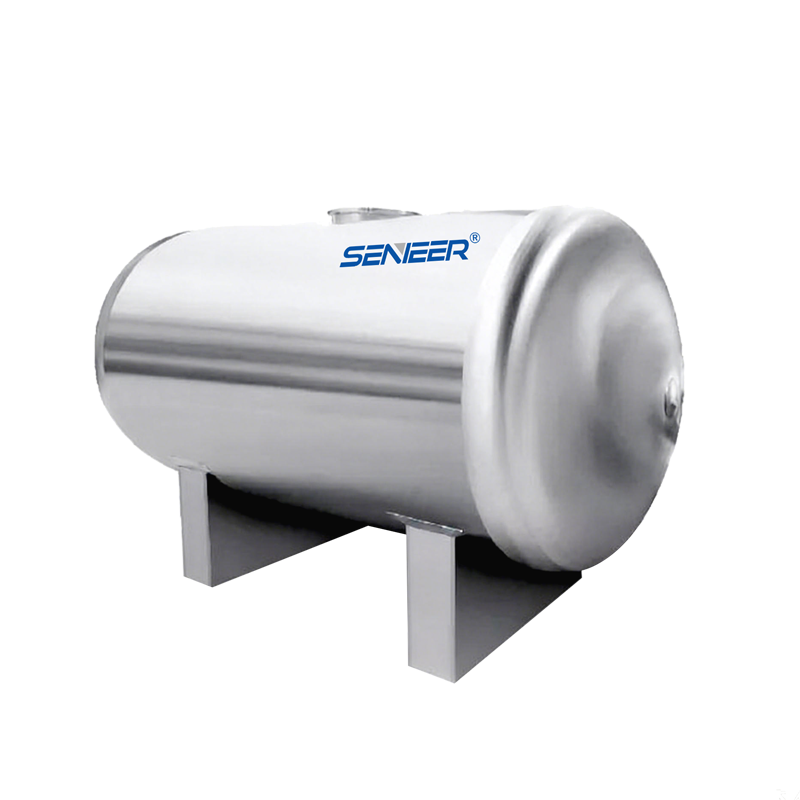

stainless steel storage tank (3)
