SBL 260 Blister Packaging Line

ALU/PVC, Flexible Mold Replacement, High Precision Molding, Suitable For Complex Blisters

SBL 260 Blister Packaging Line

  • Model
  • SBL 260

The SBL 260 blister packaging line consists of the SBP 260 flat plate blister packaging machine, an SAC 400 fully automatic cartoning machine, and other optional equipment, suitable for the linkage production line of forming, filling, and cartoning irregular solids, such as drugs, food, cosmetics, and daily chemicals. This line can be equipped with a fully servo-controlled, modular design that is highly intelligent, fast, and can improve production efficiency, reduce labor intensity, and reduce production costs. At the same time, it fully complies with the requirements of national GMP drug production quality management standards, and can also be customized according to the actual production needs of customers.

Request A Quick Quote

Product Features

  • Meet GMP industry standards, comply with international development requirements.
  • Modular design, reasonable structure, easy adjustment, and maintenance
  • An HMI control system can choose Servo motors and variable frequency motors controlled by PLC control.
  • The transmission mechanism is simplified, and the maintenance is more convenient.
  • The push-back design makes the operation more convenient.
  • Suspended design, clean without dead corners, convenient, and fast.
  • The use of a pitch design so that the carton range is wider.
  • Using truss robots or industrial robots to grab the product to pack, ensuring accurate and stable operation. (optional)

Application

Application of Senieer equipment in pharmaceutical industry

Pharmaceutical

Application of Senieer equipment in food industry

Food

Application of Senieer equipment in nutraceutical industry

Nutraceutical

Application of Senieer equipment in cosmetic industry

Cosmetics

Application of Senieer equipment in chemical industry

Chemical

Senieer icon

Animal

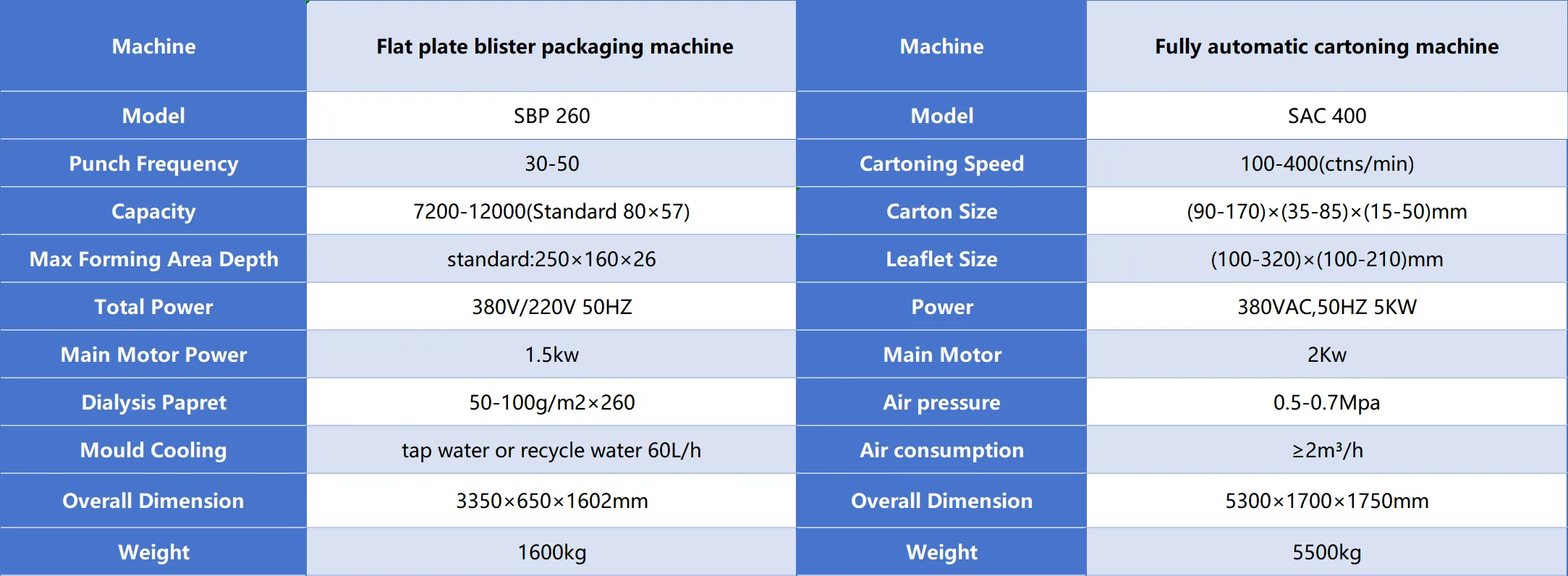

Technical Parameters Of SBL 260 Blister Packaging Line

technical parameters of sbl 260 blister packaging line

Product Details of SBL 260 Blister Packaging Line

sbp 260 flat plate blister packaging machine

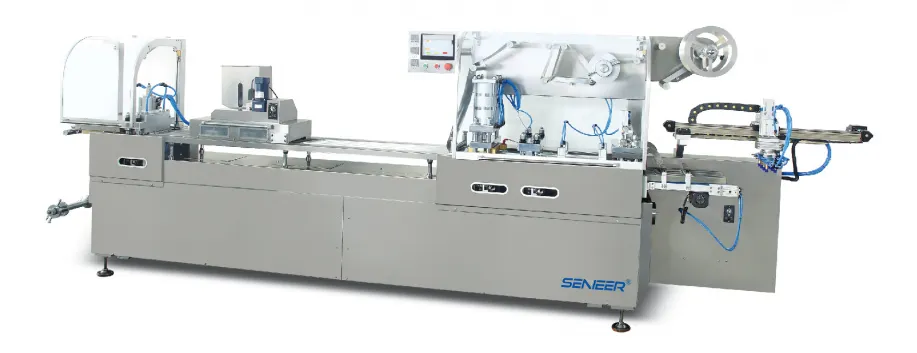

SBP 260 Flat plate blister packaging machine

The SBP 260 Flat plate blister packaging machine adopts a platen-platen type design. Molding, heat sealing, and punching are all completed on the plate, and the tablets, capsules, or small materials are sealed in a blister composed of plastic film (PVC) or aluminum foil (ALU). Compared with other blister machines, this machine ensures high molding accuracy, good sealing quality, and makes it convenient to change the mold. It can be used to pack capsules, ordinary tablets, sweets, and special-shaped items. Widely used in medicine, food, electronic components, medical equipment, hardware, and other industries.

sac 380 fully automatic cartoning machine

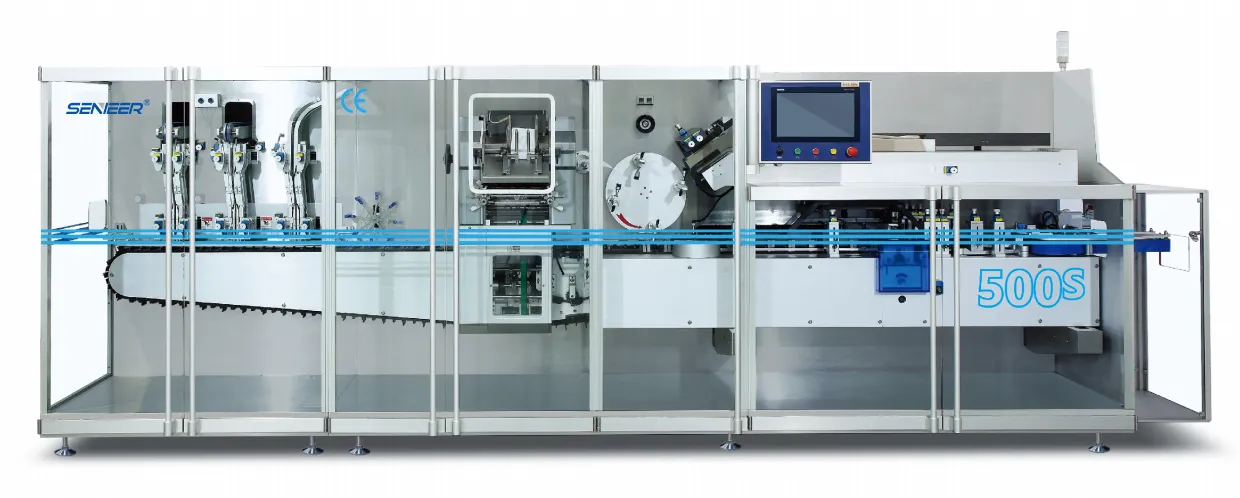

SAC 380 Fully automatic cartoning machine

The machine can reliably put a variety of specifications of medicine boards, traditional Chinese medicine preparations, small regular objects, and some small and medium-sized food into a specific carton, and the carton is sealed and sent out. The structural design of each part of the machine meets the requirements of GMP.

Instructions inserter (optional)

The insertion machine is one of the most important auxiliary equipment in the blister packaging line and boxing line. Its function is to automatically insert the folded instructions into the medicine box to achieve high-speed, standardized, and automated packaging.

Automatic case packing and sealing machine (optional)

A fully automated vertical all-in-one case packaging machine has been newly developed and combines domestic and international advanced technologies, and consists of an opening, packaging, and sealing. The use of a PLC+HMI control system allows this machine to be operated uniquely or in combination with other front-end packaging machines as a linked production line. Achieving automatic placement or arrangement of products for various specifications depends on the requirements for packing in case quantities.

the sbl 260 blister packaging line

Current Product: SBL 260 Blister Packaging Line

The SBL 260  blister packaging line sells well in middle and high-end drugs in pharmaceutical factories, small batch production, and scientific research lines. Depending on your production scale and automation level, the line can be fully customized, including product molds, cutting methods, and packaging design etc. Senieer exports to many areas with developed medical technology, such as the United States, Saudi Arabia, Switzerland, and Norway, which are recognized by the majority of customers. If you have any needs in this regard, please contact us quickly.

Upstream Products

scf 200 automatic capsule filling machine
Capsule Filling Machine

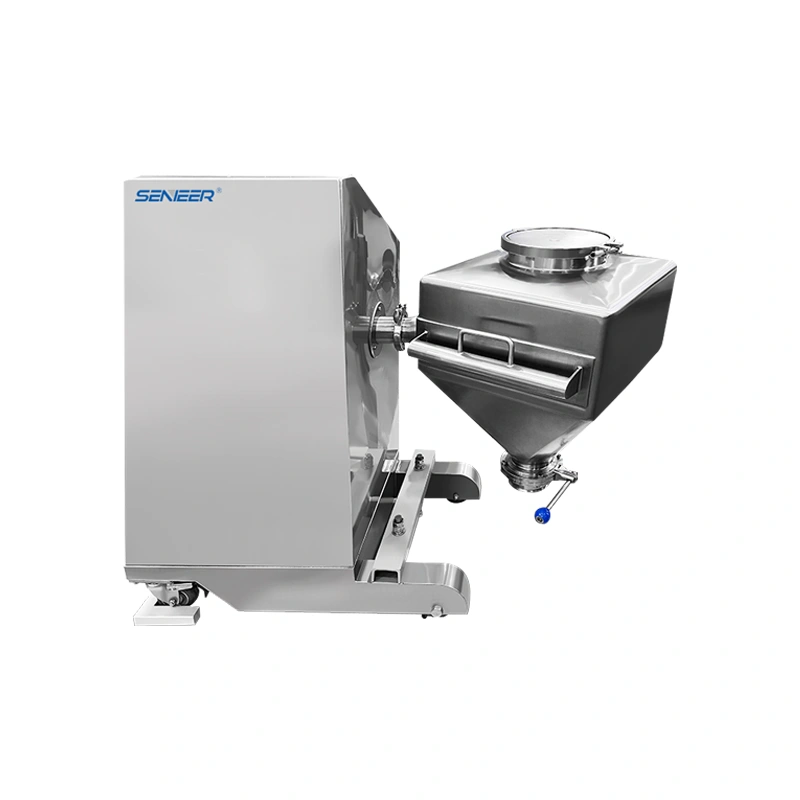

BSL laboratory bin blender
BSL Bin Blender
high speed rotary tablet press machine
Table Press Machine

Downstream Products

sbp140 automatic blister packing machine-1
Blister Packing Machine
automatic cartoning machine-1
Cartoning Machine/
