STF 800 Tube Filling Machine

High-Efficiency, Dual Positions, For Tube Packaging

STF 800 Tube Filling Machine

  • Model
  • Tube Material
  • Tube Diameter(mm)
  • Product Capacity(pc/min)
  • Heat Sealing Power
  • Overall Dimension(mm)
  • Machine Weight(kg)
  • STF 800
  • Metal tube,ALU tube
  • φ13-φ40
  • 60 120(Adjustable)
  • 6Kw
  • 3270 × 1470 × 2000
  • 2200

The STF 800 tube filling machine is a device specifically engineered for large-scale production industries. Compared to standard tube filling machines, it features a dual-station design. During hose fixing, material loading, hose sealing, and other processes, it operates in dual positions simultaneously, significantly enhancing output. Under optimal material conditions, it can achieve a maximum production capacity of 120 tubes per minute, making it the ideal partner for large pharmaceutical enterprises.

Request A Quick Quote

Product Features

  • Complies with GMP international standards applicable to the pharmaceutical, food, and cosmetics industries.
  • The servo control system fully understands the operating conditions of the equipment.
  • It features a high-grade operation screen with an LCD and PLC control, offering easy operation and enhanced humanization through stepless speed adjustment, parameter setting, output counting, pressure indexing, and failure display.
  • The machine automatically executes tube supply, photocell registration, inner gas filling (as an option), material filling and sealing, batch number printing, and final product output. It includes a high-precision photocell registration system that reduces the scope of chromatic aberration.
  • Adjustment parts are externally positioned with a digital display for convenient and accurate adjustments, making it suitable for producing variable products.
  • The mechanical, photoelectrical, electrical, and pneumatic integrated control system achieves a no-tube-no-filling function.
  • It issues a warning if the tube is incorrectly positioned or the pressure is too low, and it will automatically stop and open the protective door if necessary.

Application

Application of Senieer equipment in pharmaceutical industry

Pharmaceutical

Application of Senieer equipment in daily necessities industry

Daily Necessities

Application of Senieer equipment in food industry

Food

Application of Senieer equipment in cosmetic industry

Cosmetic

Application of Senieer equipment in nutraceutical industry

Nutraceutical

Application of Senieer equipment in chemical industry

Chemical

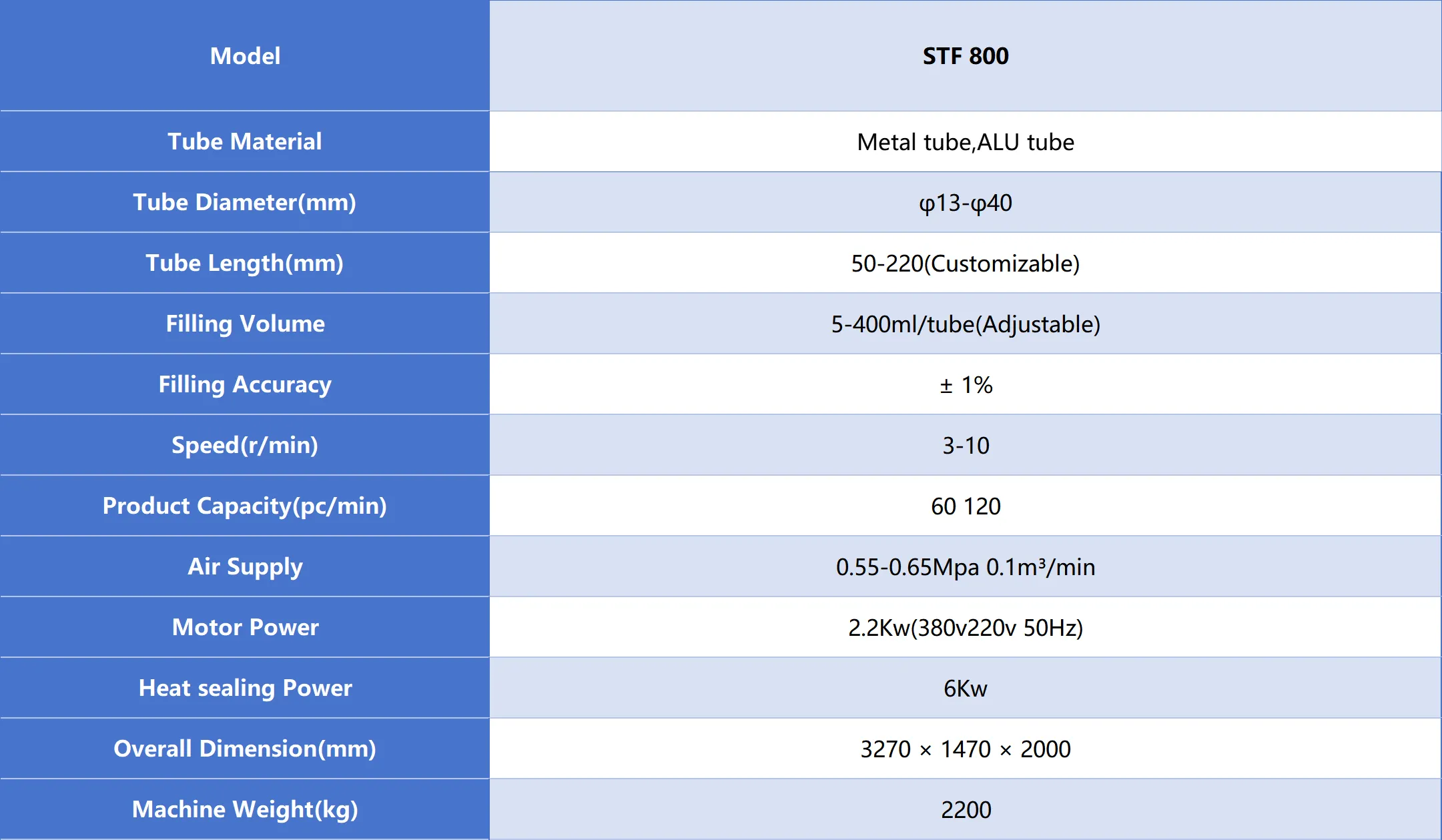

Technical Parameters of STF 800 Tube Filling Machine

technical parameters of stf 800 tube filling machine

Product Details of STF 800 Tube Filling Machine

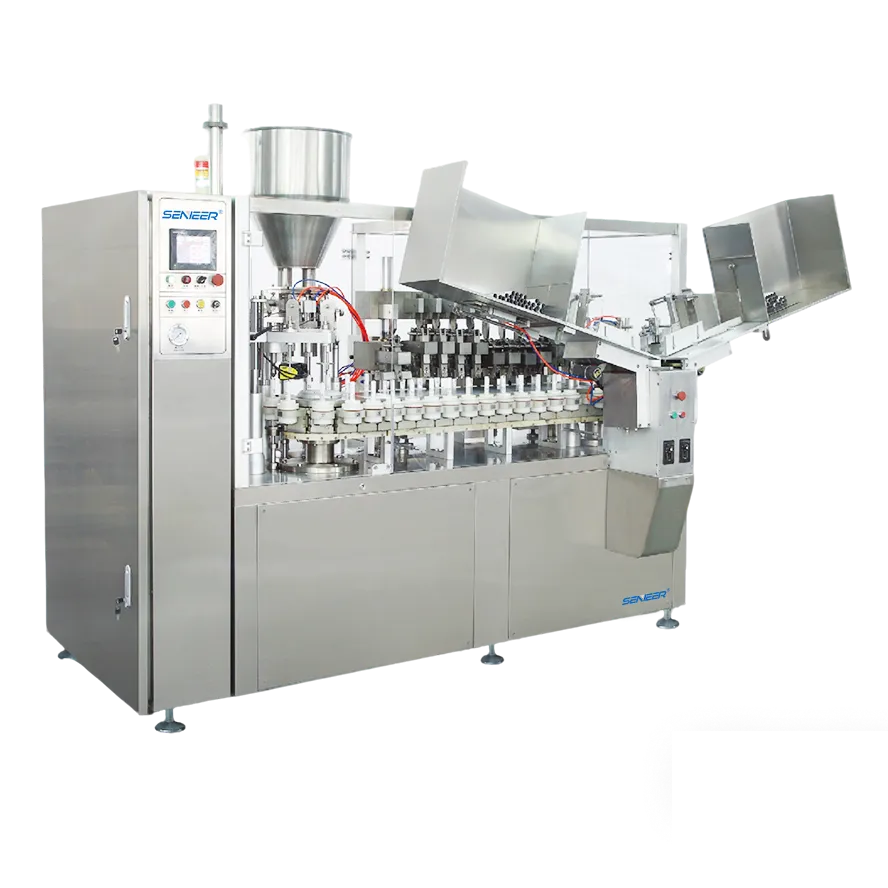

The STF 800 tube filling and sealing machine is a reliable, high-performance packaging device suitable for various industries such as cosmetics, pharmaceuticals, food, and daily necessities. It boasts an impressive production capacity of up to 120 tubes per minute, with a Filling Accuracy that can reach 99%.
The machine provides consistent sealing quality, minimizing material waste and ensuring product uniformity. Its adaptive design supports various tube materials, such as plastics, aluminum, and laminates, offering exceptional versatility.
The automated machine features an intuitive touchscreen human-machine interface for easy operation and quick parameter adjustments. Safety is paramount with multiple protection mechanisms, including an emergency stop button and overload alarm. Its compact design saves workshop space, provides stable performance, and reduces downtime and operating costs.

stf 800 tube filling and sealing machine

Current Product: STF 800 Tube Filling Machine

The STF 400 tube filling and sealing machine can greatly improve the filling efficiency and quality stability of soft tubes. The machine is equipped with advanced sensors and control systems, which ensure precise filling volumes and consistent sealing quality for each soft tube. Moreover, its user-friendly interface allows operators to easily set parameters and monitor the production process, further enhancing the overall operational efficiency. Our machinery plays a role in the United States, the United Kingdom, Puerto Rico, Canada, and other countries. We are waiting for your consultation.
