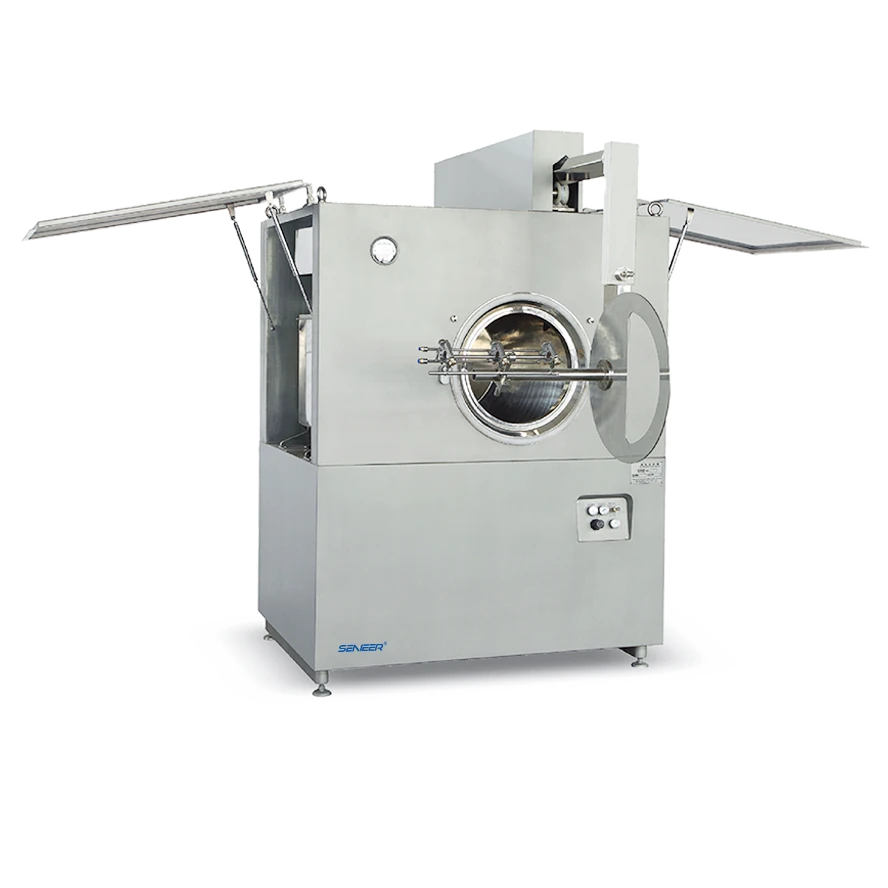

STC Series Tablet Coating Machine

High Drying Efficiency, Coats Evenly, Energy-Saving

STC Series Tablet Coating Machine

  • Model
  • Max. Capacity
  • STC Series
  • 40, 80, 150, 400

The STC series tablet coating machine, also known as a film coating machine, is primarily used in the fields of pharmaceuticals, food, and biological products. It can coat various tablets, pills, candies, and other products with organic films, water-soluble films, and ordinary sugar coatings, achieving the sustained release of drugs.

Request A Quick Quote

Product Features

  • The drug is completely isolated from the outside environment during the coating process, effectively avoiding drug contamination and meeting GMP requirements.
  • Film coating can be carried out continuously, with simultaneous spraying of coating medium, drying, and ventilation. The entire coating process can be completed in the same sealed container, greatly improving efficiency.
  • Material feeding and discharging can be completed automatically
  • A specially designed spray gun was used to improve the surface smoothness of the coating and enhance the coating quality.
  • Each system is processed and controlled by a computer and can operate automatically according to the process flow and the set optimal process parameters.
  • It is adopted with imported stainless steel, with an anti-explosion motor, frequency governor, with a cleaning device, computer control, controllable program function, and a touch screen display.

Application

Application of Senieer equipment in pharmaceutical industry

Pharmaceutical

Application of Senieer equipment in nutraceutical industry

Nutraceutical

Application of Senieer equipment in food industry

Food

Application of Senieer equipment in chemical industry

Chemical

Application of Senieer equipment in cosmetic industry

Cosmetics

Senieer icon

Animal

Other Models Of Tablet Coating Machine

STC Tablet Coating Machine
STC1
STC Tablet Coating Machine
STC10
STC Tablet Coating Machine
STC20

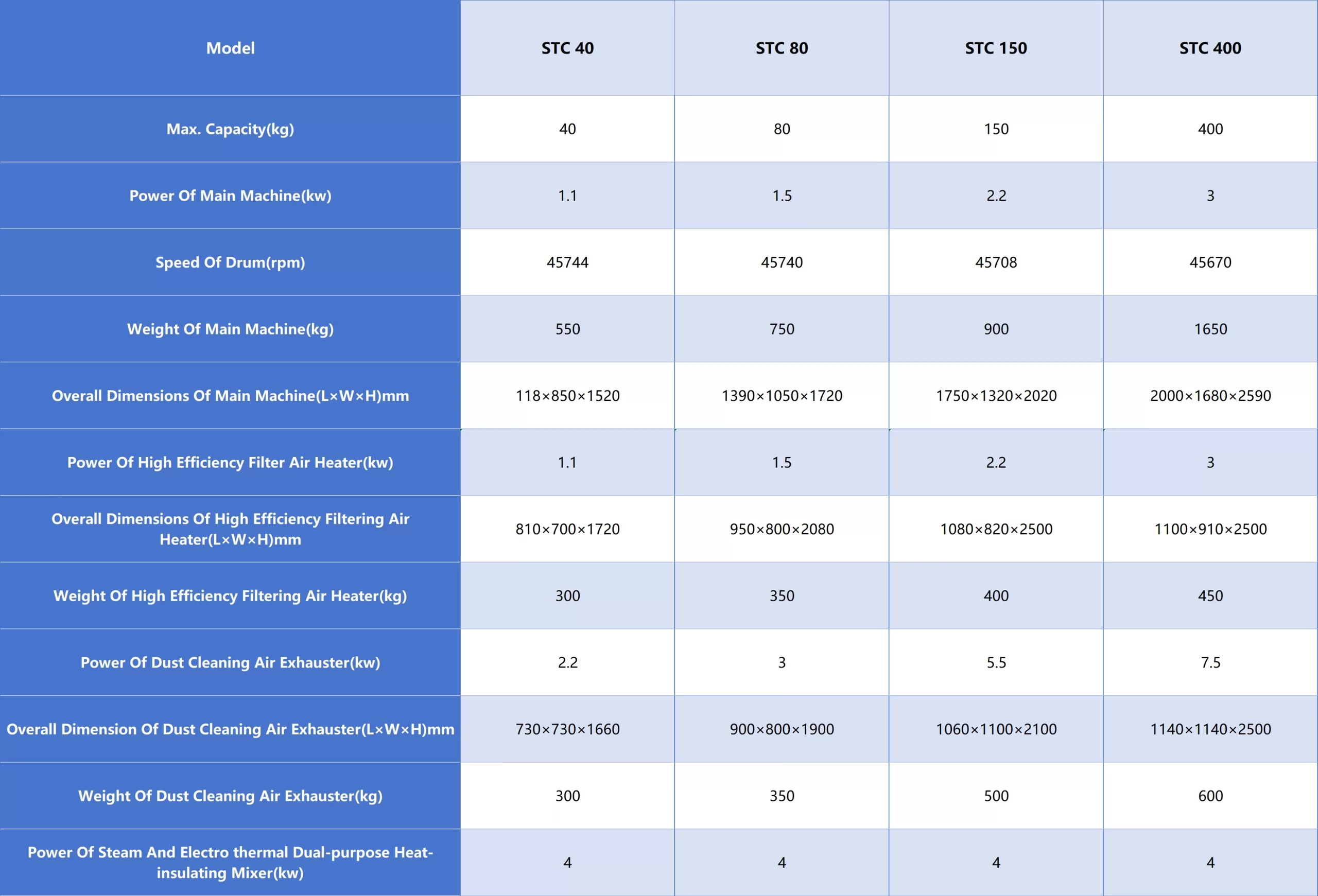

Technical Parameters Of STC Series Tablet Coating Machine​

technical parameters of stc series tablet coating machine​

STC Series Tablet Coating Machine : Product Description

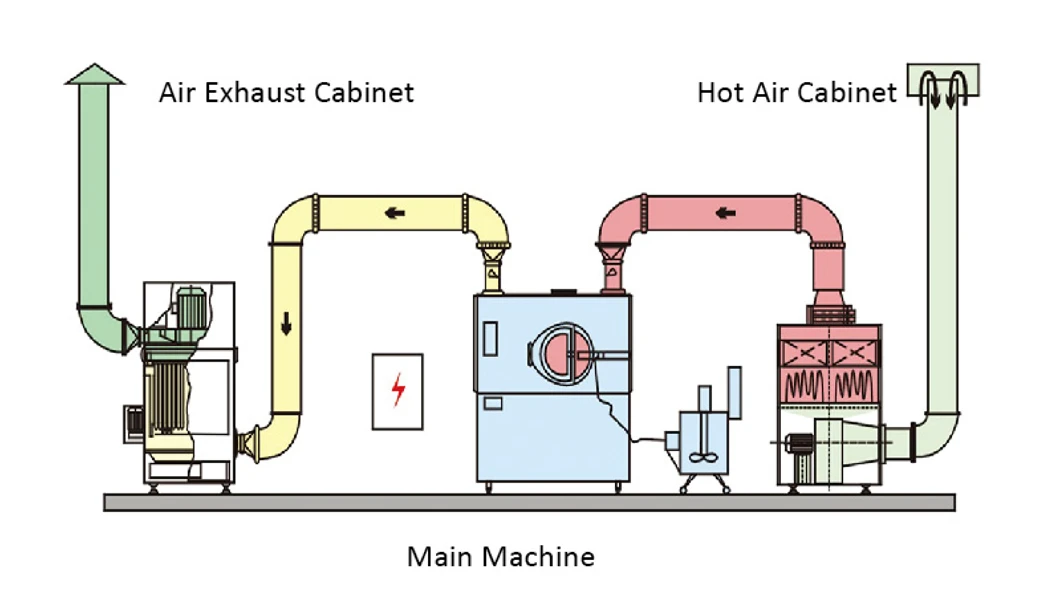

work principle of tablet coating machine
work principle of tablet coating machine

The tablet will make orbital motion continuously in a rotary drum sieve, which is clean and sealed, under the action of a plate mixer, turning freely, exchanging fluently, following the process flow and rational parameters, and coating automatically. While the hot air is drawn through the core and discharged from the bottom of the holes under the negative pressure of the air exhauster, to make the coating medium dry quickly, and the surface of the coating is firm and smooth.

The Atomizing Device is the core component of the coating machine, which is composed of a peristaltic pump, a high-pressure airless pump, a spray gun, a silicone rubber pipe, steam, and an electro-thermal double-purpose mixer. Senieer’s advanced atomization technology makes the coating liquid evenly dispersed on the surface of the tablet to form a perfect coating.

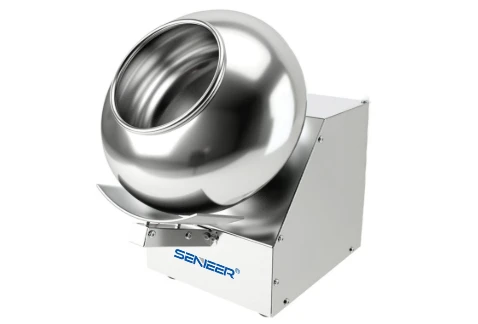

Sugar Coating Pan

Sugar coating pan structure is very simple. It is composed of a tilted cauldron body, which is sugar-coated by rolling the pot body and artificial spraying. The process cycle is long, dependent on labor, and does not meet the high standard GMP requirements.

Film Coating Machine(Tablet Coating Machine)

Inside a clean, sealed rotating coating pan, the tablet core continuously moves along a complex trajectory. The film medium is sprayed evenly onto the surface of the tablet core in a mist form through a spray gun. Filtered clean hot air supplied by a hot air cabinet penetrates the tablet bed, causing the coating medium sprayed onto the surface of the tablet core to dry rapidly.

Fluid Bed Coater

The FBG Fluid Bed Granulator is not suitable for tablet coating, but for coating granules, micro pill, and powders. The uniformity of micropill coating is the best in the industry, with a good fluidization effect and a very accurate release control technology.

There are 3 different spraying methods for the fluid bed coater.

  • Top Spray
  • Bottom Spray
  • Tangential Spray
film coating machine

Current Product: STC Series Tablet Coating Machine

The STC series tablet coating machine incorporates a new microcomputer and temperature control system, featuring a touchscreen display for simple operation. It is highly efficient, energy-saving, clean, and safe, making it widely used in medium to large-scale pharmaceutical factories. It is equipped with a PLC control system, which can accurately control air intake, heating temperature, rotation speed, and other parameters to meet your production needs. If you wish to know more, please contact us.
