Pharma Blister Packaging Line

All ALU, PVC/ALU, Double Detection, High Output

Pharma Blister Packaging Line

  • Model
  • SBL

This pharma blister packaging line is suitable for ALU-PVC packaging for medicines, especially capsules, tablets, and feeders, and the automatic cartoning machine inserts the blister and leaflet into the carton. The carton is sealed and marked with a batch number. An optional blister inspection machine, weight checker, bundling machine, carton open sealing machine, palletizing robots, and other components constitute a complete production line system.

Request A Quick Quote

Product Features

  • The blister depth is consistent, and the seal is complete, meeting GMP standards and relevant pharmaceutical industry requirements.
  • It can accurately adapt to the packaging needs of different specifications of drugs, whether it is common tablets, capsules, or irregular drugs, and can achieve efficient and stable aluminum-plastic or aluminum-aluminum packaging.
  • The automatic feeding system ensures continuous and accurate material supply, effectively avoiding errors and downtime caused by manual feeding.
  • The high-speed detection and rejection device can monitor the packaging quality in real time, automatically remove the unqualified products.
  • High-speed dual-lane and dual-storage flexible conveying system design for blister, which can save consumables, and it can reach fault chain protection and coordination.

Application

Application of Senieer equipment in pharmaceutical industry

Pharmaceutical

Application of Senieer equipment in nutraceutical industry

Nutraceutical

Application of Senieer equipment in food industry

Food

Application of Senieer equipment in cosmetic industry

Cosmetics

Application of Senieer equipment in chemical industry

Chemical

Senieer icon

Animal

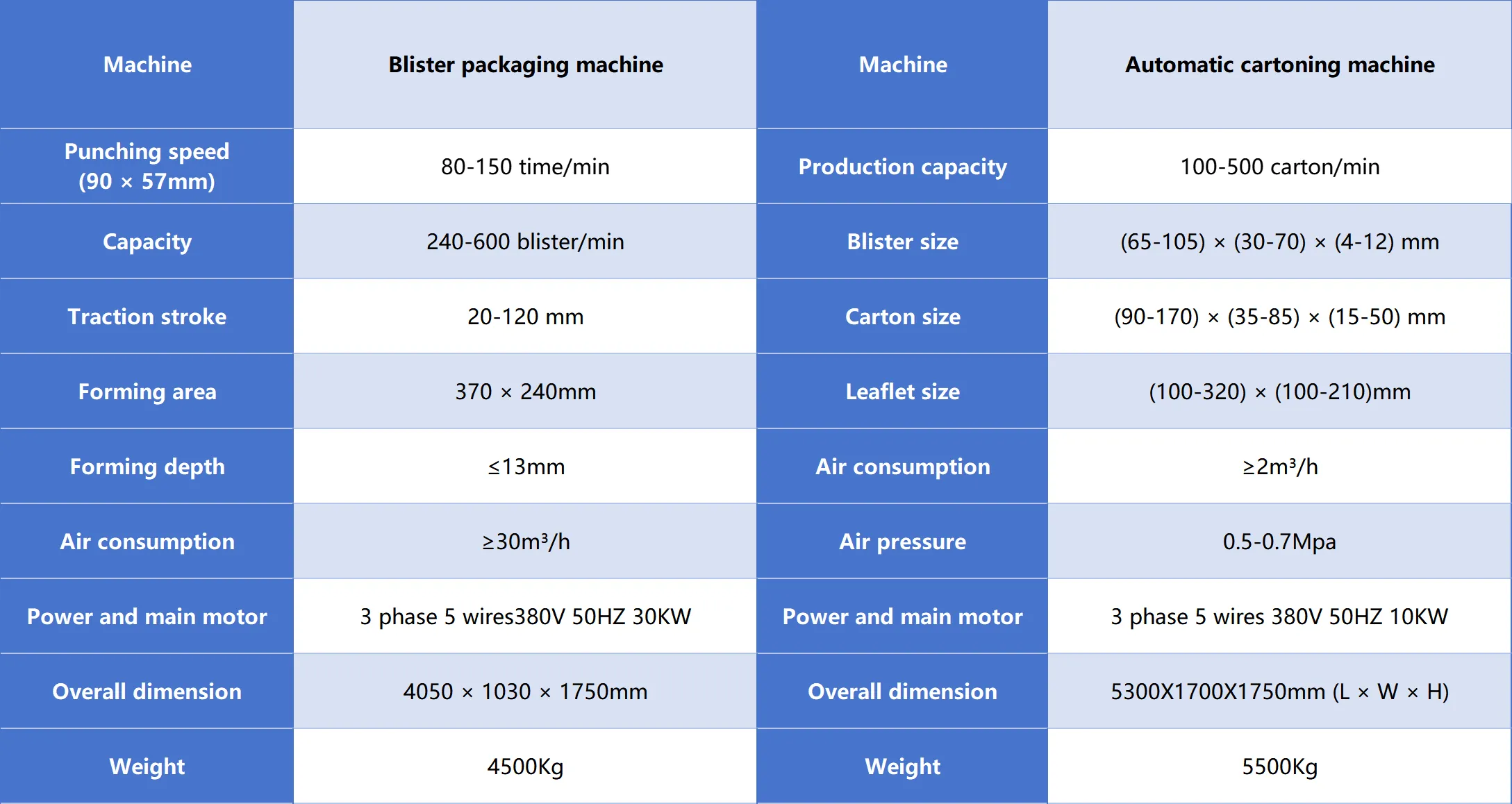

Technical Parameters Of Pharma Blister Packaging Line

technical parameters of pharma blister packaging line

Product Details of Pharma Blister Packaging Line

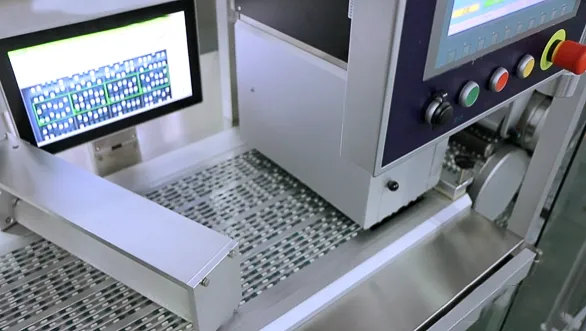

initial inspection of pharma blister packaging line

Initial inspection

Before sealing, compare with the products that have not yet been packaged one by one according to the pre-set standard pictures through the CCD visual inspection system. Once the missing, broken, repeated, bad blister, and other errors of the drug are detected, the error information can be sent to the PLC control system in time,  this part of the wrong drug will be eliminated during the shearing process, which is to ensure the stable quality of the pill and blister.

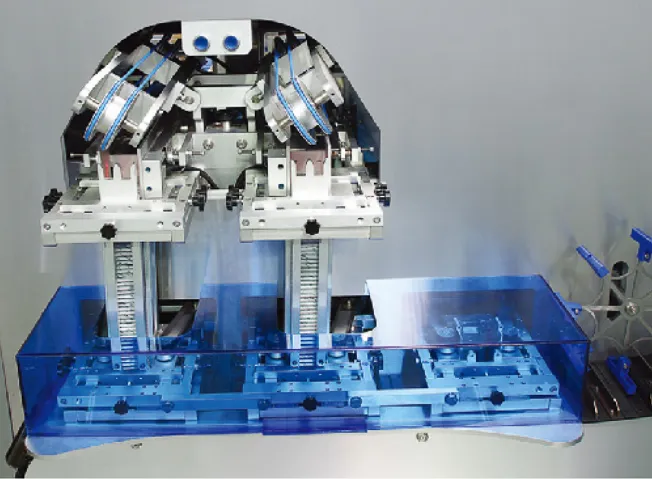

re-inspection of pharma blister packaging line

Re-inspection

This line is also equipped with a dual-channel inspector. After sealing, the formed blister plate will pass through two conveyor belts in parallel. As long as the blister board enters the channel, the photoelectric sensor is triggered to take a photo signal, so that the image acquisition data corresponds to each board, and the system will automatically compare the standard image detection. Unqualified blisters will be removed by pneumatic putter. This process is usually completed in a short time and will not affect the high-speed continuous operation of the production line.

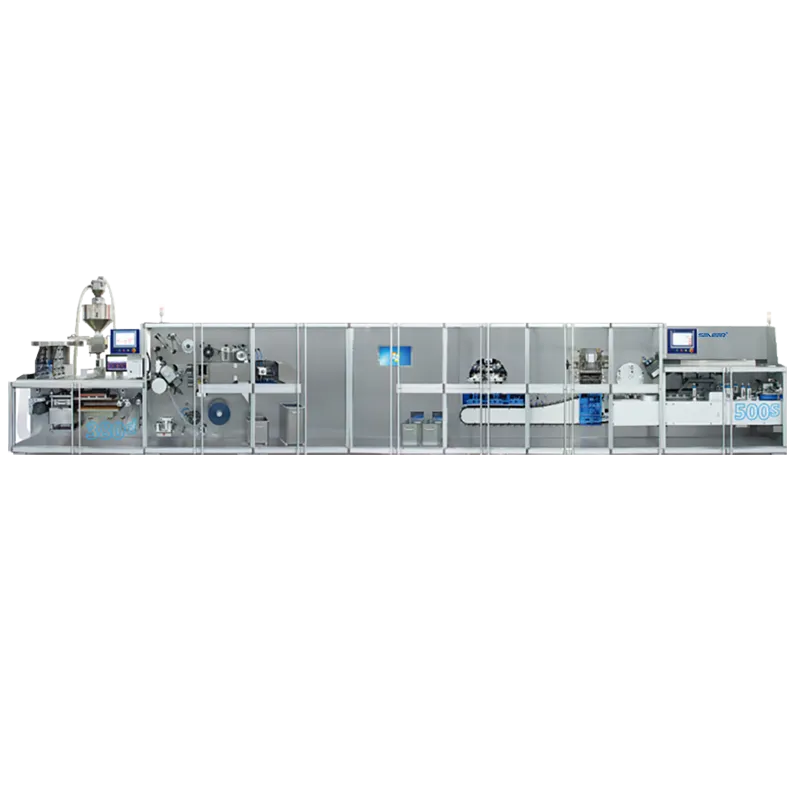

pharma blister packaging line

Current Product: Pharma Blister Packaging Line

The pharma blister packaging line is popular in high-end pharmaceutical production lines, medical device manufacturing workshops, and biological product research and development bases. This line adopts multiple inspection functions to ensure the integrity and uniformity of goods production, which can show the professional level of the company for large pharmaceutical companies. What’s more, thanks to dual-channel operation, it can also improve output under the premise of ensuring product quality. Feel free to contact us anytime.
