Lab Vacuum Emulsifying Mixer

Laboratory, Compact Size, Process Development & Scale Up

What Is a Lab Vacuum Emulsifying Mixer

  • Model
  • SVE 100

The lab vacuum emulsifying mixer is specifically designed for research laboratories, pilot plants, and small-batch production. Its agitator paddle and homogenizer are engineered to match the specifications of R&D production equipment, enabling reliable process testing and facility expansion. Featuring positive pressure and vacuum sealed lifting mechanisms, plus an integrated electrical control system on the operation panel, this lab mixer delivers all the functions of a production scale machine in a compact footprint.

Request A Quick Quote

Product Features

  • Production Matched Design– Homogenizer and paddle geometry replicate industrial units, ensuring that lab results can be directly scaled up to full production.
  • Compact & Powerful– Small footprint with full functionality, heating, cooling, vacuum, high shear homogenization, and mixing.
  • Vacuum & Pressure Capable– Vacuum degassing removes air bubbles, positive pressure sealing prevents contamination and enables clean operation.
  • Variable Parameter Control– All critical parameters (homogenizer speed, mixing speed, temperature, vacuum level) are continuously adjustable, providing maximum flexibility for formulation development.
  • Integrated Control Panel– All controls in one place (touch screen or button panel) with digital readouts of speed, temperature, time, and vacuum.

Application

Application of Senieer equipment in pharmaceutical industry

Pharmaceutical

Application of Senieer equipment in nutraceutical industry

Nutraceutical

Application of Senieer equipment in cosmetic industry

Cosmetic

Application of Senieer equipment in chemical industry

Chemical

7-6-home page food industry icon

Food

Senieer icon

Animal

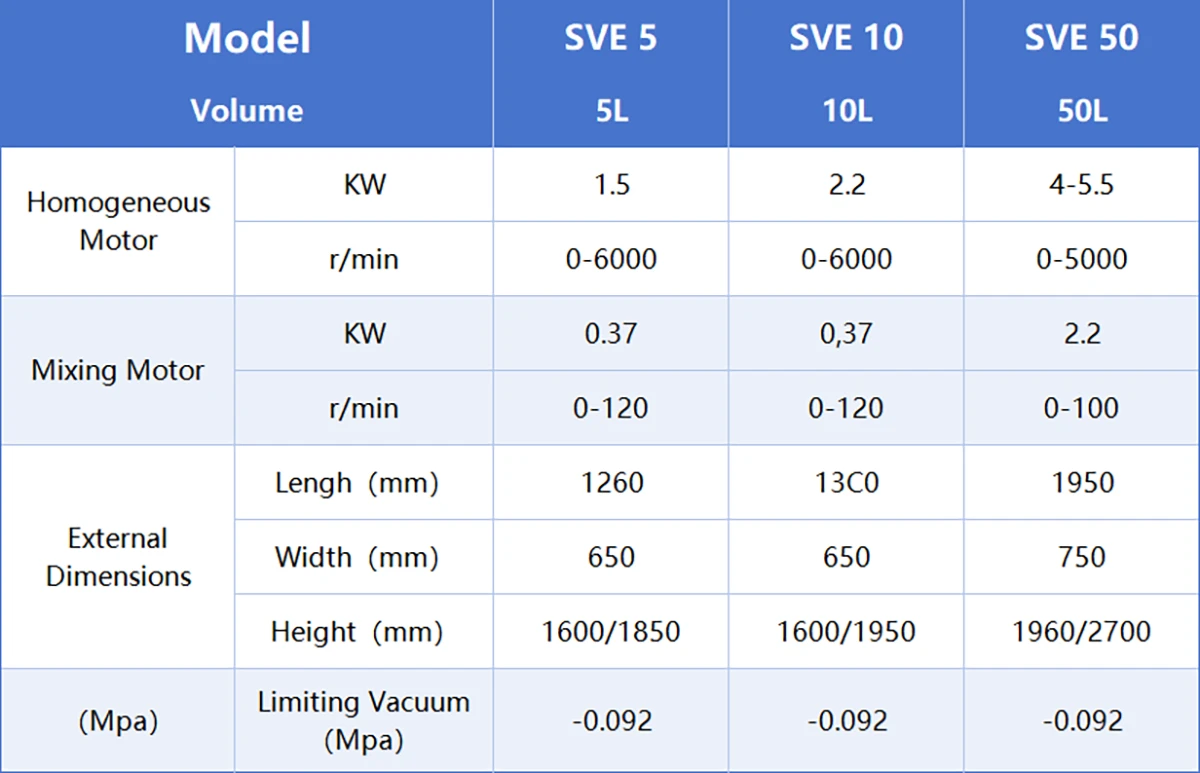

Technical Parameters of Lab Vacuum Emulsifying Mixer

technical parameters of lab vacuum emulsifying mixer

Product Details of Lab Vacuum Emulsifying Mixer

products of lab vacuum emulsifying mixer
products of lab vacuum emulsifying mixer
  • Viscosity range: 1,000 – 80,000 cps (centipoise), covering lowviscosity solutions to creams and pastes.
  • Batch size: from 5L to 100L (depending on model). Minimum working volume as low as 30% of total tank capacity, enabling small recipe trials.
  • Cosmetic creams and lotions (R&D)
  • Pharmaceutical ointments and gels (pilot batches)
  • Food emulsions (mayonnaise, dressings – small scale)
  • Chemical dispersions and nano emulsions
  • Vaccine adjuvants and biological formulations
  • Scale up parameter determination

Laboratory work demands precision, repeatability, and a clear path to production. Senieer’s lab vacuum emulsifying mixer is built to bridge the gap between beaker scale experiments and industrial manufacturing.

  • Direct scale up– Geometric and dynamic similarity to production machines ensures seamless technology transfer.
  • Complete documentation– Validation protocols, IQ/OQ support, and material certificates available.
  • Flexible configurations– Choose different homogenizer heads (slotted, fine, extrafine), scraper types, and heating methods (electric, steam, oil).
  • Easy cleaning– Disassembles quickly; all contact parts in 316L stainless steel.
  • Process reproducibility– PLC with recipe storage allows you to save and recall exact parameters for each formulation.

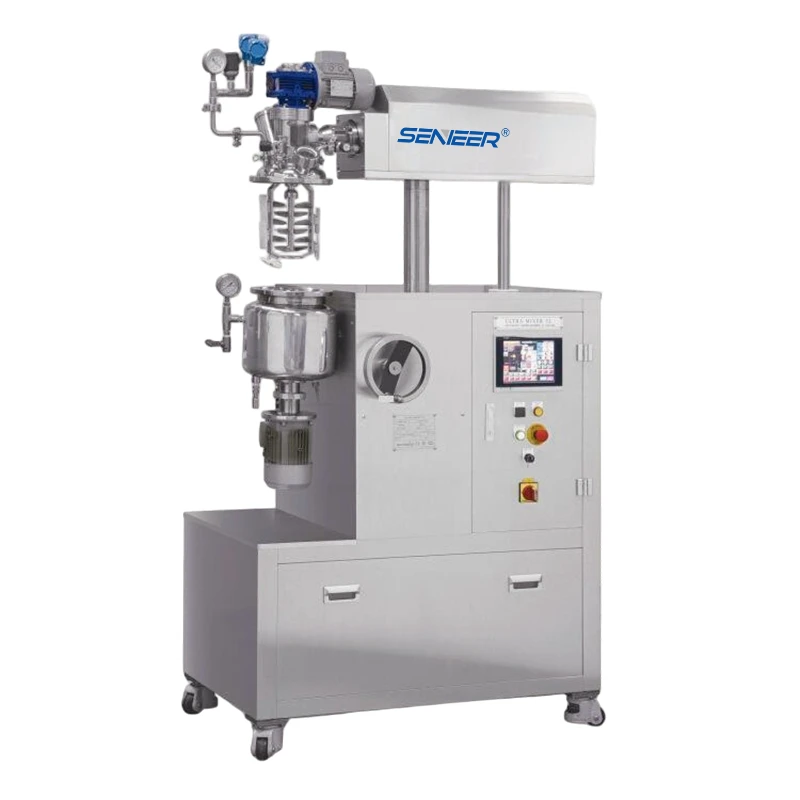

lab vacuum emulsifying mixer

Current Product: Lab Vacuum Emulsifying Mixer

The lab vacuum emulsifying mixer is an advanced benchtop or floor standing system designed for the development and small scale production of emulsions, creams, gels, suspensions, and ointments. Unlike ordinary laboratory stirrers, this unit integrates high shear rotor stator homogenization, vacuum deaeration, scraped surface mixing, and a jacketed heating/cooling vessel into one closed system. It allows researchers to precisely control particle size, texture, and stability while generating reliable data that predicts full scale manufacturing behavior.

Contact us to discuss your required volume, formulation type, and desired automation level
