STF 400 Tube Filling Machine

Safety process , Precise filling and flexible sealing, Wide Adaptability

STF 400 Tube Filling Machine

  • Model
  • Tube Material
  • Tube Diameter(mm)
  • Product Capacity(pc/min)
  • Heat Sealing Power
  • Overall Dimension(mm)
  • Machine Weight(kg)
  • STF 400
  • Metal tube,ALU tube
  • φ12-φ42
  • 30-70(Adjustable)
  • 3Kw
  • 2623×1020×1980
  • 1100

The STF 400 tube filling machine, also known as the tube filling and sealing machine, is primarily used for filling and sealing creams, lotions, liquids, and semi-liquids into soft tubes. It features a 12-station design that ensures all processes operate consistently without wasting process time.

Additionally, the machine is equipped with mechanical, photoelectric, electric, and pneumatic integrated control systems, achieving a no-tube-no-filling function. This machine is widely applicable to cosmetics, medicine, food, and daily necessities, and meets various packaging requirements.

Request A Quick Quote

Product Features

  • Meet GMP and relevant international industry standards.
  • Ensure precise putout and minimize waste.
  • High-grade operation screen with LCD and PLC control, easy operation, and more humanization
  • Adjustment parts are externally positioned, featuring a digital display for convenient and accurate adjustment (suitable for variable product production).
  • If the Tube error is positioned or the pressure is too low, it will automatically stop while opening the protective door.

Application

Application of Senieer equipment in pharmaceutical industry

Pharmaceutical

Application of Senieer equipment in food industry

Food

Application of Senieer equipment in daily necessities industry

Daily Necessities

Application of Senieer equipment in chemical industry

Chemical

Application of Senieer equipment in cosmetic industry

Cosmetic

Application of Senieer equipment in nutraceutical industry

Nutraceutical

Technical Parameters of STF 400 Tube Filling Machine

technical parameters of stf 400 tube filling machine

Product Details of STF 400 Tube Filling Machine

A tube filling machine operates on the principle of precise and automated tube filling. It consists of a tube holder, filling system, sealing mechanism, and control panel. The process begins with placing empty tubes in the holder, which are then fed through the machine. The filling system accurately dispenses the desired product, such as cream or gel, into the tubes.

Next, the sealing mechanism seals the filled tubes to ensure product integrity. The control panel regulates the speed, volume, and other parameters. By combining these components, the tube filling machine efficiently and consistently fills and seals tubes, facilitating the packaging of various products.

  • Automated operation enables filling of 30 to 70 hoses per minute, far exceeding manual filling speed and making it suitable for medium production.
  • Controlled by mechanical or electronic systems, the filling volume error can be kept within ±1%, ensuring consistent capacity for each product and enhancing product standardization.
  • Parts in contact with materials are mostly made of 304 stainless steel or food-grade materials, which are easy to clean and disinfect. It meets the hygiene standards of food, pharmaceutical, cosmetics, and other industries, and avoids pollution risks caused by manual operation.
  • Compatible with hoses of different materials (plastic, aluminum) and specifications (diameter, length), it can fill various materials such as ointments, liquids, and gels, meeting the production needs of multiple product categories

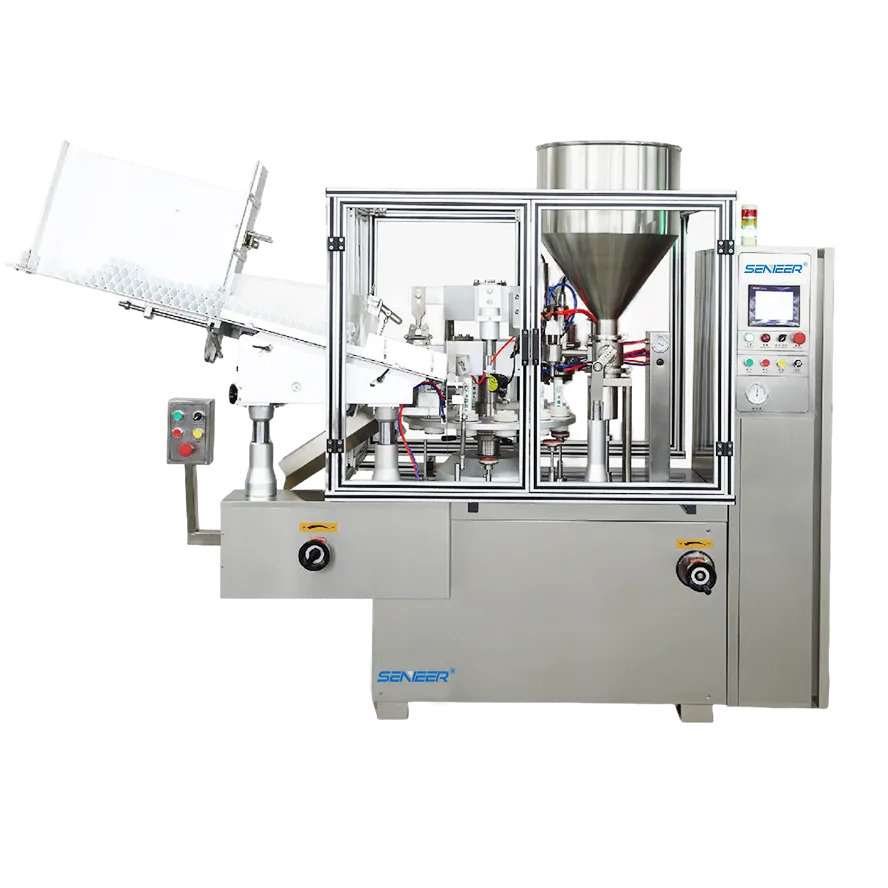

stf 400 tube filling and sealing machine

Current Product: STF 400 Tube Filling Machine

The STF 400 tube filling and sealing machine can greatly improve the filling efficiency and quality stability of soft tubes. The machine is equipped with advanced sensors and control systems, which ensure precise filling volumes and consistent sealing quality for each soft tube. Moreover, its user-friendly interface allows operators to easily set parameters and monitor the production process, further enhancing the overall operational efficiency. Our machinery plays a role in the United States, the United Kingdom, Puerto Rico, Canada, and other countries. We are waiting for your consultation.
