Food Processing Hammer Mill

Q: Hammer Mill Principle

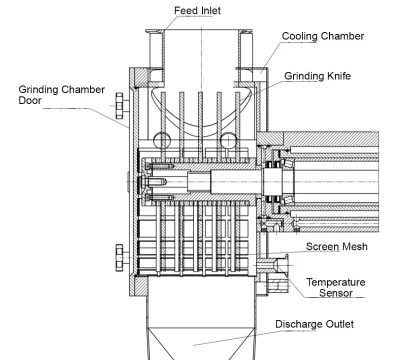

Hammer Mill Diagram The hammer mill uses an electric motor to drive the rotor at high speed, causing the hammer heads on the rotor to rotate accordingly. Material enters the crushing chamber through the feed opening, which is impacted and crushed by the high-speed rotating hammer heads. The hammer heads use impact force to crush the material into smaller particles. The crushed material is then thrown against the impact plates in the crushing chamber, where it is further impacted and crushed by the hammer heads until the desired particle size is achieved. Finally, the crushed material is discharged from the crushing chamber through the discharge opening and proceeds to the next processing stage or collection.Process flowFeeding → Crushing → Screening → Discharge

Q: Why Food Processing Needs a Dedicated Hammer Mill

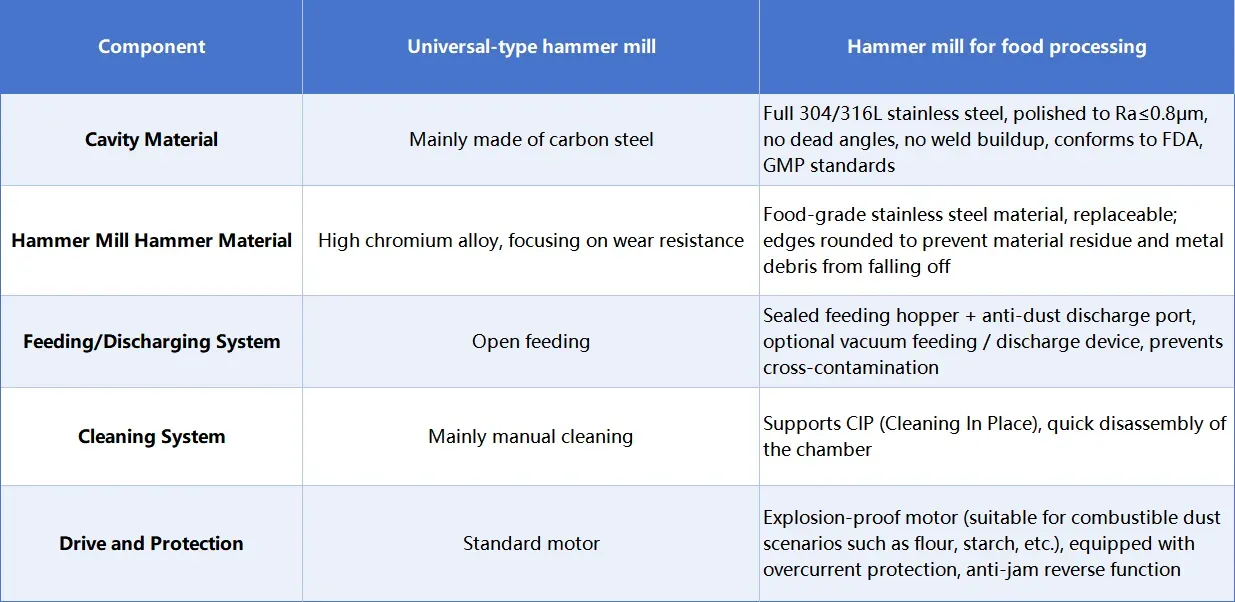

Problems you may encounter during processingCross – contamination riskDifficult cleaning in conventional hammer millsHeat – sensitive food degradationMetal debris contamination risk Universal-type hammer mill vs Food processing hammer mill Compared to the general hammer mill, the food-grade hammer mill has a more exclusive structural design to better adapt to the problems of food spoilage, pollution, difficult cleaning, uneven crushing, and heat-induced deterioration faced in the food processing industry. This is exactly why we designed this food-grade hammer mill.

Q: Hammer Mill Maintenance

1. Routine maintenanceClean up residual materials daily to avoid cross-contamination (especially in the food industry, strict hygiene standards are required).Check the wear of the hammer and screen, and replace damaged parts in time.Lubricate bearings and transmission parts regularly to reduce wear. Check bolt tightness to prevent vibration or noise caused by loosening.2. Regular maintenance (according to frequency of use)hammer mill wear parts replacement:Hammer blade: replaced every 500-2000 hours according to the material (such as carbon steel, stainless steel) and material hardness.Screen: Check the aperture for distortion or cracking to ensure uniform particle size.Bearings: Replace every 5000 hours or annually to prevent overheating or jamming.Drivetrain inspection: Belt/chain tension adjustment to avoid slipping or breaking.Motor current monitoring to prevent overload.

304 / 316L stainless steel,GMP & FDA-compliant design,customized according to actual needs

Food Processing Hammer Mill

Details

Food processing hammer mill is an impact crusher equipment designed for food characteristics, adopting 304/316L stainless steel (custom). The crushing process utilizes a high-speed rotating hammer to break, cut, and grind food materials, and the resulting crushed materials are filtered through a screen to obtain the ideal product. Its design fully meets the hygienic requirements and GMP standards in the food industry.

Product Features

No pollution, meet the food grade specification.
The screen can be customized.
Easy to disassemble, easy to clean.
Continuous crushing with short downtime.
Low heat generation.
Stable long-term operation.
No dead corners.

Application

Other Models Of Hammer Mill

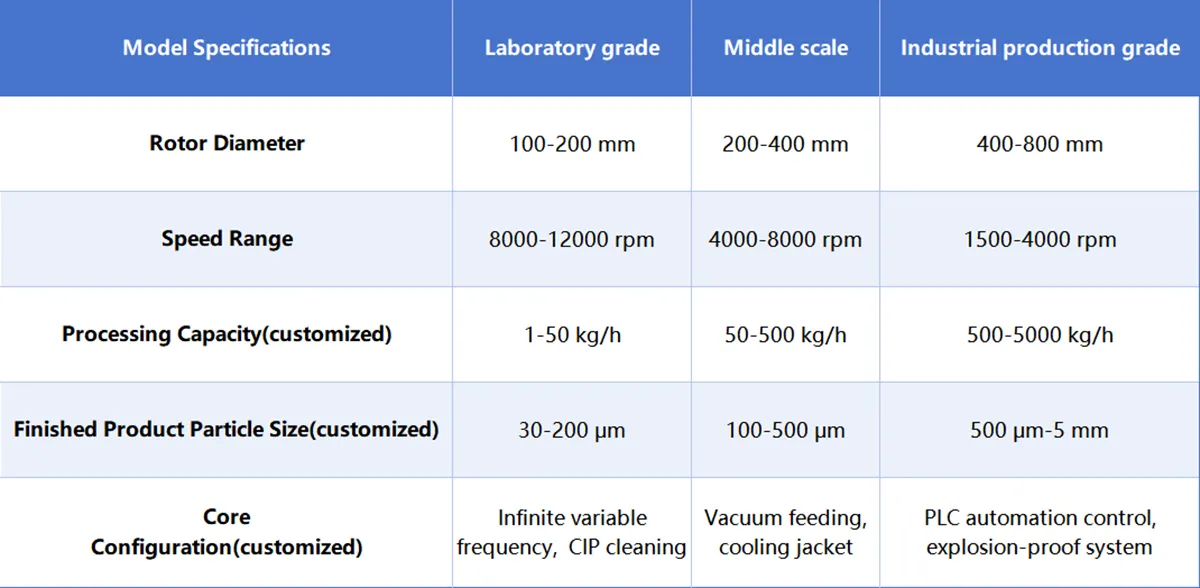

Technical Parameters Of Food Processing Hammer Mill

Food Processing Hammer Mill : Product Description

Hammer Mill Principle

The hammer mill uses an electric motor to drive the rotor at high speed, causing the hammer heads on the rotor to rotate accordingly. Material enters the crushing chamber through the feed opening, which is impacted and crushed by the high-speed rotating hammer heads. The hammer heads use impact force to crush the material into smaller particles. The crushed material is then thrown against the impact plates in the crushing chamber, where it is further impacted and crushed by the hammer heads until the desired particle size is achieved. Finally, the crushed material is discharged from the crushing chamber through the discharge opening and proceeds to the next processing stage or collection.

Process flow

Feeding → Crushing → Screening → Discharge

Why Food Processing Needs a Dedicated Hammer Mill

Problems you may encounter during processing

Cross – contamination risk
Difficult cleaning in conventional hammer mills
Heat – sensitive food degradation
Metal debris contamination risk

Compared to the general hammer mill, the food-grade hammer mill has a more exclusive structural design to better adapt to the problems of food spoilage, pollution, difficult cleaning, uneven crushing, and heat-induced deterioration faced in the food processing industry. This is exactly why we designed this food-grade hammer mill.

Hammer Mill Maintenance

1. Routine maintenance
Clean up residual materials daily to avoid cross-contamination (especially in the food industry, strict hygiene standards are required).
Check the wear of the hammer and screen, and replace damaged parts in time.
Lubricate bearings and transmission parts regularly to reduce wear. Check bolt tightness to prevent vibration or noise caused by loosening.
2. Regular maintenance (according to frequency of use)
hammer mill wear parts replacement:
Hammer blade: replaced every 500-2000 hours according to the material (such as carbon steel, stainless steel) and material hardness.
Screen: Check the aperture for distortion or cracking to ensure uniform particle size.
Bearings: Replace every 5000 hours or annually to prevent overheating or jamming.
Drivetrain inspection: Belt/chain tension adjustment to avoid slipping or breaking.
Motor current monitoring to prevent overload.

Current Product: Food Processing Hammer Mill

Food processing has extremely high requirements for the environment and hygiene. As a top hammer mill manufacturer, Senieer developed this hammer mill specially for the food industry. It is durable and strictly implements GMP standards. It is an ideal choice for food production and processing.

It is widely used in North America, Brazil, Argentina, Vietnam, and other agricultural countries. It has passed the harsh production environment verification in many countries in North America, South America, and Southeast Asia. With over 37 years of crushing expertise, Senieer delivers global technical support to fulfill customized needs, conduct sample testing, and provide turnkey solutions.

Are you interested in this equipment? Welcome to contact us at any time, we provide professional technical support.
