FBG Series Fluid Bed Granulator

Automated Control, High-Efficiency, Flexible Adjustment

FBG Series Fluid Bed Granulator

  • Model
  • FBG series

The FBG series fluid bed granulator integrates mixing, drying, coating, granulation, and other technologies, which are suitable for a variety of powders. Turn the powder with high accumulation into smooth particles to facilitate the subsequent processing of the product. The design allows efficient heat and mass transfer, reducing processing time while maintaining high energy efficiency. Its closed system minimizes dust emission and cross-contamination, ensuring compliance with GMP standards.

Request A Quick Quote

Product Features

  • The powder granulation process enhances flowability and reduces dust dispersion.
  • It improves solubility through granulation while integrating mixing, granulation, and drying into a single-step operation.
  • The equipment features anti-static filter cloth for safe operation and pressure relief vents to prevent personnel injury in case of explosions.
  • With no dead zones, it enables quick and easy material handling, thorough cleaning, and full compliance with GMP standards.

Application

Application of Senieer equipment in pharmaceutical industry

Pharmaceutical

Application of Senieer equipment in food industry

Food

Application of Senieer equipment in nutraceutical industry

Nutraceutical

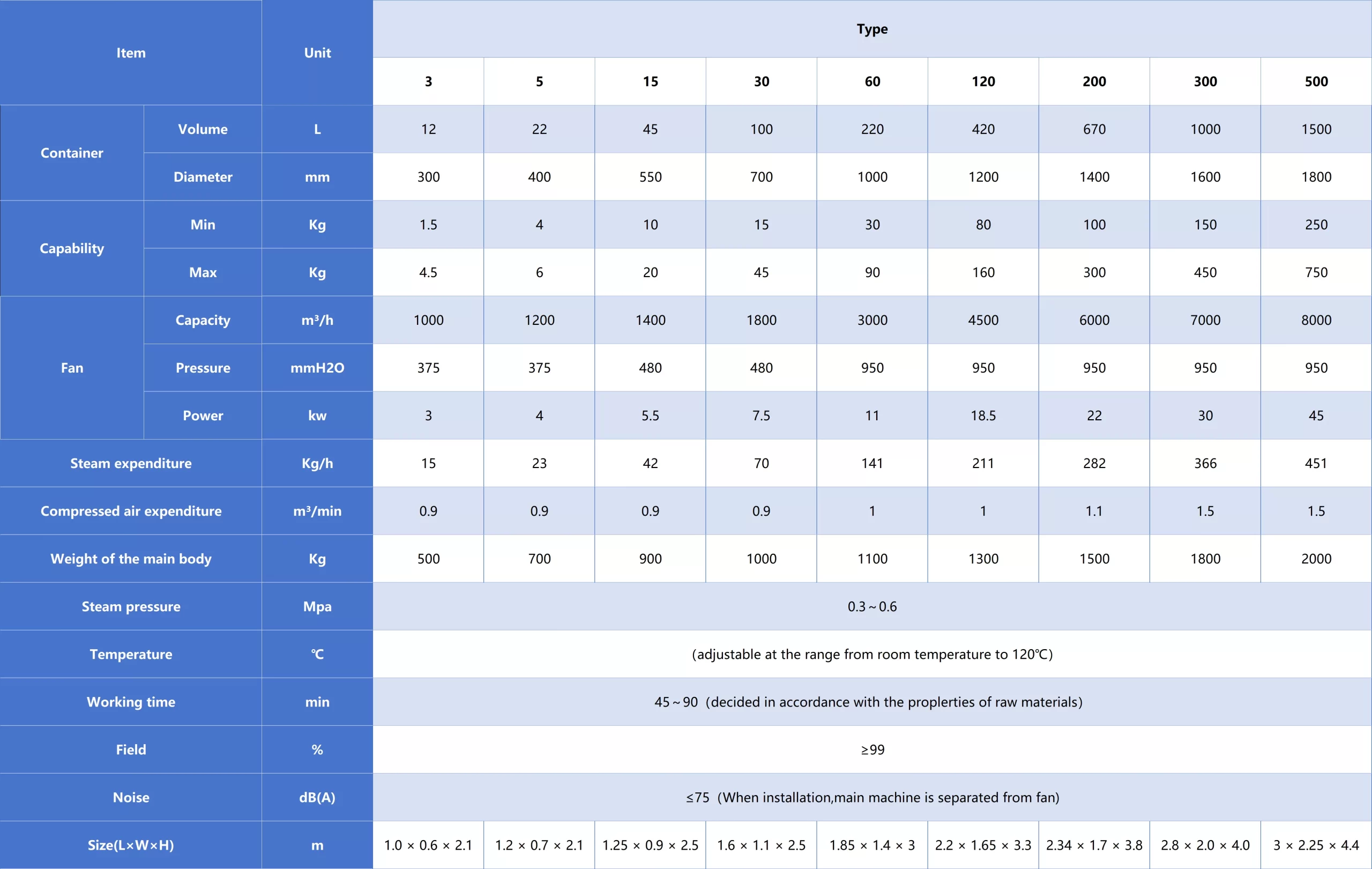

Technical Parameters of FBG Series Fluid Bed Granulator

technical parameters of fbg series fluid bed granulator

Product Details of FBG Series Fluid Bed Granulator

fluid bed granulator working principle

In the fluidized bed, the material particles flow in a ring-like pattern. They are preheated and mixed with purified heated air, while the adhesive solution is atomized and sprayed in. This process causes particles to aggregate into adhesive-filled pellets. As the hot air continuously dries the material, moisture evaporates from the pellets, and the adhesive solidifies. This cycle repeats, ultimately forming ideal, uniform, and porous particles.

Granulation In The Pharmaceutical Industry:

  • Ablet Granules
  • Powder Granules
  • Capsule Granules

Granulation In The Food Industry:

  • Cocoa
  • Coffee
  • Milk Powder
  • a Granulated Fruit Juice
  • Seasonings

Fluid Bed Granulator In Coating:

  • Pill Protective Layer
  • Color Preparation
  • Slow Release
  • Bowel-Dissolve Coating

Granulation In Other Industries:

  • Pesticides
  • Feed
  • Fertilizers
  • Pigments
fbg series fluid bed granulator

Current Product: FBG Series Fluid Bed Granulator

Senieer possesses a mature fluid bed granulation industry process that ensures uniform particle size distribution and enhances product flowability, making it ideal for pharmaceutical, food, and chemical industries. Furthermore, we can customize your machine to meet your desired granulation size, coating requirements, water content, and other specifications. Let’s work together to customize your fluid bed granulator.
