STP265 Tablet Press Machine

High Speed And Precise Tablet Pressing, Low Maintenance, No Dust Leakage.

STP265 Tablet Press Machine

  • No. of punch
  • Type of die
  • Output
  • Rotation speed
  • Max tablet diameter
  • Main motor power
  • Weight
  • Dimension
  • 16, 23, 30
  • D, B, BB
  • 21000-198000pcs/h
  • 22-110rpm
  • 25mm
  • 5.5kw(customizable)
  • 1200kg
  • 700×1000×1750mm

Tablet press machine(or tablet compression machine) is an industrial equipment design for the compression of powder into tablets shape and is widely used in pharmaceutical, food, nutraceutical and other related industries. As one of the most used oral solid dosage(OSD) form, tablets are commonly and widely used in people’s daily life. So the needs for it is also increasing now. Our STP265 Tablet Press Machine is a high speed tablet compression equipment whose production speed ranges from 21000 pieces/h to 198000pcs/h, meeting medium and large scale of production needs. It adopts touch scree and PLC control, operation is convenient and easy. The unique design ensures there is no dust leakage and cross contamination. The quantity of punch of this series include16, 23, 30.

Request A Quick Quote

Product Features

  • Production speed ranges from 21000 to 198000 tablets per hour.
  • Touchscreen and PLC control makes operation easy.
  • Automatic breakdown display function.
  • Automatic stopping and alarm system.
  • No dust leakage and accumulation problem.
  • Fully contained structure design ensures hygienic standard.
  • Meet with GMP and related standards.

Application

Application of Senieer equipment in pharmaceutical industry

Pharmaceutical

Application of Senieer equipment in nutraceutical industry

Nutraceutical

Application of Senieer equipment in food industry

Food

Application of Senieer equipment in chemical industry

Chemical

Application of Senieer equipment in cosmetic industry

Cosmetics

Senieer icon

Animal

Other Models of Tablet Press Machine

stp280 tablet press machine-1

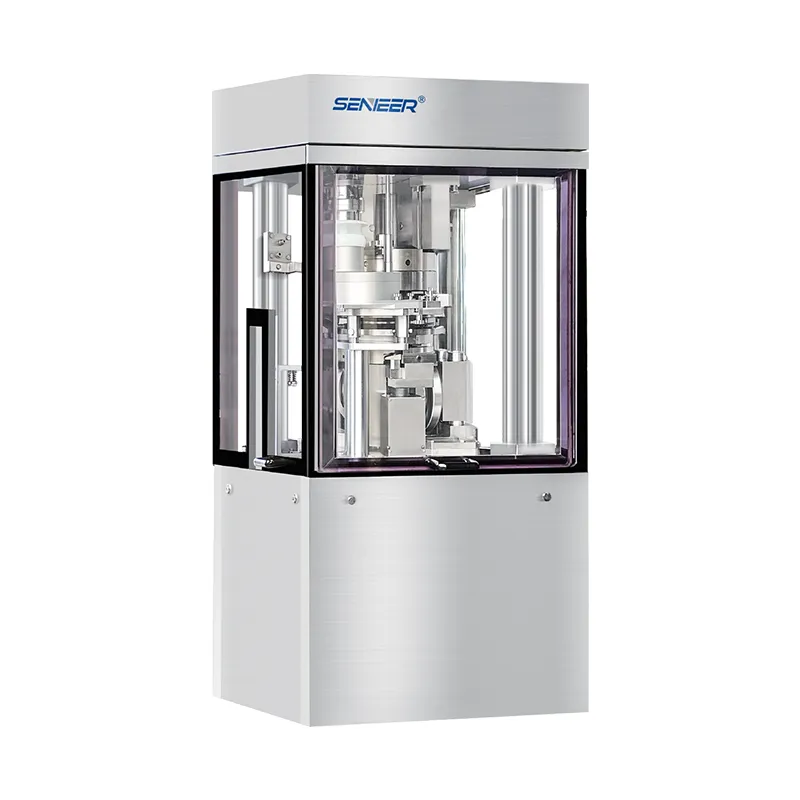

STP280 Tablet Press Machine
pharmaceutical tablet press machine-1

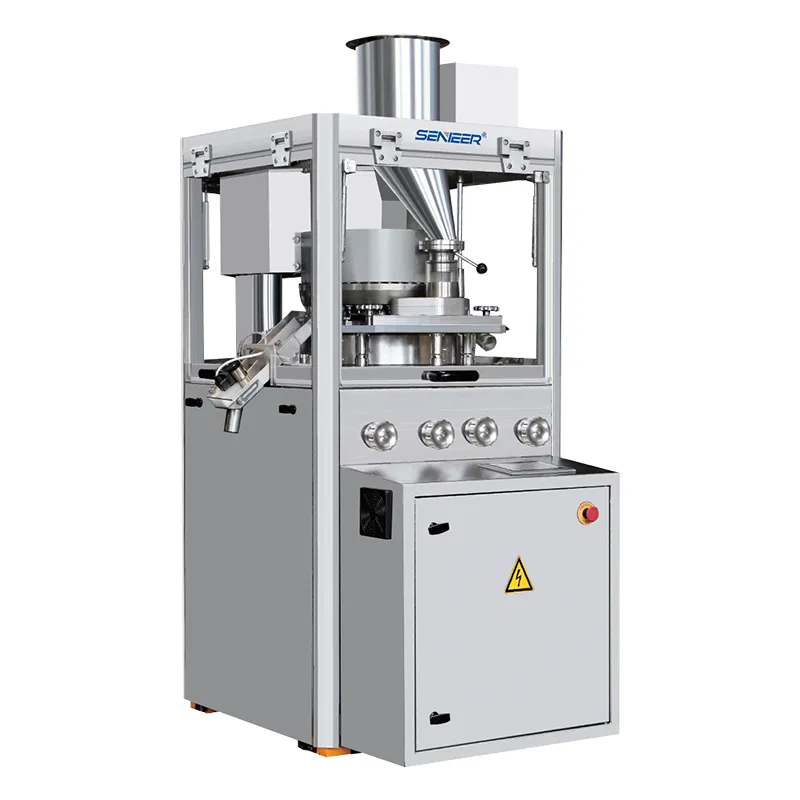

Pharmaceutical Tablet Press Machine
automatic tablet press machine-1

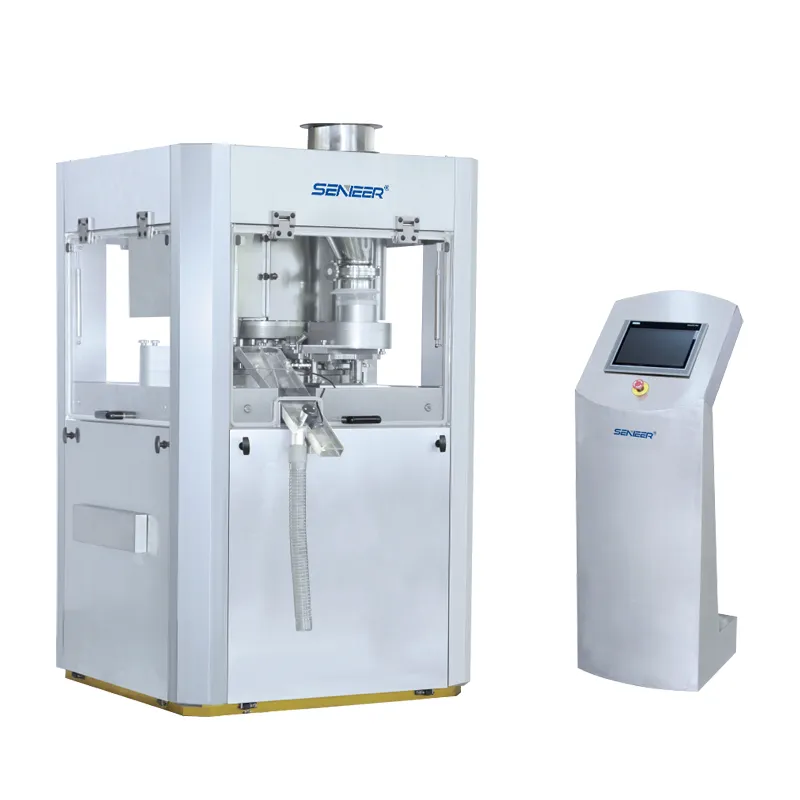

Automatic Tablet Press Machine

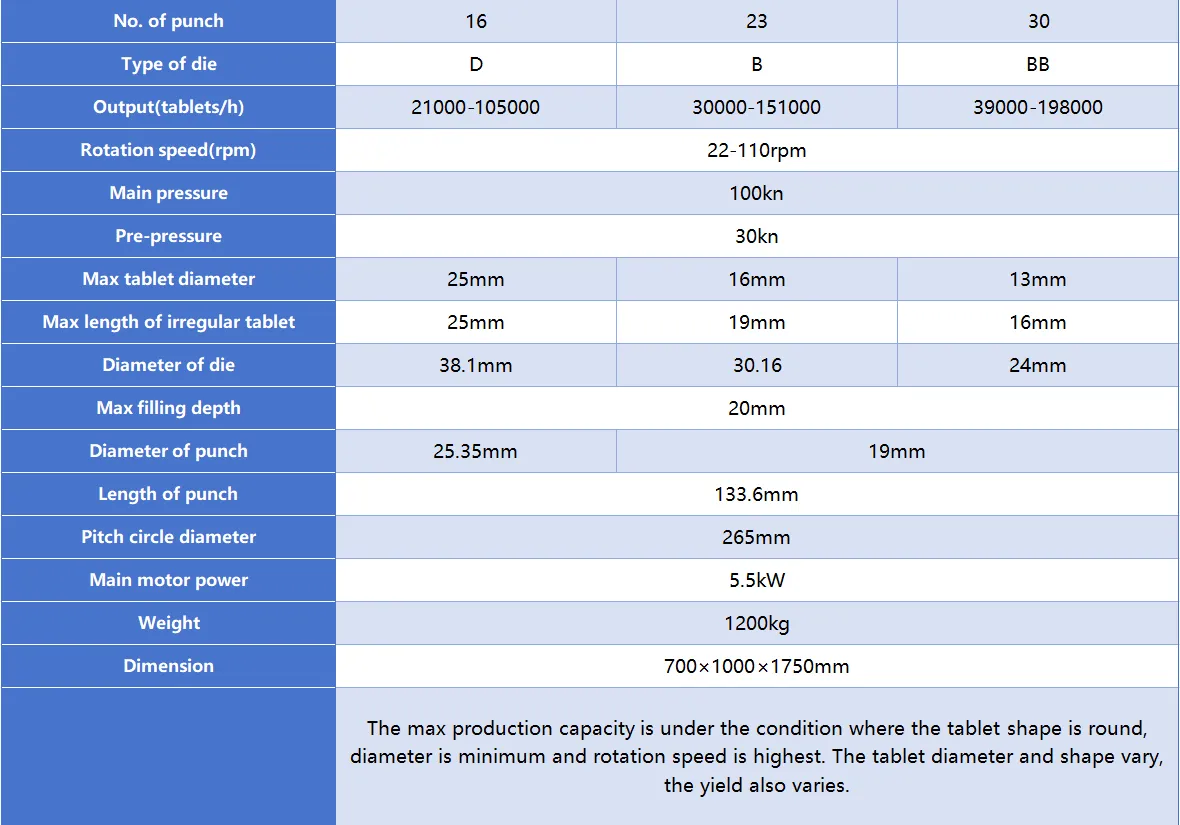

Technical Parameters of STP265 Tablet Press Machine

technical parameters of stp265 tablet press machine

Product Details of STP265 Tablet Press Machine

STP265 Tablet Press Machine is a high speed tablet press machine that are used to compress powders into various shapes of tablets. This industrial equipment is widely adopted in the pharmaceutical and nutraceutical industries nowadays.

The tableting process briefly includes two steps. First, the lower punch enters into the pie to create a cavity and powder are filled into it. Then, the upper punch are down into the die. After the high pressure, the tablets are formed. After that, the lower punches will eject the formed tablets out.

  • The main motor and feeder motor can be variable frequency adjustment.
  • The rotation speed can be continuously adjustable.
  • Flexible feeding, dust reduce and no cross contamination: the contained double impellers force feeding, which solves the problems of insufficient gravity feeding of ordinary tablet press machine and excessive dust and cross contamination.
  • High utilization rate of materials: the function of powder scraper and the clearance fit between the surface of feeder base plate and the upper surface of middle punch plate, make the powder leakage and throwing no logger happen.
  • Suitable for the tablet compression of raw powder and superfine materials.
  • Automatic adjustment of tablet gravity, achieving the automatic compensation of drug powder.
  • Two types of ejection channels: finished and scrap channels. The scrap tablets can be removed automatically.

Tablet press machine can approximately divided into two types: single-punch and rotary type.

Single-Punch Tablet Press Machine

The single punch tablet press machine is different from rotary tablet press machine. It adopts single die and punch to form tablets, which is suitable for the small production or lab research application.

Rotary Tablet Press Machine

The rotary type has multiple sets of dies and punches that are distributed on the round turnable station. It is suitable for large scale production needs and the quantity of dies and punches can be reduced or added according to client’s needs.

stp265 tablet press machine-1

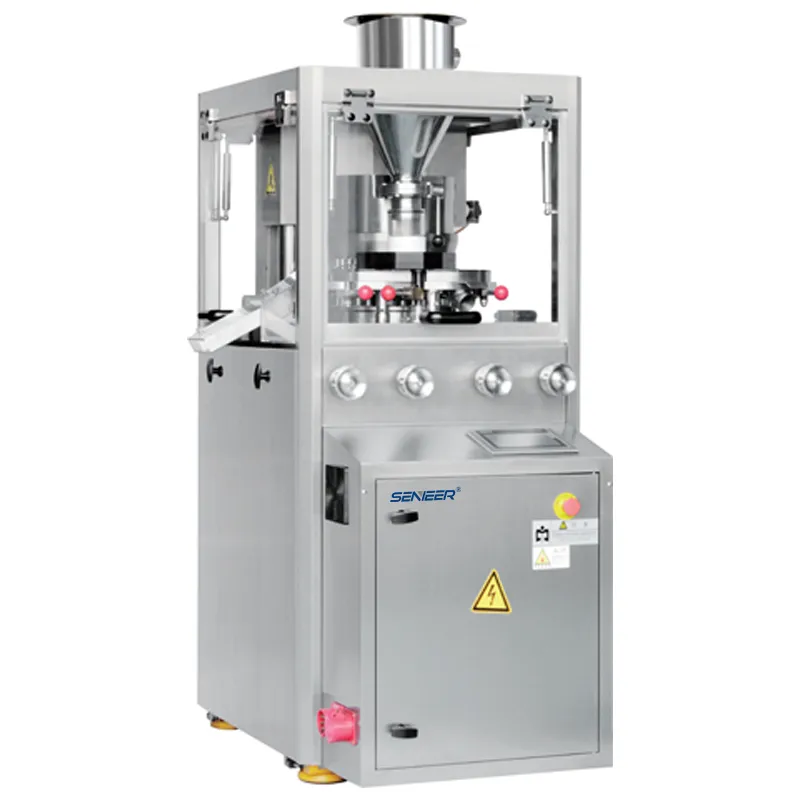

Current Product: STP265 Tablet Press Machine

STP265 Tablet Press Machine is designed for the compression of tablets with uniform size and weight. The whole machine is fully contained, which can reduce the noise emission and protect the tablets from cross contamination. Our tablet press machine series are welcomed by many countries and regions such as Brazil, Egypt, South Africa, Indonesia, Vietnam, etc. Interested in it? Contact us immediately!

Upstream Products

Vacuum Feeder-8
Vacuum Feeder
sgl300 granulation line-1
Granulation Line
bdv ibc bin blender-1
Bin Blender
Hammer Mill 14
Hammer Mill

Downstream Products

sbp140 automatic blister packing machine-1

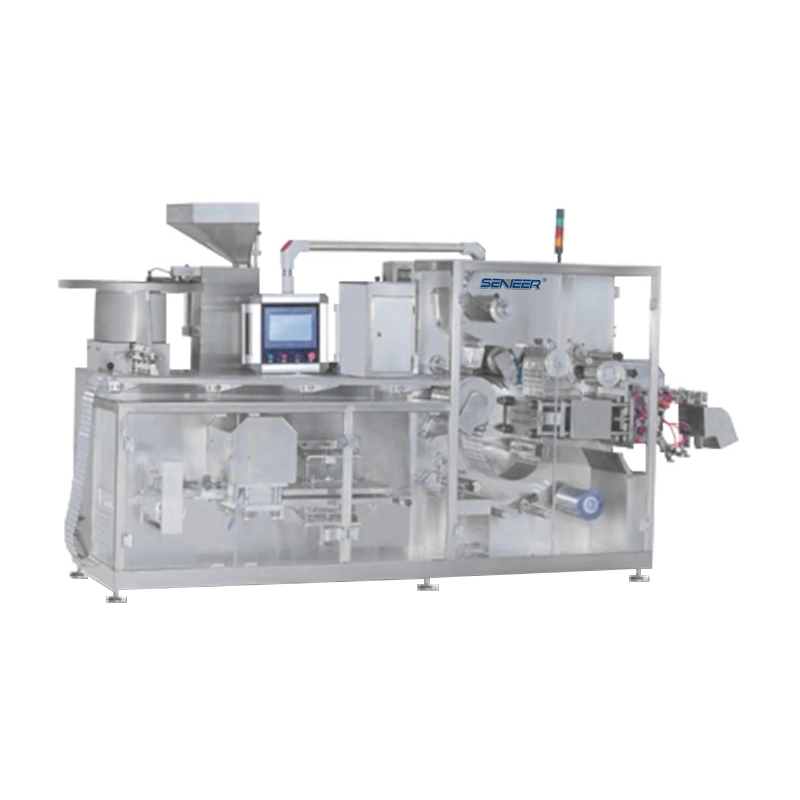

Automatic Blister Packing Machine
