SSD Single Head High Speed Desiccant Inserter

Suitable for all sizes of desiccants, easy adjustment of speed, automatic alarm system  and stop when no desiccant or desiccant jam.

SSD Single Head High Speed Desiccant Inserter

  • Model
  • Max output
  • Suitable bottle range
  • Voltage/frequency
  • Power
  • Compressed air
  • Air consumption
  • Dimension(L×W×H)
  • Weight
  • SSD Single Head
  • 120 b/m
  • D:30-120mm; H:30-200mm
  • AC220/50Hz
  • 0.65Kw
  • 0.30Mpa
  • 20L/min
  • 1700×550×1850mm
  • 300Kg

Desiccant inserter is an equipment used to insert desiccant packs into containers like plastic bottles, glass bottles, etc.). its main usage is to absorb moisture inside the bottle to avoid of dampness and deterioration of drugs or nutrition products. Senieer SSD single head high speed desiccant inserter adopts advanced and unique technologies to ensure accurate, high-speed and fully automatic desiccant filling functions. Servo motor offers stable, high performance, high speed and high accurate automation, controlling the feeding speed and cutting accuracy of desiccant packets, enhancing production efficiency and reducing manual interference.

Request A Quick Quote

Product Features

  • Compact structure design, easy to operate.
  • Touch screen and emergency stop devices are installed in the front of the whole machine, convenient to operate.
  • Dual sensors positioning：color mark detecting and action detecting.
  • Alarm system for bottle jam or no bottles.
  • 3 sets of proximity switches, automatic feeding for shortages
  • 3 levels of permission management

Application

Application of Senieer equipment in pharmaceutical industry

Pharmaceutical

Application of Senieer equipment in nutraceutical industry

Nutraceutical

Application of Senieer equipment in food industry

Food

Application of Senieer equipment in chemical industry

Chemical

Application of Senieer equipment in cosmetic industry

Cosmetics

Senieer icon

Animal

Other Models Of Desiccant Inserter

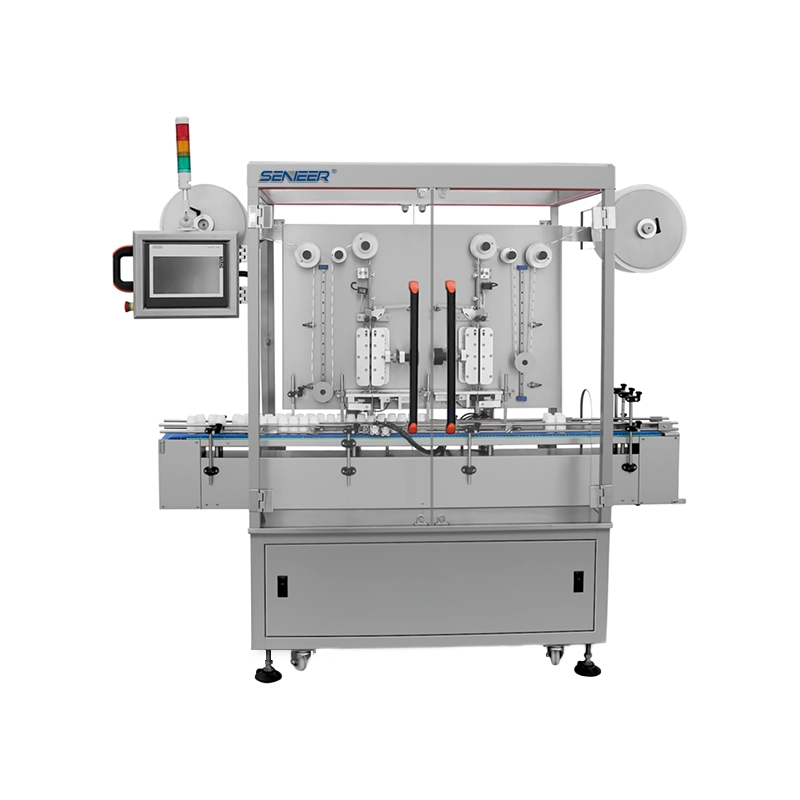

SDD Dual Head High Speed Desiccant Inserter
SDD Dual Head High Speed Desiccant Inserter

Technical Parameters Of SSD Single Head High Speed Desiccant

No.

Items

Details

1

Max output

120 b/pm

2

Bottle specification

D:30-120mm; H:30-200mm

3

Voltage/Frequency

AC220V/50Hz

4

Power

0.65Kw

5

Compressed air

0.30Mpa

6

Air consumption

20L/min

7

Dimension(L×W×H)

1700×550×1850mm

8

Weight

300Kg

SSD Single Head High Speed Desiccant : Product Description

Feed the rolled strip desiccant into the feeding structure, guide it around each limit wheel into the servo feeding structure, detect the color mark through the color mark sensor, precisely control the servo action by PLC system, when the desiccants arrive the cutting position, it is cut into bottles. Then, bottles with filled desiccants enter into the next process.

Senieer SSD single head high speed desiccant inserter consists of the following parts: programmable controller PLC, touch screen HMI, variable frequency converter, servo system, switches, photo sensors, color mark sensors, proximity switches, cylinders, etc. Some parts are optional. We can offer customization service for clients according to their needs.

As global leading pharmaceutical equipment manufacturer and supplier, Senieer offers desiccant inerter with high performance and automation features. It has compact design for the least space occupation, convenient to use and operate. All smart control devices are installed in the front of the whole machine, so you can easily to monitor and operate it. Senieer SSD single head high speed desiccant inserter is suitable for various types of desiccants filling application, no matter silica gel or others.

ssd single head high speed desiccant inserter

Current Product: SSD Single Head High Speed Desiccant Inserter

SSD single head high speed desiccant inserter is a new generation of Senieer desiccant inserters. Dual sensors positioning ensures high accurate cutting and filling of desiccant packs. The mini sensor detect actions, it will alert and stop operating when there occurs empty bags. In addition, no- color-mark mode is available, which is suitable for strip desiccants with no color mark( advice: after operating for a week, fine-adjust of position to avoid accumulative errors.)

Upstream Products

SBU160 Automatic Bottle Unscrambler
SBU160 Automatic Bottle Unscrambler

Downstream Products

SVC Visual Tablet Countng Machine
SVC Visual Tablet Counting Machine

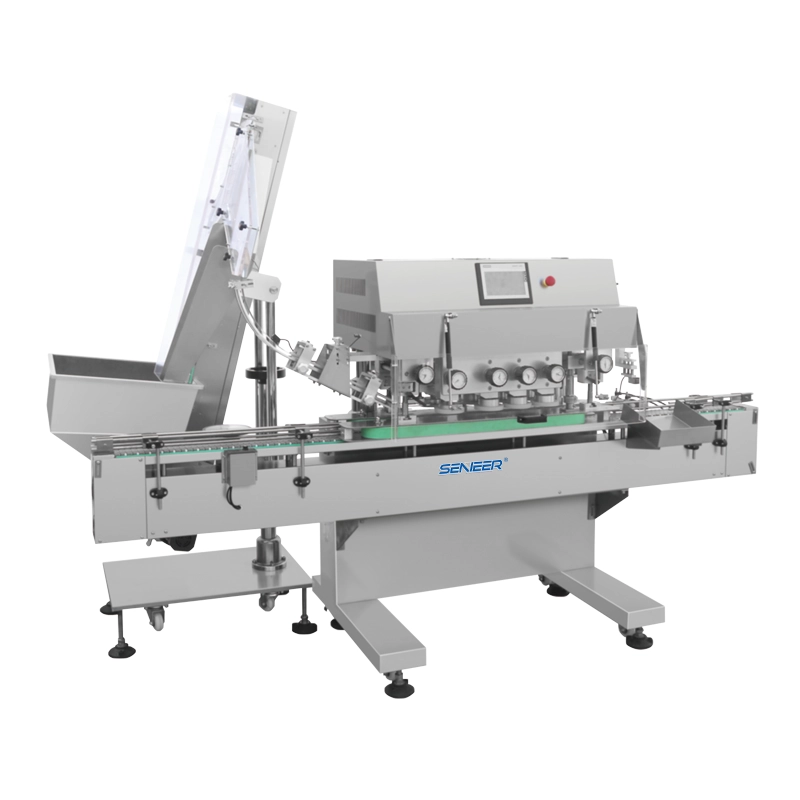

SIC Linear Capping Machine
SLC Linear Capping Machine
SAS Aluminum Foil Sealing Machine
SAS Aluminum Foil Sealing Machine
SVL Vertical Self-adhesive Sticker Labeling Machine
SVL Vertical Self-adhesive Sticker Labeling Machine
