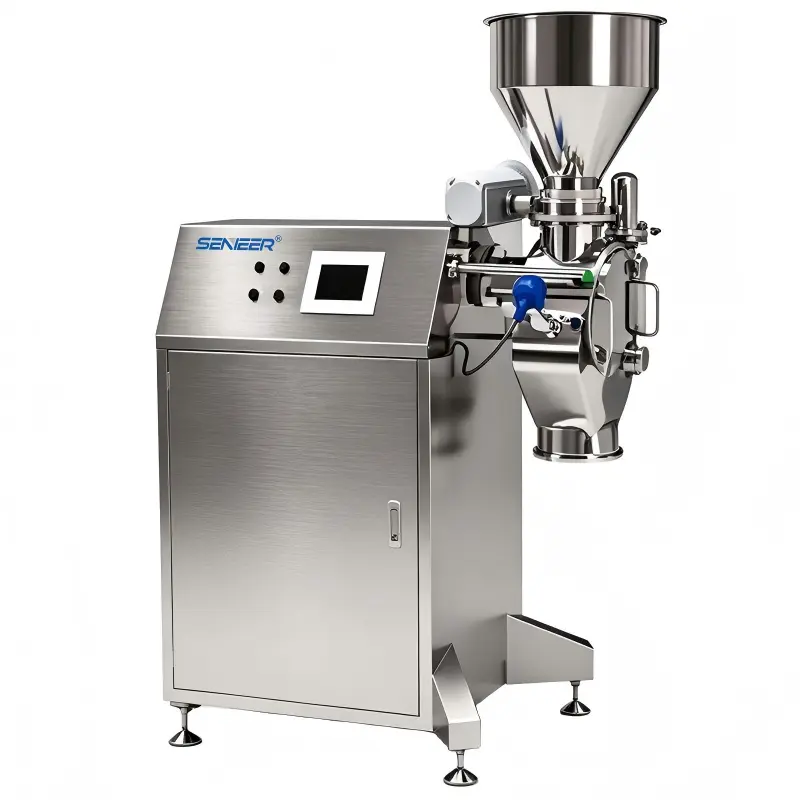

Small Hammer Mill

Small Hammer Mill for Sale –Compact Grinder for Grain, Pharmaceutical & Food Processing

Small Hammer Mill

  • Model
  • Power (kw)
  • Output (kg/h）
  • Speed（rpm)
  • SHM
  • 4
  • 50-200
  • 0-6000

The small hammer mill is designed for the coarse grinding of various materials, it is suitable for grinding most materials in the pharmaceutical, chemical, and food industries. Screens of various specifications are available to meet customers’ material grinding requirements, with screen mesh sizes selectable within the range of 20 mesh to 150 mesh. Optional vacuum conveyor feeding system is also available.

Request A Quick Quote

Product Features

  • Meet the GMP standards and the norms of related industries.
  • Shear crushing and hammer cruahing can be selected
  • The crushing knife set is easy to clean and replace.
  • Screens are available in mesh sizes from 20 to 150 mesh
  • With a small footprint and sturdy construction

Application

Application of Senieer equipment in pharmaceutical industry

Pharmaceutical

Application of Senieer equipment in nutraceutical industry

Nutraceutical

Application of Senieer equipment in food industry

Food

Application of Senieer equipment in chemical industry

Chemical

Application of Senieer equipment in cosmetic industry

Cosmetics

Senieer icon

Animal

Other Models Of Hammer Mill

HM6 Hammer Mill
HM 6
HM12 Hammer Mill
HM 12
HM15 Hammer Mill
HM 15

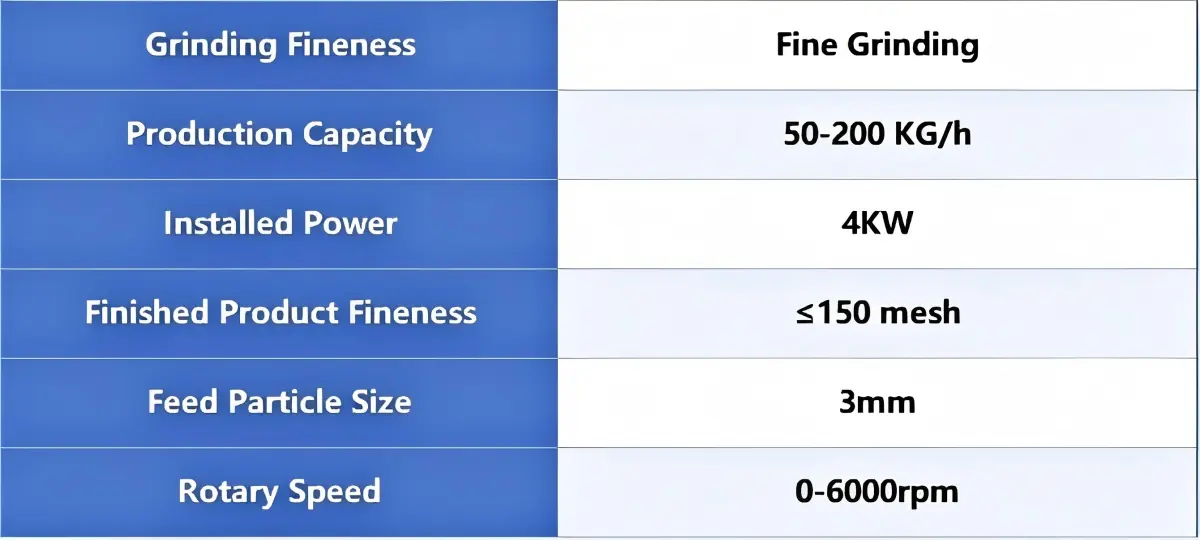

Technical Parameters Of Small Hammer Mill

Technical Parameters Of Small Hammer Mill

Small Hammer Mill Machine : Product Description

hammer mill diagram
Hammer Mill Diagram

The ground material is thrown radially outward under the centrifugal force of the high-speed rotating hammer, the particles undergo high-speed hammering, shearing, and colliding actions with each other, against the inner walls of the grinding chamber, and with the blades. The particles that meet the required specifications pass through a screen into the collection device, completing the grinding process. A star-shaped discharge valve is installed between the hopper and the grinding chamber. By adjusting the rotational speed, the discharge rate can be controlled, feed is ensured to be uniform, and dust generation during the grinding process is prevented.

  • Precision Feed Control – A star‑shaped discharge valve between the hopper and grinding chamber allows accurate adjustment of the feed rate. This ensures uniform feeding, prevents material bridging, and significantly reduces dust generation during operation.
  • Flexible Screen Options – Screens are available in mesh sizes from 20 to 150 mesh, enabling you to achieve the exact particle size required for your product – from coarse grits to fine powders.
  • Optional Vacuum Conveying System – For fully enclosed, dust‑free material handling, you can equip the mill with a vacuum feeder that automatically transports raw material into the hopper, minimising manual labour and environmental contamination.
  • Compact & Robust Design – With a small footprint and sturdy construction, this hammer mill is ideal for both laboratory‑scale trials and small‑batch production lines.

Our compact hammer mill is suitable for most dry, non‑sticky, and moderately friable materials, including:

  • Grains – corn, wheat, rice, oats, barley
  • Herbs & Spices – cinnamon, pepper, ginger, turmeric
  • Pharmaceutical ingredients – tablets, powders, excipients
  • Chemical products – pigments, resins, fertilisers
  • Food ingredients – sugar, salt, breadcrumbs, dried fruits (with low oil content)

For oily, wet, or highly fibrous materials, we recommend a preliminary test to confirm performance.

Selecting the optimal hammer mill for your grain application involves four key factors:

Desired Fineness – Determine the required mesh size (e.g., 20‑40 mesh for coarse meal, 60‑150 mesh for fine flour). Our interchangeable screens let you switch easily.

Throughput Requirement – Our model delivers 50‑200 kg/h, which covers most small‑scale commercial and home‑use needs. Consider your daily production volume.

Feed Particle Size – Ensure your grain is pre‑crushed to ≤3 mm for efficient milling and to avoid chamber blockages.

Safety & Hygiene – For food/feed use, choose stainless steel contact parts and an easy‑to‑clean design. Overload protection and emergency stop are also recommended.

small hammer mill

Current Product: Small Hammer Mill

Our small hammer mill is a versatile, high‑speed grinding machine designed for coarse to fine pulverization of a wide range of dry materials. With a capacity of 50–200 kg/h and a compact footprint, the mill is suitable for laboratory trials, pilot production and small-batch processing where a compact grinding solution is required.

Hammer mill machine is exported to the Maldives, Zambia, Jamaica, Nigeria, and South Africa. Do you want to get one? Come and contact us.
