SEC Electronic Tablet Counting Machine

High smart and automation, function to reject layered tablets, ensuring high accurate and continuous counting and filling, suitable for multiple types of materials such as tablets, capsules, pills, etc.

SEC Electronic Tablet Counting Machine

  • Model
  • Number of channels
  • Max capacity
  • Suitable drug type
  • Diameter of bottle neck
  • Bottle height
  • Voltage/frequency
  • Air pressure
  • SEC
  • 8, 12, 16, 24
  • 4000~12000pcs/m
  • capsule, tablet, etc.
  • Φ15~100mm
  • 40-240mm
  • AC220V 50/60Hz
  • 0.6Mpa

SEC electronic tablet counting machine adopts electronic counting technology, ensuring high accurate tablet counting. This technology widens the applicable range of tablet counting machine. It doesn’t need molds and is suitable for multiple shapes and sizes of materials such as tablets, capsules, softgel, granules, etc. The control interface adopts rotatable colorful touch screen and HMI, so it is convenient to operate. It features layered tablets automatic rejection function, reducing the errors of overcount or undercount. All contact parts adopt SS360L and FDA-compliant materials, to meet GMP standard.

Request A Quick Quote

Product Features

  • Rotatable and colorful touch screen, HMI interface, easy to operate.
  • Simple automatic production parameter setting system covers multiple drugs.
  • Detecting and breakdown alarm system for working state.
  • Electric eye dust regulator and self-diagnosis function to ensure the accuracy of counting.
  • Layered tablets rejection function.
  • Second- or third-class DC inverter vibration control system to provide a stable and fast driven counting.

Application

Application of Senieer equipment in pharmaceutical industry

Pharmaceutical

Application of Senieer equipment in nutraceutical industry

Nutraceutical

Application of Senieer equipment in food industry

Food

Application of Senieer equipment in chemical industry

Chemical

Application of Senieer equipment in cosmetic industry

Cosmetics

Senieer icon

Animal

Other Models Of Tablet Counting Machine

SVC Visual Tablet Countng Machine
SVC Visual Tablet Counting Machine

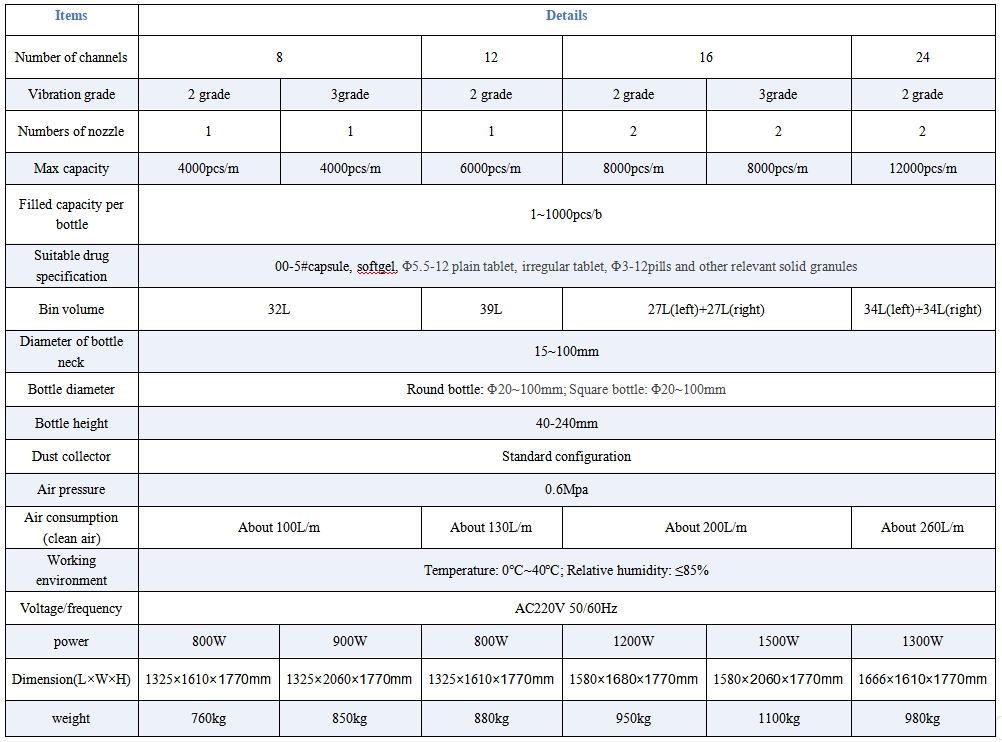

Technical Parameters Of SEC Electronic Tablet Counting Machine

SEC Electronic Tablet Counting Machine parameters

SEC Electronic Tablet Counting Machine : Product Description

Tablet counting machine, also called tablet counting and filling machine, is widely used in industries like pharmaceutical, food, health products, veterinary medicine, cosmetics and chemicals. The application of tablet counting machine reduces the manual intensity and enhances the production efficiency. It is not only used in the counting of tablets, but also used for capsules, softgels, pills and solid granules. SEC electronic tablet counting machine is an automatic counting equipment and is mainly designed for pharmacy, medicine and many other fields. The history of tablet counting machine has evolved several generations. From the initial mechanical counting machine to the electronic counting machine, SEC electronic tablet counting machine provides highly automatic and accurate tablet/capsule counting options for our clients.

SEC Electronic Tablet Counting Machine has many advanced and unique functions compared to mechanical and other factories’ electronic tablet counter.

  • Designed with pre-counting function, which can improve the speed of counting.
  • The coordination of the large material gate with the small material gate enhances the bottle filling speed.
  • The filling nozzle automatically descends to encase the bottle mouth during the bottling process, thereby preventing tablets from escaping and causing underfill.
  • Optional function of Filling nozzles vibration to avoid large drugs blockage.
  • Automatic lifting mechanism to adapt to different heights of bottles.
sec electronic tablet counting machine-12

Current Product: SEC Electronic Tablet Counting Machine

SEC Electronic Tablet Counting Machine adopts servo motor, which offers advantages in accuracy, speed control, maintenance needs and energy efficiency compared to pneumatic cylinder, because pneumatic cylinder is easily affected by altitude, temperature and humidity. The contact parts of this machine all adopts SS316L,which ensures hygienic standards. All stainless steel surface are welded with seamless to avoid the accumulative of dusts, ensuring high standards of hygiene. The whole machine is compliant with GMP standards. Senieer offers competitive price of SEC electronic tablet counting machine. Senieer offers competitive price and high quality performance tablet counting machine to satisfy clients’ needs.
