SCF 800 Automatic Capsule Filling Machine

Automatic,High Output,Meet GMP, Unity and Integrity

SCF 800 Automatic Capsule Filling Machine

  • Model
  • Max Capacity
  • Power Supply
  • Total Power
  • Machine Weight
  • Machine Size (L*W*H)
  • SCF 800
  • 48000 Pcs/Hour
  • 380 V, 50 Hz
  • 5 Kw
  • 900 Kg
  • 1000×710×1900mm

The SCF 800 automatic capsule filling machine, also named the capsule filling machine, mainly used to accurately fill powder, granules, or pellets into hard gelatin capsules or vegetarian capsules, ensuring dosage uniformity and meeting GMP standards, is a piece of equipment suitable for small and medium volume production. As a perfect upgrading alternative for semi-automatic capsule filling machines, it has been widely used in nutrition, healthcare, and pharmaceutical enterprises.

Request A Quick Quote

Product Features

  • Fully enclosed patented rotary table, with one-way movement of problems of mold dismantling, washing, and assembly precision.
  • The equipment adopts an imported precision divider with smooth operation, high indexing accuracy, compact structure, and low noise.
  • Fully meet GMP standards and pass the acceptance check of FAT.
  • The electronic control system is controlled by PLC, and the main electrical components are made of internationally renowned brands, with safe and reliable enclosed turntable performance.
  • Timing, quantitative, and capacitive induction blanking functions are optional.
  • Adopt an orifice and disc metering device, three-dimensional adjustment, an even gap, reduce powder leakage, and equipped with a vacuum automatic cleaning function.
  • With the function of one machine and two feeding, the unique design principle can complete the mixing and filling of different drugs, such as powder, particles, pellets, and tablets.

Application

Application of Senieer equipment in pharmaceutical industry

Pharmaceutical

Application of Senieer equipment in nutraceutical industry

Nutraceutical

Application of Senieer equipment in food industry

Food

Senieer icon

Veterinary

Other Models Of Capsule Filling Machine

Semi-Automatic Capsule Filling Machine
Semi-Automatic
SCF3000D Capsule Filling Machine
SCF 1200
Capsule Filling Machine
For Size 00

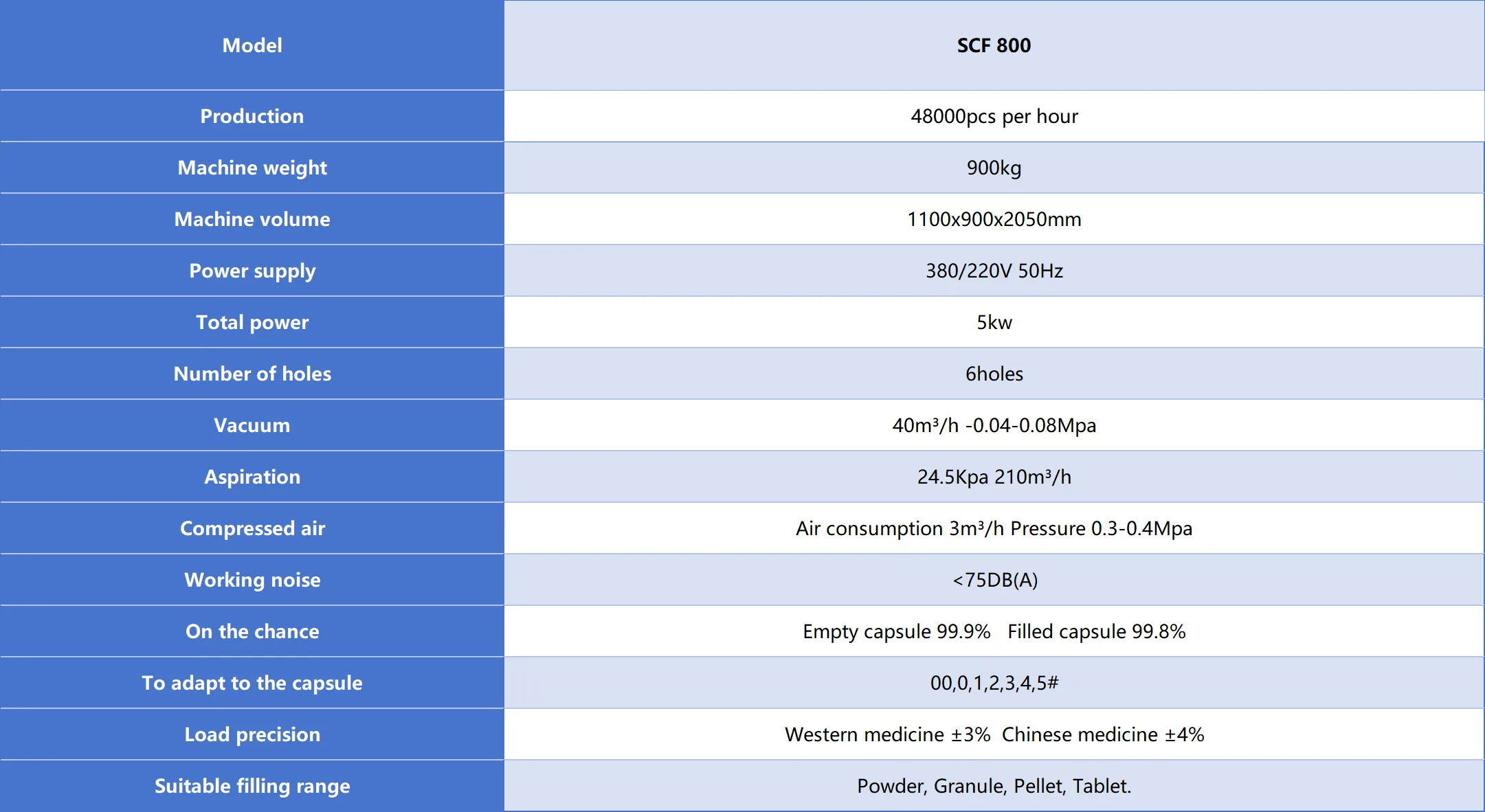

Technical Parameters Of SCF 800 Automatic Capsule Filling Machine

table of scf 800

Product Details of SCF 800 Automatic Capsule Filling Machines

Simply put, an empty capsule is separated, filled, and locked into a complete capsule.
Separate-Fill-Lock
The empty capsule from the capsule hopper enters the vacuum capsule cap separator. The separator is vacuumed to divide the capsule into two halves.
The turntable begins to rotate, when it is turned to the drug filling unit, powder particles and other drug raw materials are filled into the lower half of the separated empty capsule.
The turntable continued to rotate, and the upper and lower ends of the vacuum capsule cap separator began to lock the capsule.

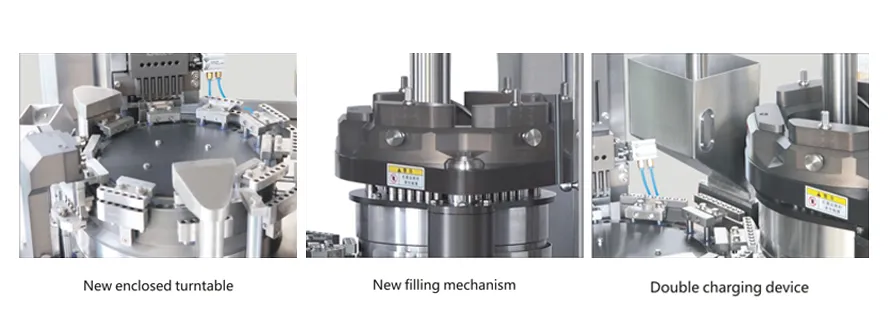

scf 800 precess

The new turntable adopts a fully closed mechanism design, which has a faster speed and excellent dustproof performance, effectively ensures the cleanliness of drugs, and fully meets the pharmaceutical-grade standards.

The new filling mechanism uses the design of multi-stroke to further increase the output. The high-precision filling is suitable for most capsules, such as size 00,0,1,2,3,4,5#

With the capability of one machine performing two feeding functions, the unique design principle enables the mixing and filling of different drugs, including powders, particles, and pellets.

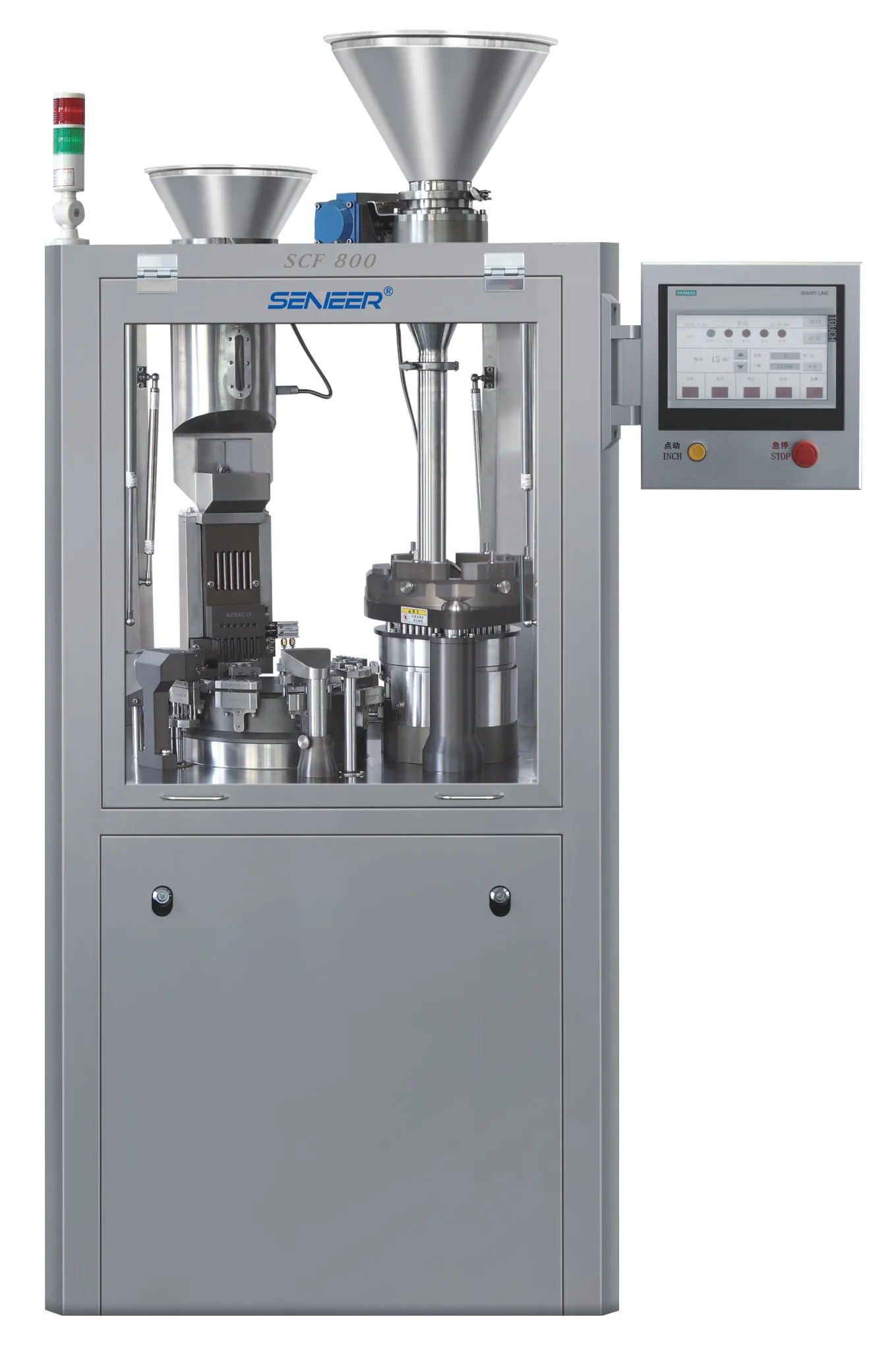

scf 800 capsule filling machine

Current Product: SCF 800 Automatic Capsule Filling Machine

The SCF 800 Automatic Capsule Filling Machine, as an efficient and flexible small-to-medium volume production equipment, has been selected by more and more users. It is widely used in hospitals for personalized drug preparation to meet the customized medication needs of patients, fully demonstrating its adaptability and practical value in multiple scenarios. Senieer can customize your project according to your process and layout requirements. We have solved many process problems for customers from more than 86 countries.

Upstream Products

Vacuum Feeder-8
Vacuum Feeder
Vibro Sifter
Vibro Sifter
bdv ibc bin blender-1
Bin Blender

Downstream Products

tablet counting machine
Counting Machine

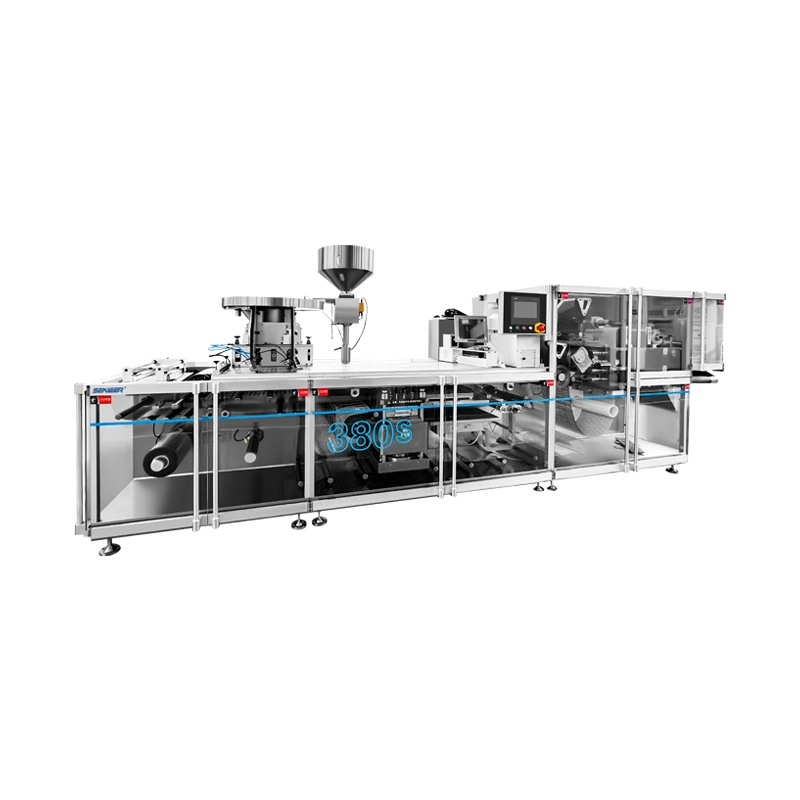

blister packaging machine
