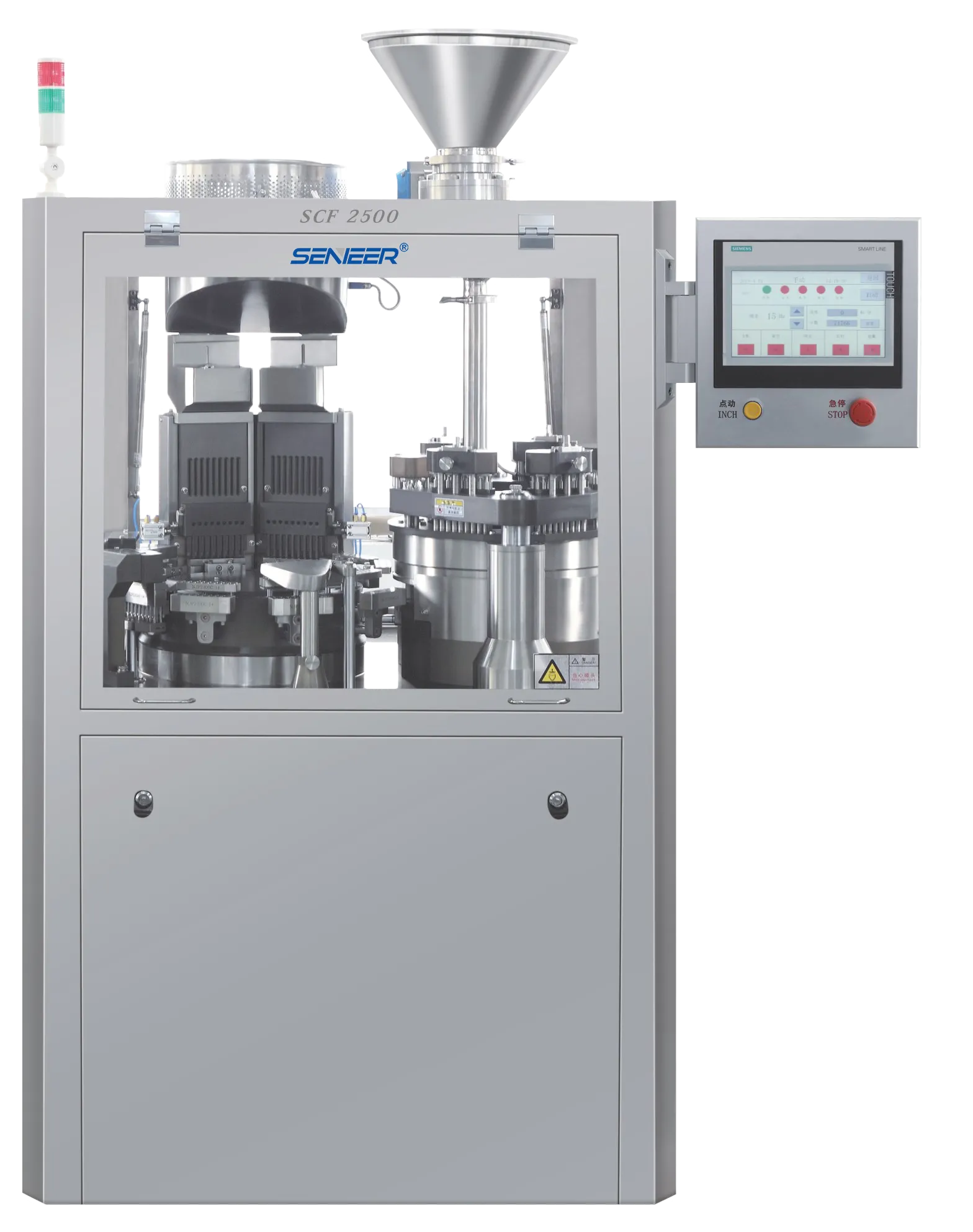

SCF 2500 Automatic Capsule Filling Machine

High-Speed Efficiency, High-Capacity, Ideal For Large-Scale Production

SCF 2500 Automatic Capsule Filling Machine

  • Model
  • Max Capacity
  • Power Supply
  • Total Power
  • Machine Weight
  • Machine Size (L*W*H)
  • SCF 2500
  • 150000 Pcs/Hour
  • 380 V, 50 Hz
  • 8 Kw
  • 1500 Kg
  • 1100x1200x2000mm

The SCF 2500 Automatic Capsule Filling Machine is a high-end equipment tailored for large-scale production in the pharmaceutical industry. With its advanced design and powerful performance, it stands out in the market. It efficiently addresses the challenges of low efficiency and inconsistent product quality in large-batch capsule production, making it an indispensable core device for large pharmaceutical enterprises, health product manufacturers, and professional pharmaceutical production bases. Besides, the SCF 2500 powder capsule filling machine can form a capsule production line with vacuum conveying, empty capsule feeder, capsule sorter machine, and capsule polisher, meeting the growing consumer demand.

Request A Quick Quote

Product Features

  • Fully complies with GMP and relevant international pharmaceutical equipment standards.
  • Ultra-low-position compact rotary disc, which effectively reduces the inertia of the rotary table and the wear of the components, and prolongs the service life of the cam.
  • A type capsule-ejection mechanism to avoid pinching and dust flying when the finished product is out.
  • The new capsule sowing mechanism is operated by linear guide rails. The closed design eliminates the entry of waste capsules and powder, ensuring the rapid, accurate, and orderly delivery of the capsules.
  • A man-machine electronic control system can realize the statistics of the capsule output and the total production output, and has the function of automatic detection and alarm shutdown of a lack of materials, a lack of capsules, and mechanical failure.
  • The optional automatic material loading and capsule loading machine has a control system with touch screen operation.

Application

Application of Senieer equipment in nutraceutical industry

Nutraceutical

Application of Senieer equipment in food industry

Food

Senieer icon

Veterinary

Application of Senieer equipment in pharmaceutical industry

Pharmaceutical

Other Models Of Capsule Filling Machine

Semi-Automatic Capsule Filling Machine
Semi-Automatic
SCF3000D Capsule Filling Machine
SCF 1200
Capsule Filling Machine
For Size 00

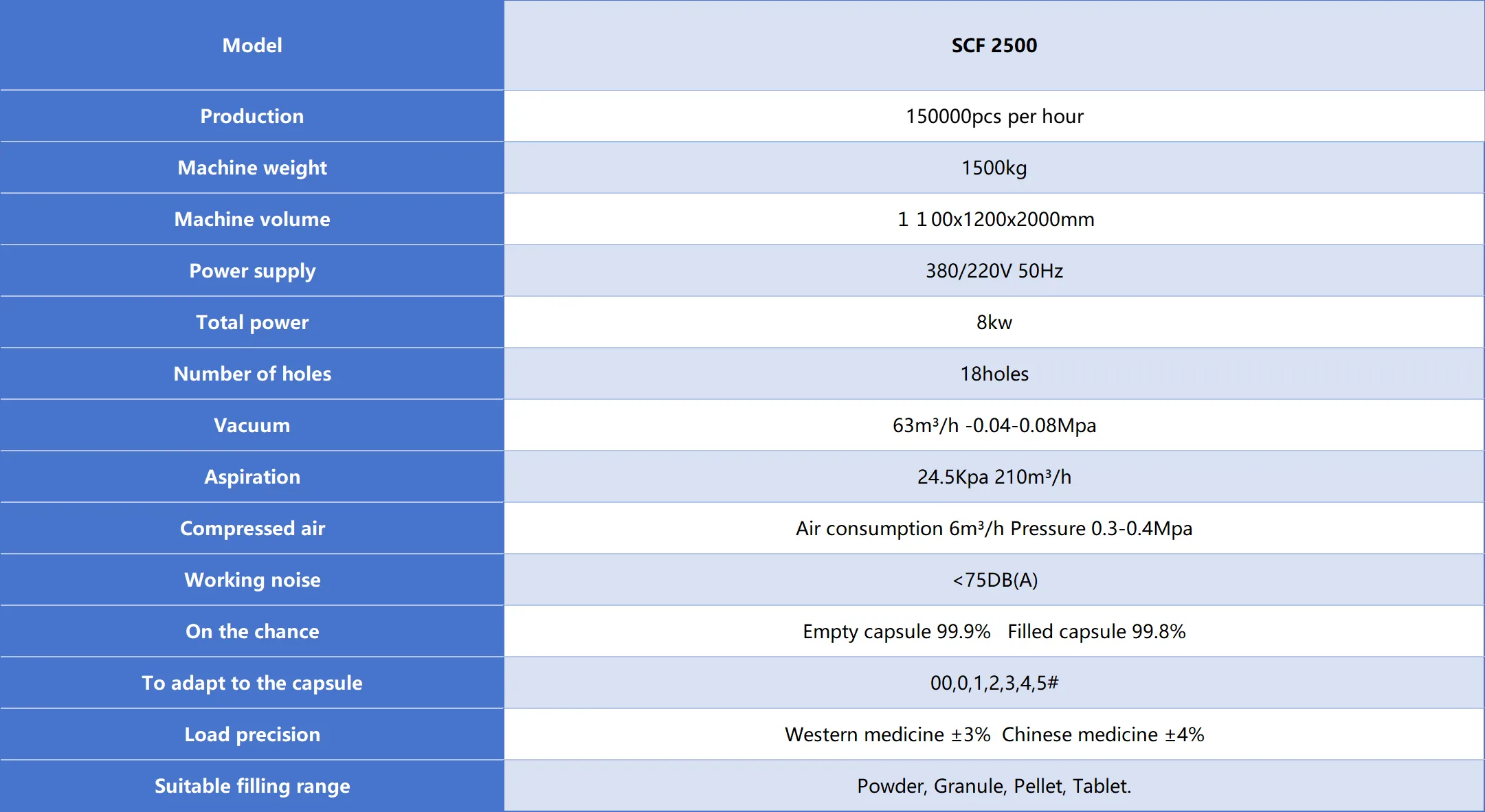

Technical Parameters Of SCF 2500 Automatic Capsule Filling Machine

table of scf 2500

Product Details of SCF 2500 Automatic Capsule Filling Machines

The SCF 2500 automatic capsule filling machine is specialized equipment that automatically completes capsule separation, powder/granule filling, and capsule locking, designed for efficient and precise production of filled capsules.

The plane cams are running in the mode of double rails, where the two axes run out separately. It can improve the operation accuracy and meanwhile eliminate the possibility of collision between the lower die and the dosage disc.

The high-precision cam splitter uses the optical dividing head of German Zeiss. The dividing spindle is machined in the CNC all at once, which has ensured accurate division of the turntable and dosage disc while the machine runs fast, thus ensuring the precision of filling. Higher precision of the cam splitter also provides the machine with a longer service life.

The operating cams are all processed with 20crmoti carburizing and quenching treatment, and then machined in a CNC grinding machine all at once, which has ensured the accuracy and unity of the cams and provided a longer service life.

scf 2500 capsule filling machine

Current Product: SCF 2500 Automatic Capsule Filling Machine

In today’s pharmaceutical industry, where large-scale and standardized production is increasingly important, the SCF 2500 automatic capsule filling machine well in Germany, US, Egypt and other countries. It is widely adopted by large pharmaceutical companies for the mass production of their core products, ensuring a stable supply of high-quality capsules to the market. Whether it’s mass production of generic drugs, large-scale manufacturing of nutrients, or standardized production of pharmaceutical preparations, the SCF 2500 combines high speed, precision, and stability. Do you want to double your output? Waiting for your order.

Upstream Products

sgl300 granulation line-1
Granulation Line
bdv ibc bin blender-1
Bin Blender
Vacuum Feeder-8
Vacuum Feeder

Downstream Products

SBP160 Blister Packaging Machine
SBP160 Blister Packaging Machine

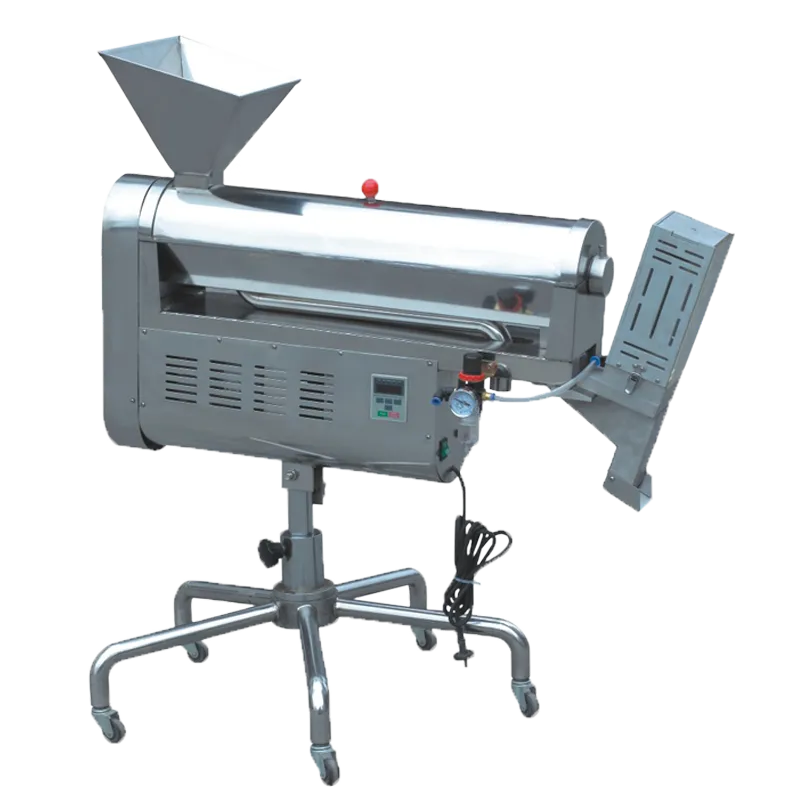

capsule polisher
