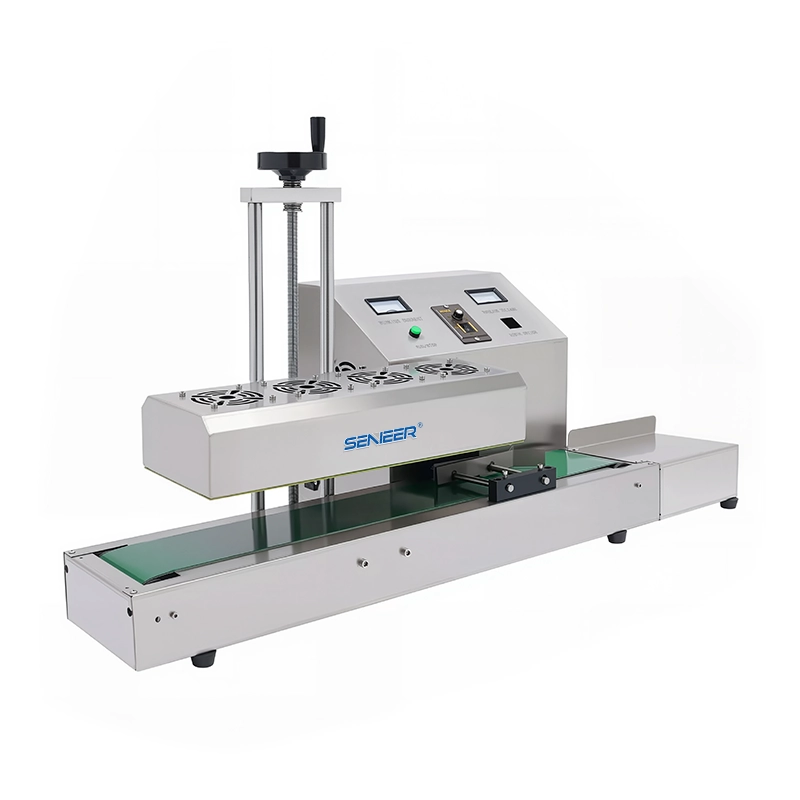

SAS Aluminum Foil Sealing Machine

Electromagnetic induction aluminum foil sealing, high-speed, simple process, convenient operation, offering high efficient sealing solution for you.

SAS Aluminum Foil Sealing Machine

  • Model
  • Bottle neck diameter
  • Bottle height
  • Max output
  • Max power
  • Voltage/frequency
  • Induction sensor size
  • Dimension(L×W×H)
  • Packing weight
  • SAS
  • Φ15mm-Φ70mm
  • 0-490mm
  • 200b/m
  • 4Kw
  • AC220V 50/60Hz
  • 660×130×140mm
  • 1700×1100×1380mm
  • 159Kg

SAS Aluminum Foil Sealing Machine is a high efficient packing equipment and is mainly used to seal the openings of containers such as bottles and jars. It operates on the principle of electromagnetic induction heating to generate high heat on the aluminum foil and cause it to bond tightly with the bottles’ openings to create a secure seal. This SAS Aluminum Foil Sealing Machine is widely used in industries such as pharmaceuticals, medicine, chemical and cosmetics. The water cooling mode can work continuously, high efficient and high speed, operate all day. The induction head adopts bold brass, ordinary tap water can be used to reduce the costs.

Request A Quick Quote

Product Features

  • The induction head has a unique tunnel-type structure, multi-faceted and three-dimensional heating mode make the sealing results better.
  • Use of high-quality stainless steel structure, reasonable product design, beautiful and generous, accord with GMP standards.
  • Host generator adopts transistor, CPU module design, low failure rate.
  • Unique design of switch power for steady power output.
  • Water cooling mode can be work in continuous, efficient and high-speed, long-term continuous work.
  • Movable design for convenient coordination with other complementary equipment to form a production line.

Application

Application of Senieer equipment in pharmaceutical industry

Pharmaceutical

Application of Senieer equipment in nutraceutical industry

Nutraceutical

Application of Senieer equipment in food industry

Food

Application of Senieer equipment in chemical industry

Chemical

Application of Senieer equipment in cosmetic industry

Cosmetics

Senieer icon

Animal

Other Models Of Cap Sealing Machine

induction sealing machine-1
SIS Induction Sealing Machine

Technical Parameters Of SAS Aluminum Foil Sealing Machine

No.

Item

Details

1

Bottle neck diameter

Φ15mm-Φ70mm(special bottle neck need custom design)

2

Bottle height

0-490mm

3

Flow packing line velocity

0-60m/min

4

Max output

200b/m

5

Max power

4Kw

6

Voltage/frequency

AC220V 50/60Hz

7

Induction sensor size

 660×130×140mm

8

Induction generator size(L×W×H)

510×750×1380mm

9

Dimension(L×W×H)

1700×1100×1380mm

10

Packaging Weight

159Kg

11

Net weight of machine

85Kg

SAS Aluminum Foil Sealing Machine : Product Description

Cap sealing machine, also called aluminum foil sealer or induction cap sealing machine, is a commonly used cap sealing equipment. SAS Aluminum Foil Sealing Machine adopts the principle of electromagnetic induction heating. when the machine starts up, it will generate high-frequency electromagnetic field. When containers with aluminum foil pass through this field, the conductive materials in the aluminum foil will generate eddy currents due to electromagnetic induction, so heat is generated, to make the aluminum foil soften and adhere closely to the mouth of containers to form a seal. This is a simple and effective sealing way. Simple operation, wide applications, environmentally friendly and energy efficient.

SAS Aluminum Foil Sealing Machine is specially applied to industries like pesticide, pharmacy, healthcare products, cosmetics, food, lubricant, etc. It is worth noting that this sealing machine is not suitable for the sealing of metal bottles because the metal will block electromagnetic force.

It has the following features and benefits:

  • Automatic sorting apparatus can reject bottles without aluminum foil inside to improve product quality.(optional)
  • Complete stainless steel mold enclosure, elegant and natural.
  • Completely new and smart modular design, humidity-, corrosion-resistant, dust-proof, and anti-magnetic interference.
  • Automatic alarm function when the water tank is low on water and water temperature is high, or any breakdown occurs.
SAS Aluminum Foil Sealing Machine

Current Product: SAS Aluminum Foil Sealing Machine

SAS Aluminum Foil Sealing Machine is a sealer adopting induction principle, which is suitable for the bottle sealing of multiple industries such as agriculture, medicine, food, cosmetics, and grease. Portable design, for convenient use in conjunction with production line. The main unit, bracket and induction head all are supported to disassemble, reducing the transportation costs. Senieer offers competitive price and excellent after-sales service for its SAS Aluminum Foil Sealing Machine.
