Roller Compactor In Pharma

Dry Granulation Without Liquid Binders, Granulate Powders With Various Characteristics.

Roller Compactor In Pharma

  • Production capacity
  • Particle size
  • Pressing Roller size
  • Maximum system pressure
  • Maximum roller pressure
  • Dimension
  • Weight
  • 5g-20kg/h
  • 8-80meshes
  • 100×30mm
  • 20MPa
  • 6t-force
  • 855×970×1606mm
  • 560kg

In the pharmaceutical processing, different materials have different features which will affect their handling processes and final effects. These different features include flowability, compressibility, solubility, friability, hardness, sensitiveness to various environmental factors like moisture or heat. These special materials need special handling ways, that is dry granulation. Pharmaceutical companies adopt dry granulating to make various heat or moisture-sensitive or poor flowing powders into granules. This dry granulation way don’t need to add liquid binders during the granulating process, which is specially suitable for those precious medicinal herbs that is sensitive to heat and moisture.

Request A Quick Quote

Product Features

  • Enhanced range of processing materials, success rate and yield of granulation.
  • Applicable to LCD touch screen and various automatic control technologies, enhancing the flexibility and security of equipment.
  • The whole machine adopts high quality stainless steel.
  • Contact parts are convenient for disassemble and cleaning.
  • Power area and working area are set separately.
  • Full compliant with GMP requirements for drug production.

Application

Application of Senieer equipment in pharmaceutical industry

Pharmaceutical

Application of Senieer equipment in nutraceutical industry

Nutraceutical

Application of Senieer equipment in food industry

Food

Application of Senieer equipment in chemical industry

Chemical

Application of Senieer equipment in cosmetic industry

Cosmetics

Senieer icon

Animal

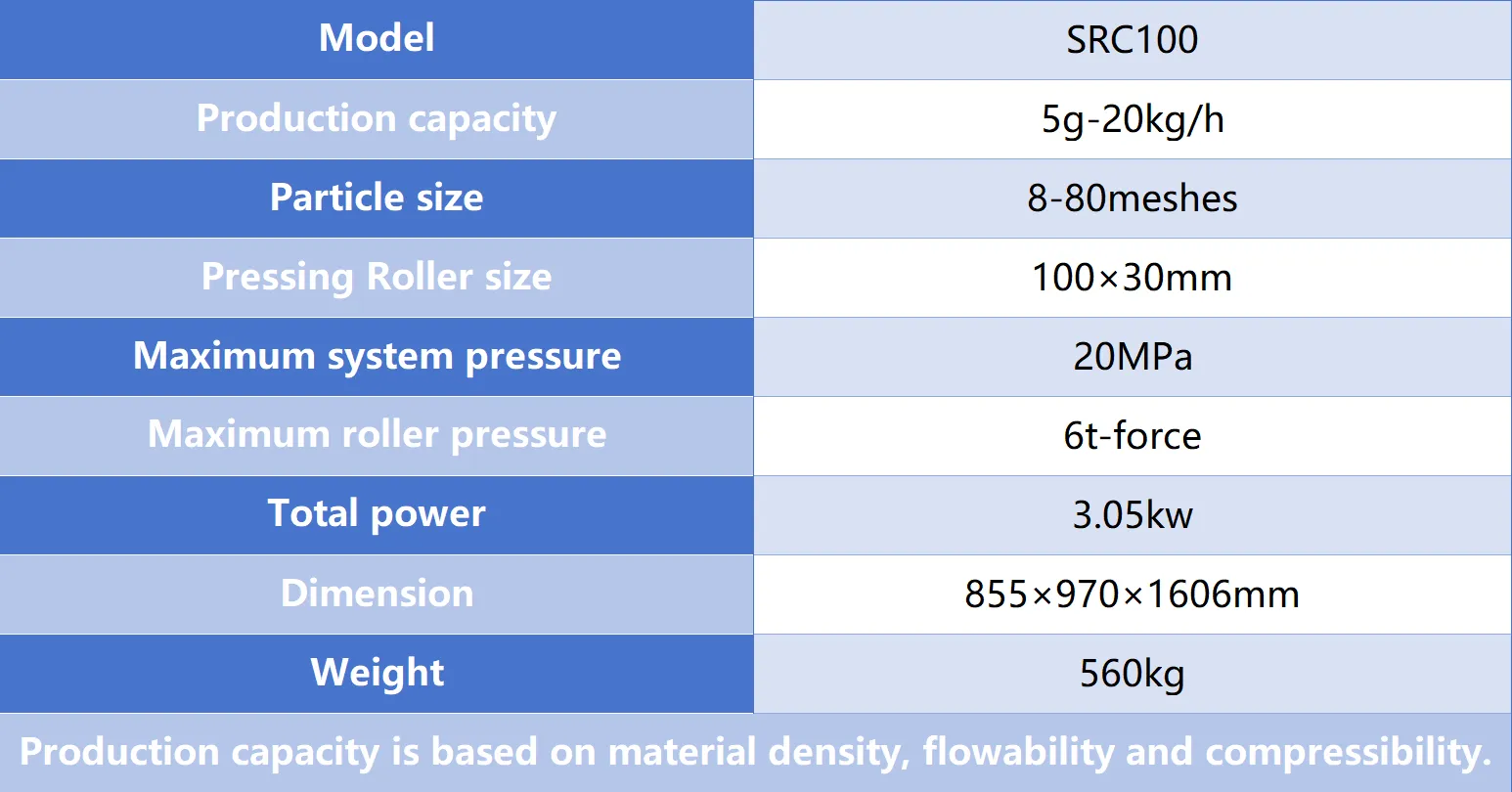

Technical Parameters of Roller Compactor In Pharma

technical parameters of roller compactor in pharma

Product Details of Roller Compactor In Pharma

In the pharmaceutical industry, the requirements for drug making are very strict, which must meet GMP and related hygienic&safe standards. Senieer roller compactors are supported to compact and mill all types of powder materials and our precise and delicate machine design and mechanical technologies guarantee the uniform and consistent compaction.

Many medicinal herbs and drugs are sensitive to moisture or heat, in this condition, roller compactor is very suitable for dealing with them, as it is dry granulation and don’t need solvents or drying steps.

Senieer roller compactor/dry granulator is specially designed for the pharmaceuticals. It can be used to handle a variety of medicines such as coronary drugs, antibiotics, analgesics, etc.

Roller compactor, also called dry granulator, is mainly used to enhance bulk density of granules and reducing the particle size of powders through the compaction and milling methods. The full containment structure can also effectively avoid the dust accumulation and achieve dust-free handling.

The working process of roller compactor mainly contains two steps: compaction and milling. Roller compaction is a way of compacting powders into a solid forms like flakes or ribbons. This process can significantly enhance the density of powder materials and is achieved by two opposite and counter-rotating rollers.

After compaction, is the milling process. The compacted sheets or flakes of ingredients are then through the milling part of machine. In there, the compacted ingredients are milled into desired size of granules by oscillating mill.

In addition, the selection of screen is important as it determines the size of final granule products. Senieer roller compactor in pharma also supports replacing screens conveniently.

Tablets or capsules need materials with good flowability and density, which need to adopt dry granulation(roller compactor).

This model is mainly used for the new dosage development&research and small capacity of dosage production of drug research institute.

The minimum feed quantity is 5g, especially designed small sample device for precious raw material drugs. It is a necessary granulation equipment for precious and sensitive drugs and is widely used in the pharmaceutical, food and chemical industry.

In addition, this machine is equipped with a small amount of material testing device. Only use 20g material can learn about the material properties by granulation, significantly reducing the research and development costs.

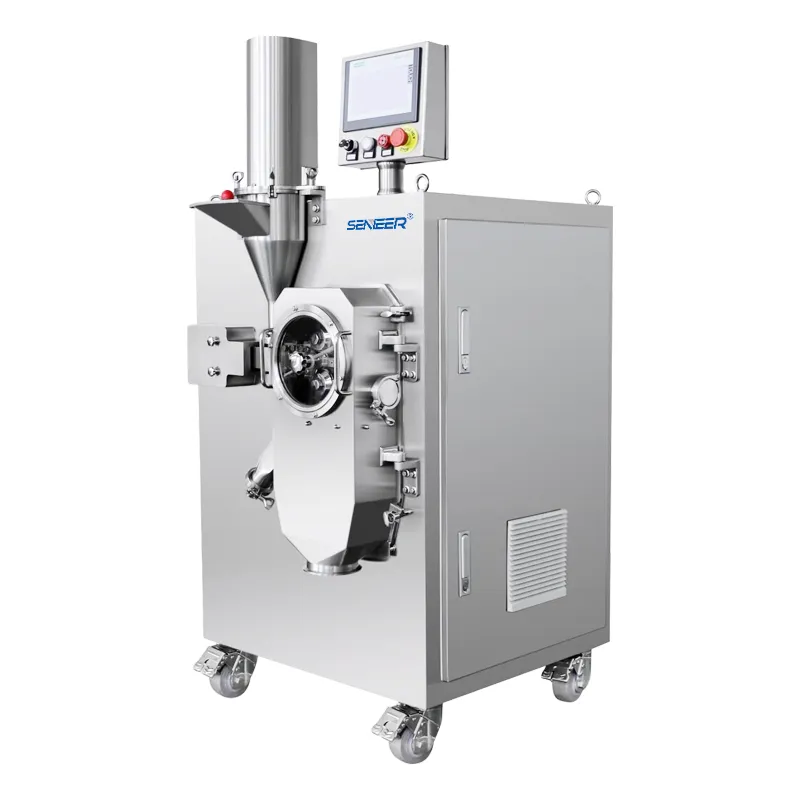

roller compactor in pharma-1

Current Product: Roller Compactor In Pharma

Senieer’s roller compactor in pharma adopts vertical and horizontal two-stage screw feeding system and unique cantilever design, which can improves the range of handling materials, the success rate of granulation and yield. The separation of power area and working area achieves the clean and contained production from powder to granules, which can effectively prevent dust and cross contamination.
