Liquid Capsule Filling Machine

Multiple Filling Ways: Single Liquid, Liquid+Pellets, Liquid+Small Capsule, Liquid+Tablet.

Liquid Capsule Filling Machine

  • Production capacity
  • Filling materials
  • Number of die
  • Capsule size
  • Power supply
  • Total power
  • Weight
  • 100,300,600pcs/m
  • oily liquid, solution, suspension or paste
  • 2, 6, 12
  • 00#-4#
  • 380V 50Hz
  • 3.5, 5, 6kw
  • 600-1200kg

Liquid capsule filling machine is a little different from capsule fillers for solid dosage forms like powder or granules. The filling material is liquid solution which need different filling process and design. Senieer innovates the capsule filling machine and makes it suitable for multiple liquid materials filling. it can fill single liquid, or liquid plus mini pellets, or liquid plus small capsules, or liquid plus tablets. This innovation is created by us first. In addition, it can also be used to form a liquid filling line with capsule sealing machine. The liquid capsule filling machine is mainly used in the pharmaceutical and nutraceutical industry.

Request A Quick Quote

Product Features

  • Diverse combination of filling materials: single liquid, liquid plus pellets or small capsules or tablets, etc.
  • Ceramic liquid feeding way ensures precise metering and enhance production efficiency.
  • Servo motor control filling system.
  • Filling measurement is accurate.
  • Optical fiber detection enhances pass rate.
  • Automatic defective capsule rejection function.

Application

Application of Senieer equipment in pharmaceutical industry

Pharmaceutical

Application of Senieer equipment in nutraceutical industry

Healthcare

Application of Senieer equipment in food industry

Food

Application of Senieer equipment in chemical industry

Chemical

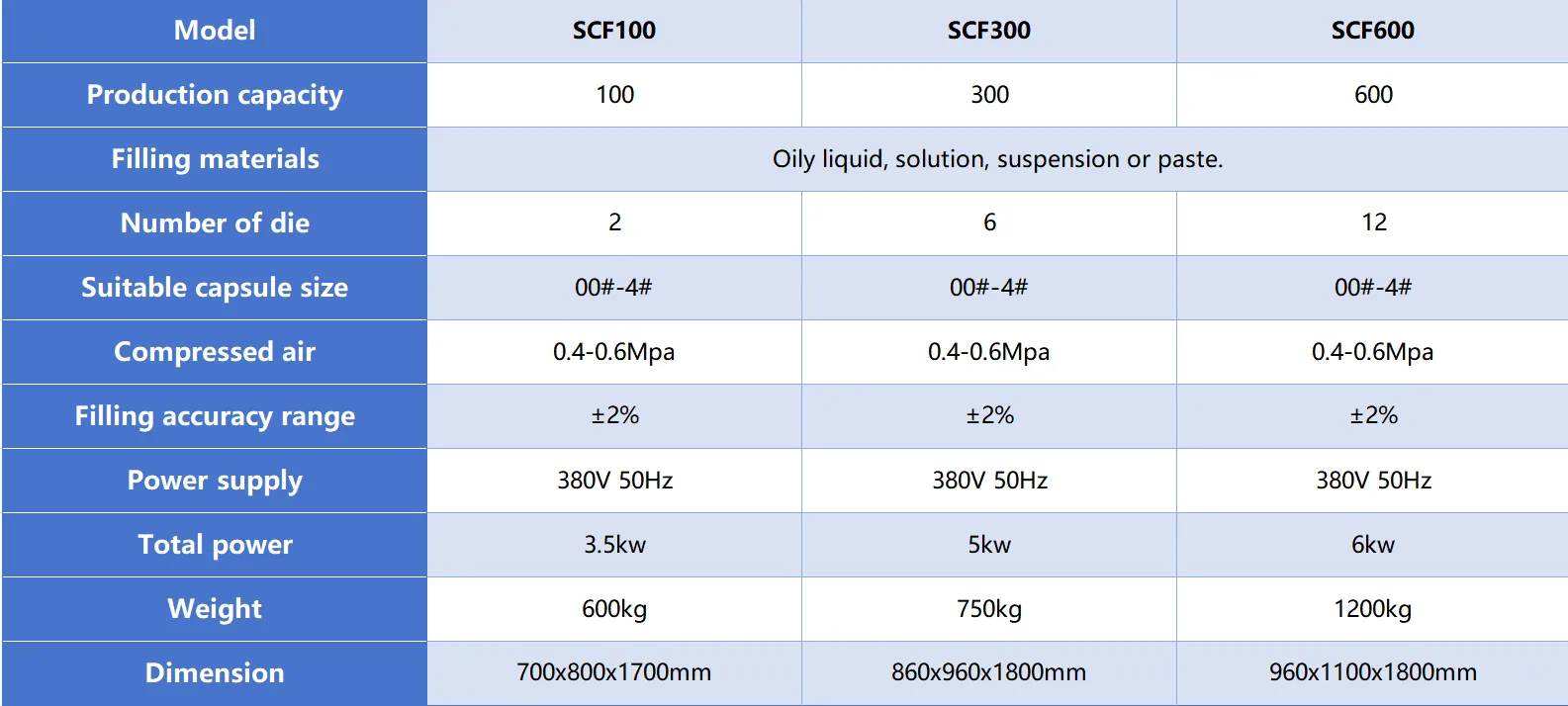

Technical Parameters of Liquid Capsule Filling Machine

technical parameters of liquid capsule filling machine

Product Details of Liquid Capsule Filling Machine

Not from hard capsule filling machine for filling solids like powders or granules. Liquid capsule filling machine is a specially designed machine mainly used to fill liquid substances into capsules accurately and efficiently. It is widely used in the pharmaceutical or nutraceutical industry to produce liquid drugs or liquid healthcare products.

After more than 20 years of technological accumulation, we innovatively design a new generation of liquid capsule filling machine. it can also be used with hard capsule sealing machine together to seal capsules between the capsule cap and body with glue, which guarantees the capsules are constantly in the sealing condition during packaging, storage and transportation.

  • Adopting stepless variable frequency speed adjustment, precisely control the filling accuracy.
  • Operation is convenient and intuitive, adopting completely automatic operation.
  • Filling accuracy is precise, not filling liquid when shortage of glue.
  • Optical detection of defective capsules such as empty capsules or capsules with false volume.
  • High precision driven motor ensures stable and smooth operation, the noises are reduced to a relatively low level.
  • Equipped with smart alarm system. Automatically alarm when no capsules are fed.
  • From 00#to 4#, multiple capsule sizes available, meeting your diverse production needs.
  • PLC and touch screen control system make controlling and operation of complicated machine simple.
  • Modular design makes the replacement, maintenance and cleaning of dies, punches, turret and other parts of machine easy and simple.
  • All manufacturing processes meet with GMP standards.
liquid capsule filling machine

Current Product: Liquid Capsule Filling Machine

This Senieer’s liquid capsule filling machine fills the gap in the field of pharmaceutical liquid capsule filling. The innovative diverse liquid filling ways solves the problems of absorbing drugs difficultly of many medicines or supplements. Our liquid capsule filling machine includes the following stations or steps which make the liquid capsule filling smoothly and continuously, including capsule separation, liquid filling, filling of other solids(mini pellets, tablets or small capsules), defective capsules rejection, capsule locking, capsule discharge. Our liquid capsule filling machine are welcomed by global countries especially Middle East, South Africa, Europe and Africa and Southeast Asia.
