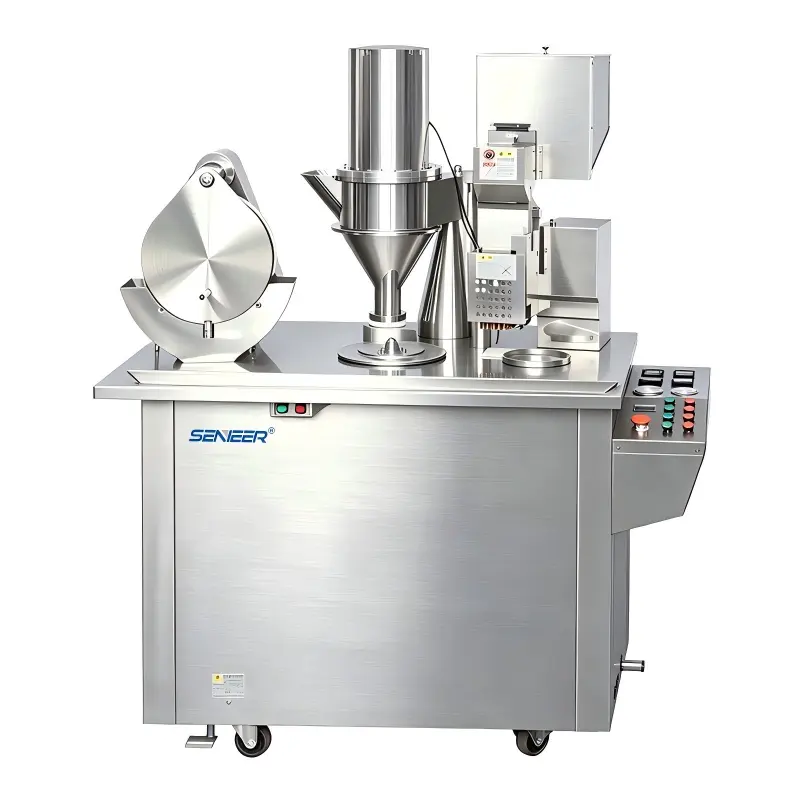

Herbal Capsule Filling Machine

Herbal Capsule Filling Machine for Poor-Flowing Herbal Powders

Herbal Capsule Filling Machine

  • Model
  • Applicable Capsule
  • Hopper Inner Surface
  • Working noise
  • Powder Collection
  • Filling Method
  • SCF
  • 00,0,1,2,3,4,5#
  • Ra < 0.4 μm
  • <75DB(A)
  • Negative pressure
  • Multi-station staged tamping

The Senieer Herbal Capsule Filling Machine is designed for capsule manufacturers handling herbal powders that are difficult to feed and fill consistently. Herbal formulations may contain long fibers, multiple components and powders with different particle sizes and bulk densities, increasing the risk of bridging, layering and capsule fill-weight variation.

To address these challenges, the machine combines assisted powder feeding with multi-station staged tamping. A vibrator helps break powder bridges and maintain material feeding, while progressive tamping expels air and gradually forms the powder into a more stable slug before capsule filling. These mechanisms support the handling of herbal formulations with challenging flow characteristics

Request A Quick Quote

Product Features

  • Vibration-assisted feeding helps break powder bridges and maintain flow.
  • Multi-stage tamping progressively expels air from fluffy herbal powders.
  • Ra < 0.4 μm hopper surface helps reduce powder adhesion.
  • Negative-pressure collection helps manage herbal powder during machine operation.
  • Servo motors provide adjustable rotational speed during machine operation.
  • Progressive tamping helps form powder slugs with more stable density.

Application

Application of Senieer equipment in pharmaceutical industry

Pharmaceutical

Application of Senieer equipment in nutraceutical industry

Healthcare

Application of Senieer equipment in food industry

Food

Application of Senieer equipment in chemical industry

Chemical

Application of Senieer equipment in cosmetic industry

Medicine

Senieer icon

Animal

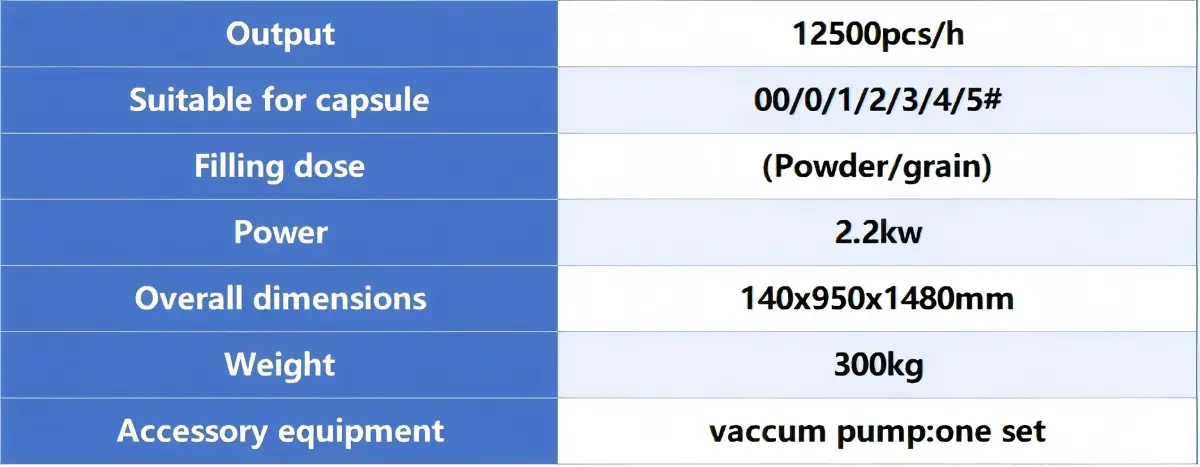

Technical Parameters of Herbal Capsule Filling Machine

herbal-capsule-filling-machine-specifications

Product Details of Herbal Capsule Filling Machine

Herbal Powders for Capsule Filling
Herbal Powders for Capsule Filling
Herbal Powder Flow and Capsule Weight Variation

Herbal powders can present different filling characteristics from free-flowing powders. Long fibers and multiple components can result in a wide particle-size distribution after crushing. Differences in bulk density can also make uniform feeding and dosing difficult. Polysaccharides or gums in some formulations readily absorb moisture, while static electricity can further affect powder movement.

Under these conditions, powder may form an arch in the feeding area and interrupt material flow. Components with different physical characteristics can also form layers or segregate. For manufacturers, these changes in powder behavior can contribute to unstable filling conditions and capsule fill-weight variation.

Nutraceutical products span a wide spectrum of dosage forms and physical properties—from free-flowing liquids and fine powders to viscous pastes and thermally sensitive gels. Selecting the right filling system is critical to ensure dosing accuracy, product integrity, production efficiency, and compliance with dietary supplement GMP regulations.

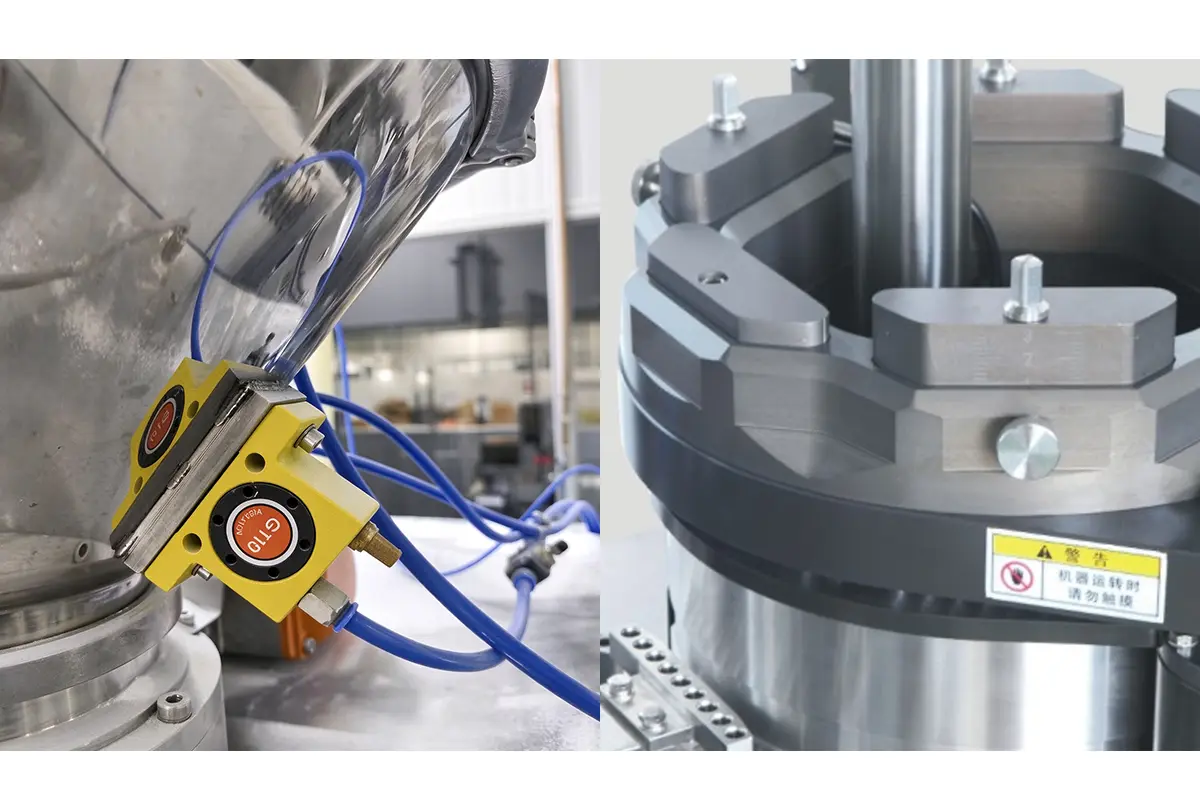

Vibration and Tamping System for Herbal Capsule Filling
Vibration and Tamping System for Herbal Capsule Filling
Vibration Assisted Feeding for Powder Bridging

Senieer uses a vibrator to help break the powder arch when bridging occurs. Disturbing the bridged material helps powder continue moving toward the filling device. This mechanism targets interrupted feeding; its suitability should be evaluated with the intended herbal formulation.

Progressive Tamping for Fluffy Herbal Powders

Multi-station staged tamping applies light pressing progressively rather than relying on one-time compression. The staged process expels air from fluffy powder and forms a slug with more stable density before filling. This supports more consistent filling conditions for powders with variable density. Actual fill-weight performance remains dependent on the formulation and selected operating conditions and requires sample testing.

Supporting Powder Handling Features

The hopper has a source-stated inner surface roughness of Ra < 0.4 μm to help reduce material adhesion. Negative-pressure collection supports herbal powder handling, and servo motors provide adjustable rotational speed.

herbal-capsule-filling-machine

Current Product: Herbal Capsule Filling Machine

The Senieer Herbal Capsule Filling Machine is intended for herbal powders where bridging, poor flow and density differences make consistent filling difficult. Vibration-assisted feeding helps maintain powder movement, while progressive tamping expels air and supports powder slug formation. The smooth hopper surface helps reduce adhesion. For machine selection, provide a representative herbal powder sample, powder characteristics, target capsule size, required fill weight and target production capacity so Senieer can evaluate the appropriate configuration and sample-test requirements.
