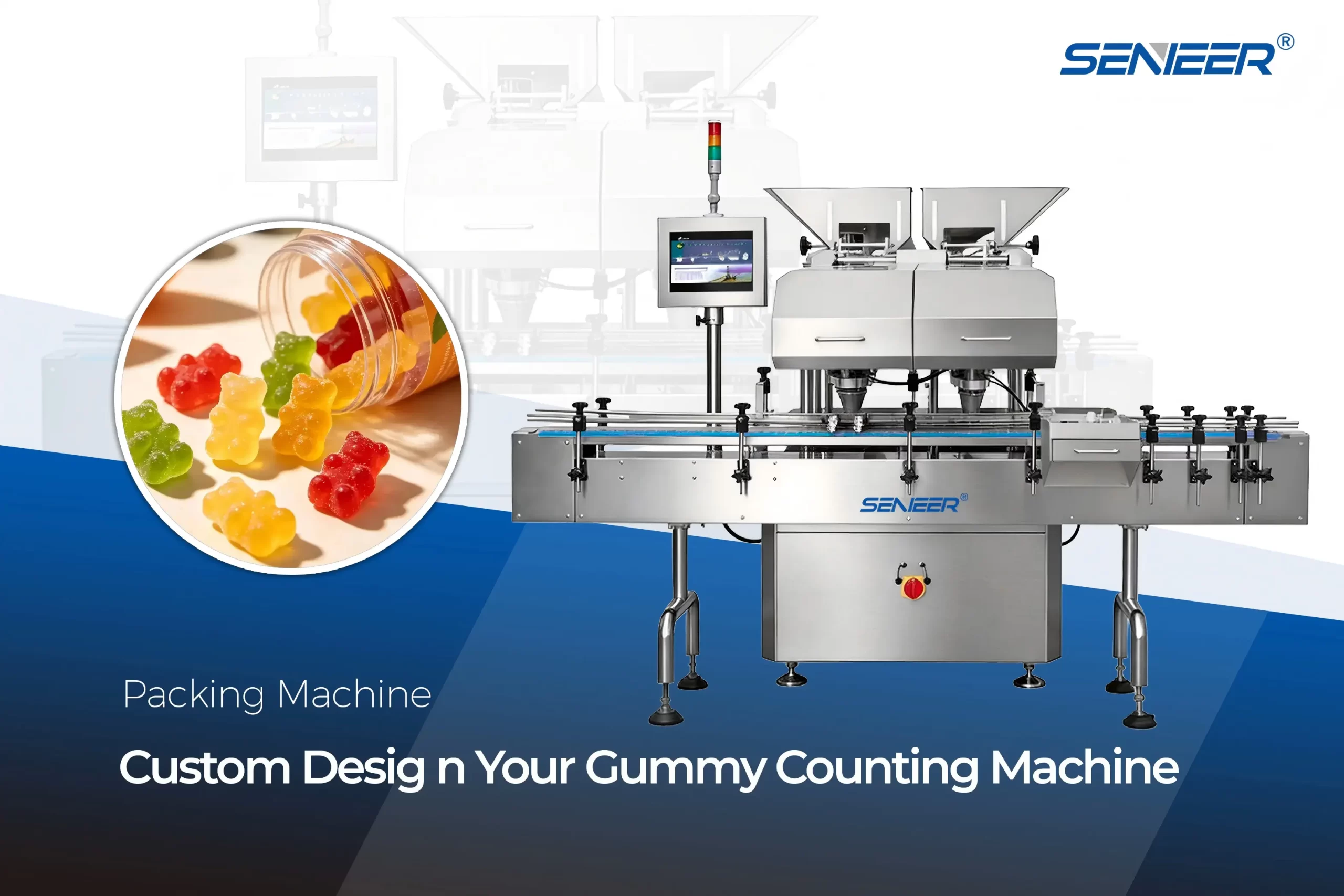

Gummy Counting Machine
High-speed gummy counting machine with CCD vision technology for vitamin gummies, CBD gummies, and nutraceutical gummy packaging. Achieve precise counting, gentle handling, and stable bottle filling performance. Choosing Senieer® gummy counting machine improves the efficiency of your gummy counting production line and facilitates every step of rapid packaging.
What Is a Gummy Counting Machine?
Gummies are a popular and appealing confectionery enjoyed in everyday life. A Gummy Counting Machine is a fully automatic counting and bottle-filling solution designed to accurately count and package a wide variety of gummy and candy products, including gummy bears, chewy candy, hard candy, dragees, and milk tablets.
Equipped with a high-precision CCD vision system and made from food-grade materials, the gummy counting machine ensures accurate counting and consistent quantities in every bottle. Its hygienic design helps prevent contamination and oil stains, making it suitable for applications where product cleanliness and counting accuracy are essential.
The main function of a gummy counting machine is to automatically count gummies supplied in bulk and dispense a precise quantity into each bottle or container. The filled bottles can then be transferred to subsequent processes, such as capping, labeling, sealing, and packaging.
Different Types Of Gummy Counting Machine
With the multi-channel design, the Senieer gummy counting machine enables seamless conversion from small and medium-sized batches to large-scale production. Whether it is an 8 – channel, 12-channel, 16 – channel, 24-channel, 32 – channel, or 48-channel configuration, the equipment has excellent counting accuracy and production efficiency.
SVC Visual Tablet Counting Machine
SEC Electronic Tablet Counting Machine
Choose Your Gummy Counting Machine
Gummy Counting Machines are widely used in food enterprises to automatically count gummies of various shapes and sizes and provide quantitative output. They are ideal main equipment for gummy packaging production lines. They can also be used in the chemical, light industry, pharmaceuticals, and nutrition industries.
In pharmaceutical production lines, they are used for counting various capsules and tablets, including size 00 capsules, softgels, φ5.5–12 mm plain tablets, irregular tablets, and sugar-coated tablets.
In the food and nutrition industries, they are often used in the packaging of sugar-coated gummies, powder-coated candies, and vitamin gummies.
- Modular design structure,tool-free disassembly
- 8/12/16/24 counting and filling channels
- Suitable for Sticky Gummies
- 3 – stage vibration plate
- 99 – 99.98% counting accuracy with rejection
- CCD Vision Counting System
- GMP standard with CE
Guidelines For Gummy Counting Machine
Candy and gummies are common snacks that serve as nutritional supplements. To enhance the taste, sugar and starch are typically added as the main ingredients, resulting in a sticky texture of the finished products. When counting gummies using a counting machine, it is better to design a customized solution based on the characteristics of the gummies. There are many types of gummies: sugar-coated, powder-coated, uncoated, etc. Due to factors such as viscosity and other properties, we need to develop targeted and optimized design solutions for each different type of gummy. This is to ensure that the materials can flow evenly onto the vibrating plate, prevent them from sticking together, and thereby achieve more accurate counting.
Feature of Gummy Counting Machine
- Automatic rejection system of counting errors
- High-precision visual inspection
- Emergency stop
- Easy and simple Maintenance and Repair
- Removal of broken particles
- Whole process recording
- Alarm warning with sound and light
How Our Gummy Counting Machine Works
During operation, gummies are fed into the top hopper and pass through a two-stage vibrating feeding system, then fall freely into the camera detection station. The CCD camera identifies each medication particle, and the controller performs image analysis to control the opening of the small and medium feeding gates. The particles are subsequently filled into bottles and proceed through the filling line. During operation, defective or oversized particles are removed at the rejection station, while qualified bottles move to the next stage. This system is suitable for Hard Candy, Soft Candy, M-Bean Gummies, and other types of candies. The gummy sliding track features a three-tiered stepped design, and the human-machine interface is a powerful industrial tablet computer.
Gummies Our Machine Can Count
Fortified with multi-vitamins; supplement daily nutrition
Contain premium CBD extract; mild & easy to consume
Support healthy sleep cycle; convenient oral intake
Formulated with hydrolyzed collagen; support skin condition
With active probiotics; help balance intestinal flora
Cute bear shape; assorted fruity flavors
Rich in Omega-3; support brain & eye health
Plant-based pectin; gelatin-free, vegan friendly
Key Components of Gummy Counting Machine
Vibratory Feeder System—Equipped with vibrating hoppers and conveyor tracks to uniformly disperse and sort Gummies for efficient conveyance.
Channel/Lane Counting System—Multiple lanes allow gummies to pass through the counting area in a single row, ensuring high-speed and precise counting.
vision System—This system detects gummies passage to enable contactless counting, serving as the core counting unit.
PLC Control System & HMI Touch Screen—Enables configuration of counting parameters and speed settings, with real-time operational status monitoring.
Hopper / Material Storage Tank—Used for storing gummies to be counted, ensuring continuous material supply.
Bottle Feeding / Container Transport System—Automated delivery of bottles to the dispensing port, synchronized with counting for automated filling.
Discharge/Filling Mechanism—The gate automatically opens upon reaching the counting threshold, allowing gummies to fall into the bottle.
Reject System—Automatically discards substandard bottles containing missing grains, excessive grains, or broken gummies.
