Automatic Liquid Filling Line

High Efficient Oral Liquid Filling, Stable Production Performance, Simple Operation.

Automatic Liquid Filling Line

  • Model
  • Applicable range
  • Production speed
  • Filling error
  • Power supply
  • Weight
  • SBF4,8,12,16
  • 5-100ml
  • 40-350b/m
  • ±1 - 2%
  • 380/220V
  • 650-7500kg

This automatic liquid filling line is suitable for the filling of 5-100ml oral liquid in the tube-type bottles, which consists of ultrasonic wave washing machine, hot air circulation oven, filling and capping machine. It is a highly automated equipment and can be used together to form a complete liquid production line or be used separately according to specific needs. In addition to oral liquid, it can also be adopted for the filling of other liquids such as wine, water, eye drops, injections, etc. Senieer automatic liquid filling line has a stable performance, operation is simple and reliable. We also offer customized service to meet the production needs of different specifications and capacities as per clients’ process requirements.

Request A Quick Quote

Product Features

  • Filling range is from 5 to 100ml, suitable for multiple specifications.
  • Suitable for the filling of vials, other bottles like ampoules can also be applicable by replacing related moulds or adjusting devices and machines.
  • Filling errors are very small, within ±1 – 2%.
  • Adopts mesh belt bottle feeding.
  • Triple Water and Triple Gas Internal and External Rinsing, ensuring sterilization.
  • Stable performance of production line, operation is easy and reliable.

Application

Application of Senieer equipment in pharmaceutical industry

Pharmaceutical

Application of Senieer equipment in nutraceutical industry

Nutraceutical

Application of Senieer equipment in food industry

Food

Application of Senieer equipment in chemical industry

Chemical

Application of Senieer equipment in cosmetic industry

Cosmetics

Senieer icon

Animal

Other Models Of Bottle Filling Line

pharmaceutical bottle packaging line-3
Pharmaceutical Bottle Packaging Line

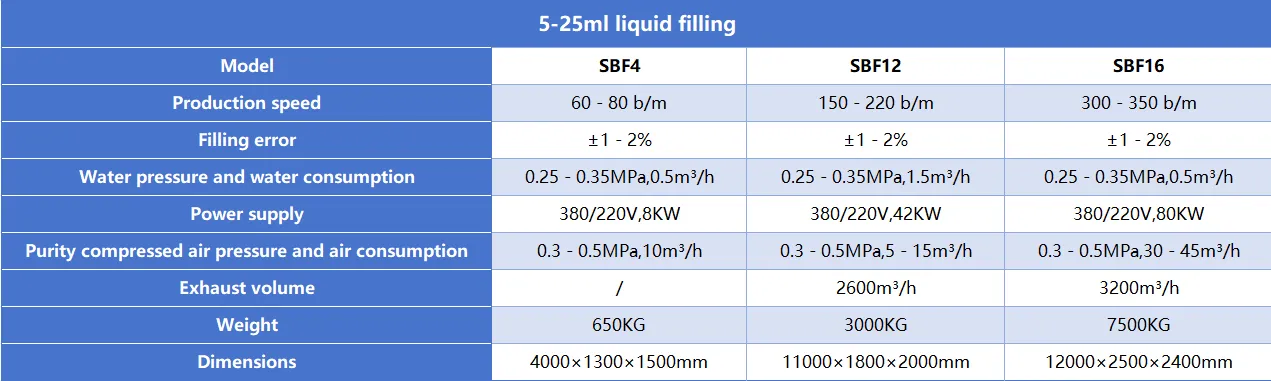

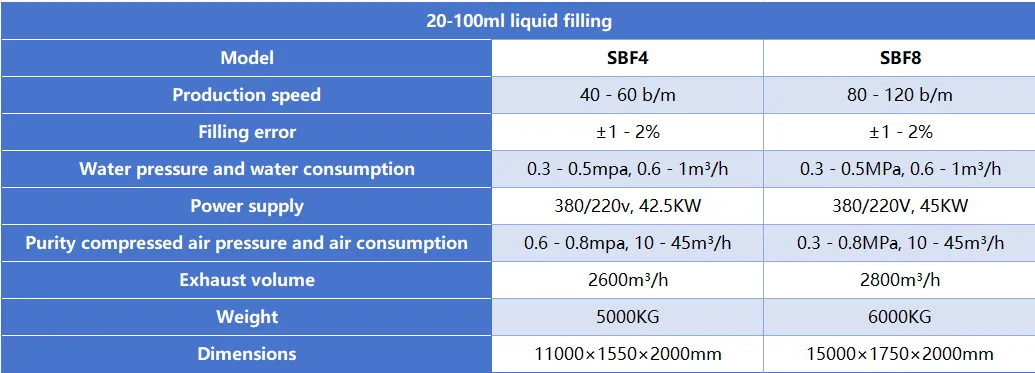

Technical Parameters of Automatic Liquid Filling Line

automatic liquid filling line specification-2
automatic liquid filling line specification-1

Product Details of Automatic Liquid Filling Line

Automatic liquid filling line is a highly automated production line integrating bottle washing, bottle drying, liquid filling, capping, etc., for precise filling liquid products into various containers such as vials, bottles, ampoules, etc. It adopts PLC control, equipped with flow meters to ensure accurate and consistent filling to meet GMP standards and requirements. The standard model is suitable for oral liquid filing, filling capacity range from 5 to 100 mil. In addition, we also offer other liquid filling lines for diverse filling needs such as water, wine, injections, eye drops, large infusion, vaccine,sprays etc.

  • Suitable for metal screw thread cap, plastic or aluminum caps.
  • Two different capacities of oral liquid filling production lines: 5-25ml and 20-100ml.
  • Bottle washing machine adopts mechanical arms to clamp bottles, suitable for multiple specifications of bottles.
  • Adopts tracking insertion for water and gas spray washing, which ensures high quality cleaning and can save water usage.
  • Bump stop device in the bottle washing machine to protect bottles from breaking.
  • Functions of no filling and capping when no bottles are feeding.

The whole liquid filling line adopts PLC control, frequency converter and touch screen controlling technology.

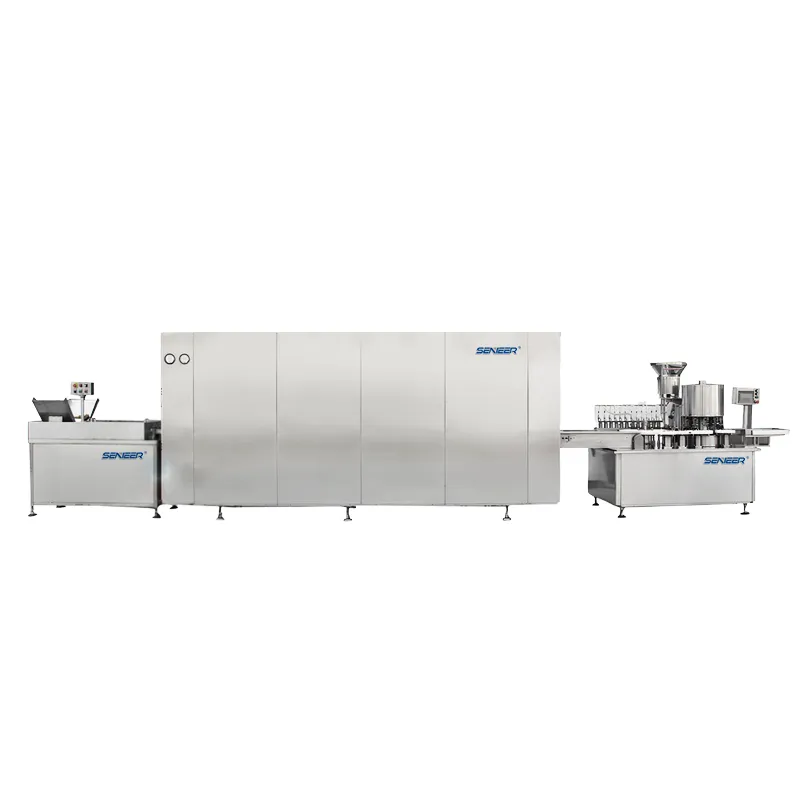

automatic liquid filling line-1

Current Product: Automatic Liquid Filling Line

As one of the top leading bottling line manufacturers, Senieer offers one-stop solutions for our clients. We can custom design and manufacture automatic liquid filling lines as per client’s specific needs and process requirements. The whole production line touch screen function can display the operation status of each machine and device, featuring breakdown self-diagnosis, analysis and exclusion.

Upstream Products

SBU160 Automatic Bottle Unscrambler
Automatic Bottle Unscrambler
automatic capping machine-3
Automatic Capping Machine
automatic sticker labeling machine-4
Automatic Sticker Labeling Machine

Downstream Products

automatic cartoning machine-3

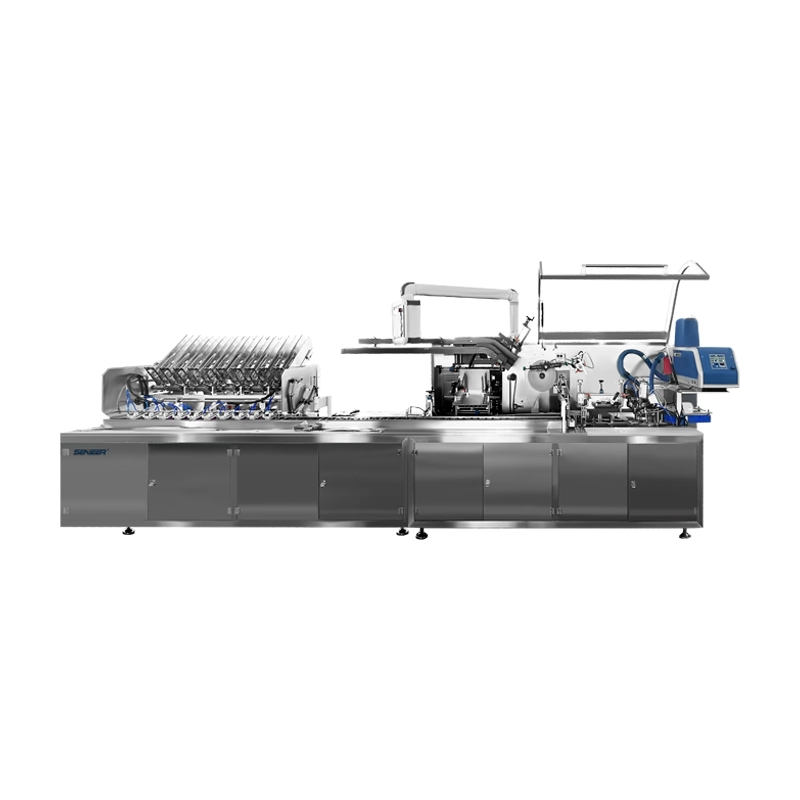

Cartoning Machine
palletizer
Palletizer

Product Inquiry

Customized one-stop product solutions,
industry expert advice is waiting for you! Start your project today

Download PDF
transparent-background-logo(R)

With Experts Team Of 37 Years Experiences , Senieer® Is One-Stop Turnkey Projects Solutions Supplier. Our Production Lines Include Granulation Line, Bottle Filling Line, Blister Packaging Line, Powder Line, etc. Senieer® Can Custom Design As Per Your Specific Requirements.
