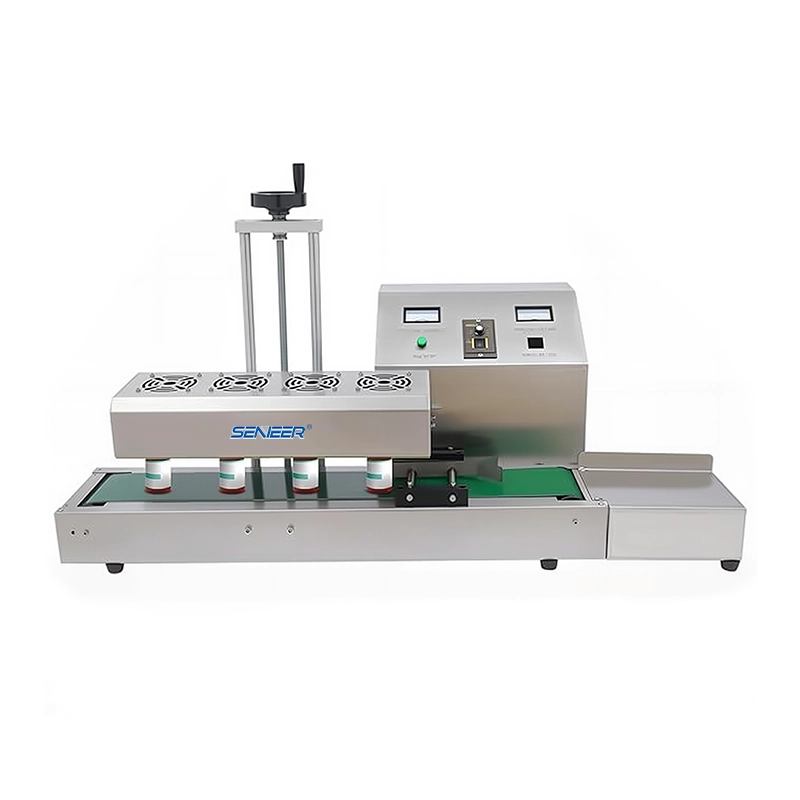

SIS Induction Sealing Machine

Fully automatic, high quality and high speed cap sealing solutions. Senieer SIS Induction Sealing Machine adopts water-cooling, works all day and in continuous, high efficiency.



SIS Induction Sealing Machine

  • Model
  • Bottle neck diameter
  • Bottle height
  • Max power
  • Voltage/frequency
  • Induction sensor size
  • Dimension(L×W×H)
  • Packing weight
  • SIS
  • Φ15mm-Φ70mm
  • 0-490mm
  • 4Kw
  • 220V, 50/60Hz
  • 660×130×140mm
  • 1700×1100×1380mm
  • 139Kg

SIS Induction Sealing Machine is a cap sealing equipment, which adopts electromagnetic induction principle to seal the bottle neck with aluminum foil. Its working principle is simple. After opening power supply, an electromagnetic field will be generated in the induction head. When the bottles with aluminum foil inside the cap pass through under the induction head, heat will be created to melt the aluminum foil layer, so it can be bonded onto the bottle neck tightly. Then a secure seal has been finished. The induction head of SIS Induction Sealing Machine adopts a special tunnel type structure which has a three-dimensional stereoscopic heating mode to make the sealing effect much better.

Request A Quick Quote

Product Features

  • Adopts excellent stainless steel structure, convenient product design, beautiful and natural, compliant with GMP standards.
  • The host generator selects transistor, CPU module design, low breakdown rate.
  • Exclusive power switch design, ensuring consistent power output.
  • Water cooling, work continuously , high efficient and high speed.
  • Special tunnel structure for induction head, better heating effectiveness.
  • Portable design, convenient to be used in coordination with production line.

Application

Application of Senieer equipment in pharmaceutical industry

Pharmaceutical

Application of Senieer equipment in nutraceutical industry

Nutraceutical

Application of Senieer equipment in food industry

Food

Application of Senieer equipment in chemical industry

Chemical

Application of Senieer equipment in cosmetic industry

Cosmetics

Senieer icon

Animal

Other Models Of Cap Sealing Machine

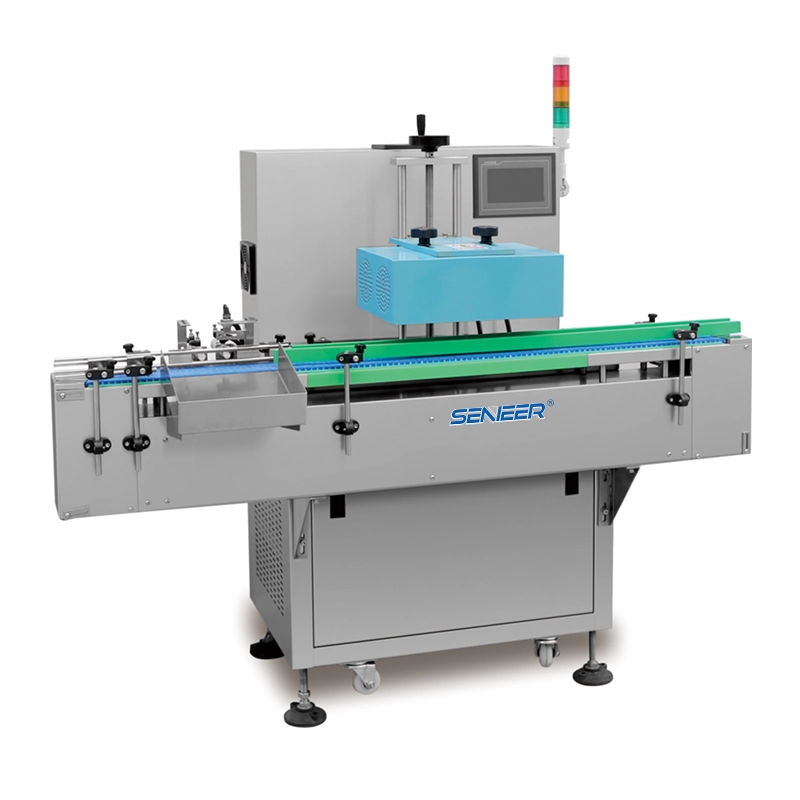

SAS Aluminum Foil Sealing Machine
SAS Aluminum Foil Sealing Machine

Technical Parameters Of SIS Induction Sealing Machine

No.

Item

Details

1

Bottle neck diameter

Φ15mm-Φ70mm(special bottle neck need customization)

2

Bottle height

0-490mm

3

Flow packing line velocity

0-60m/min

4

Sealing speed

200b/m

5

Max power

4Kw

6

Voltage/frequency

220V, 50/60Hz

7

Induction head size

 660×130×140mm

8

Induction generator size(L×W×H)

510×750×1380mm

9

Dimension(L×W×H)

1700×1100×1380mm

10

Packing Weight

139Kg



SIS Induction Sealing Machine : Product Description

SIS Induction Sealing Machine, also called induction cap sealing machine or induction sealer, is a very commonly applied sealing machine across many industries such as pharmaceuticals, pesticide, healthcare products, agriculture, food, cosmetics among many others. Its sealing speed reaches 200 bottles per minute( PE bottle with 30mm diameter as an example. Its conveyor speed ranges from 0-60m per minute, which satisfies most of your production needs. Optional device of automatically reject bottles with no aluminum foil inside it is available. The automatic bottle feeding device is designed for high speed production.

SIS Induction Sealing Machine adopts water cooling mode, but air cooling is also available. If you select this machine for healthcare products use, air cooling is recommended because it can reduce the effect of moisture to the aluminum foil. The height of induction head is adjustable, so it can adapt to a variety of bottle specifications.

With 37 years of experiences in the industry, Senieer offers high performance equipment, strict quality control, excellent and comprehensive after-sales&maintenance services for its clients. We believe that client’s success is our success, so we dedicate to our product R&D and manufacturing with serious and responsible attitudes. Until now, Senieer has worked with 10,000 solutions in 50countries, which help us accumulate abundant experiences in pharmaceutical equipment industry.

Welcome to contact us to learn about more our products and company information.

induction sealing machine-2

Current Product: SIS Induction Sealing Machine

SIS Induction Sealing Machine is an automatic induction sealer machine. It is widely used for plastic bottles in pharmaceutical, food, and healthcare products industries. This machine can arbitrarily adjust the height of induction head within a certain range. So it is suitable for multi-specifications of bottles, which reduces the costs for changing molds or machines. If the induction heads and hosts belong to the same machine model, they can be for interchangeable use. It has the CE certification, compliant with GMP standards.

Upstream Products

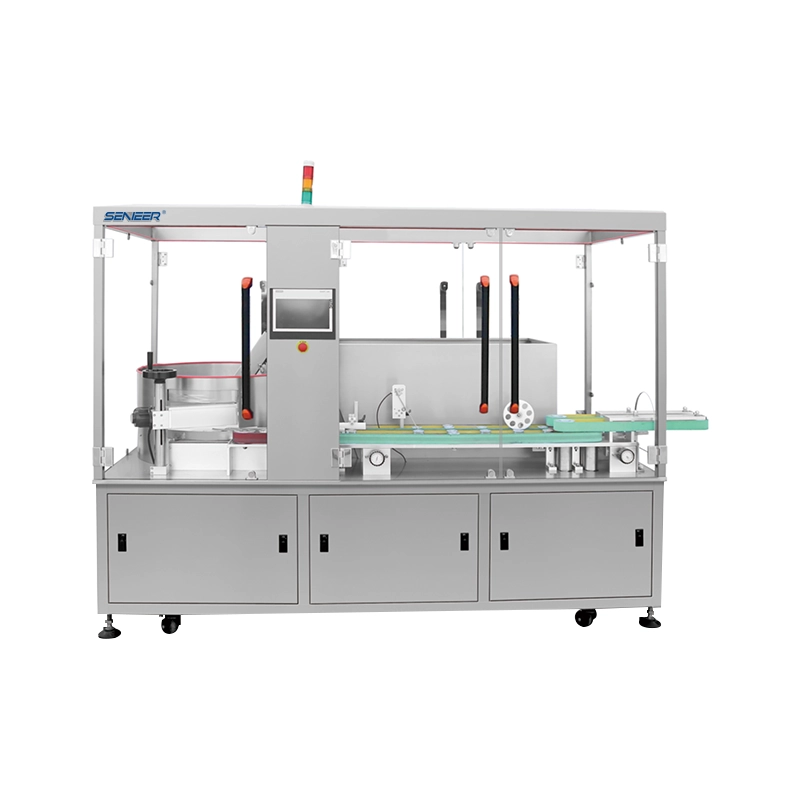

SBU160 Automatic Bottle Unscrambler
SBU160 Automatic Bottle Unscrambler

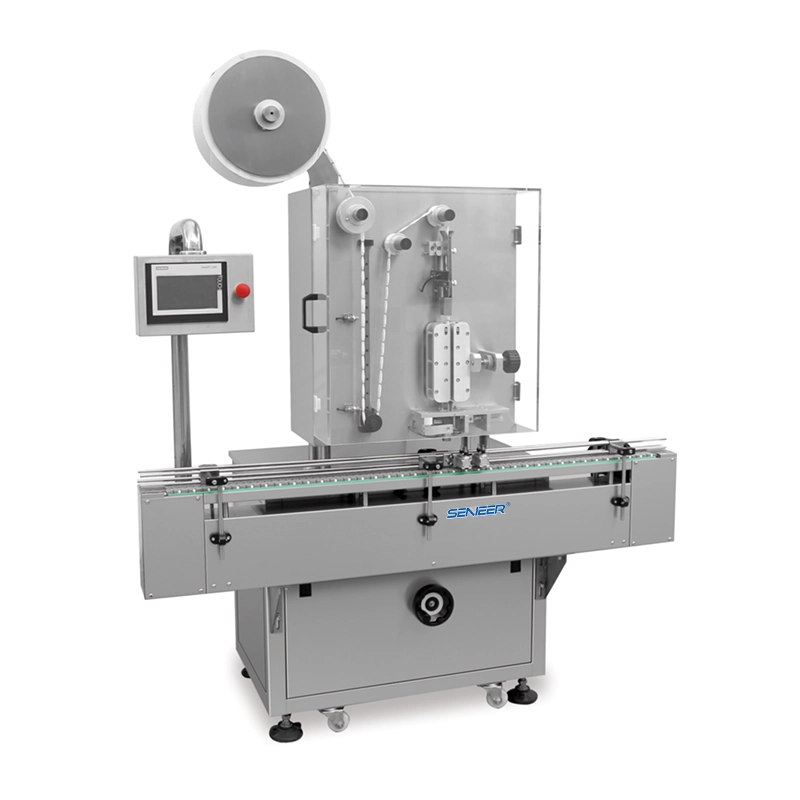

ssd single head high speed desiccant inserter
SSD Single Head High Speed Desiccant Inserter

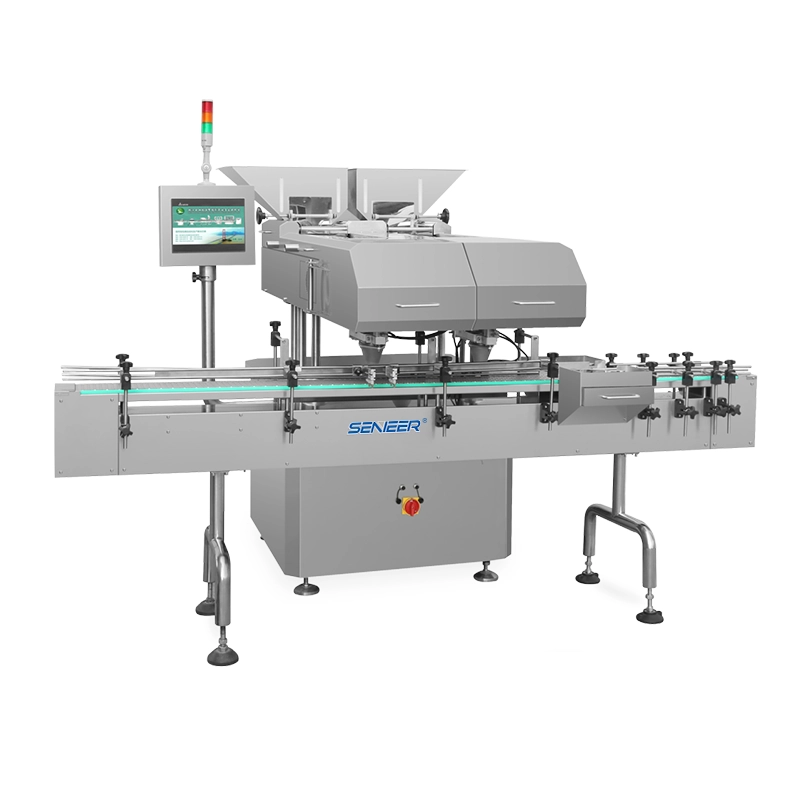

SVC Visual Tablet Countng Machine
SVC Visual Tablet Counting Machine

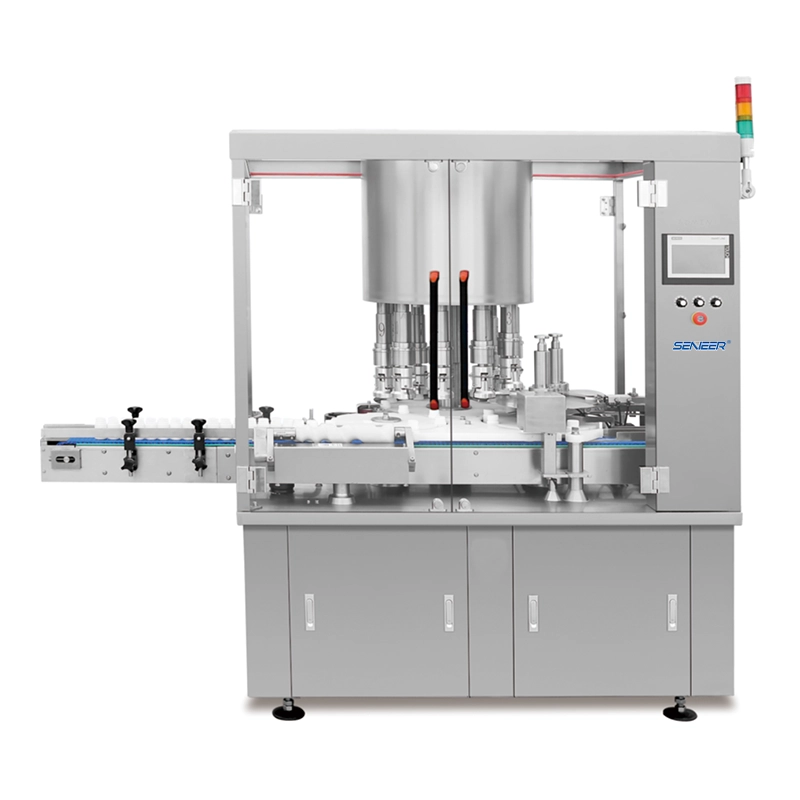

SSC Screw Capping Machine
SSC Screw Capping Machine

Downstream Products

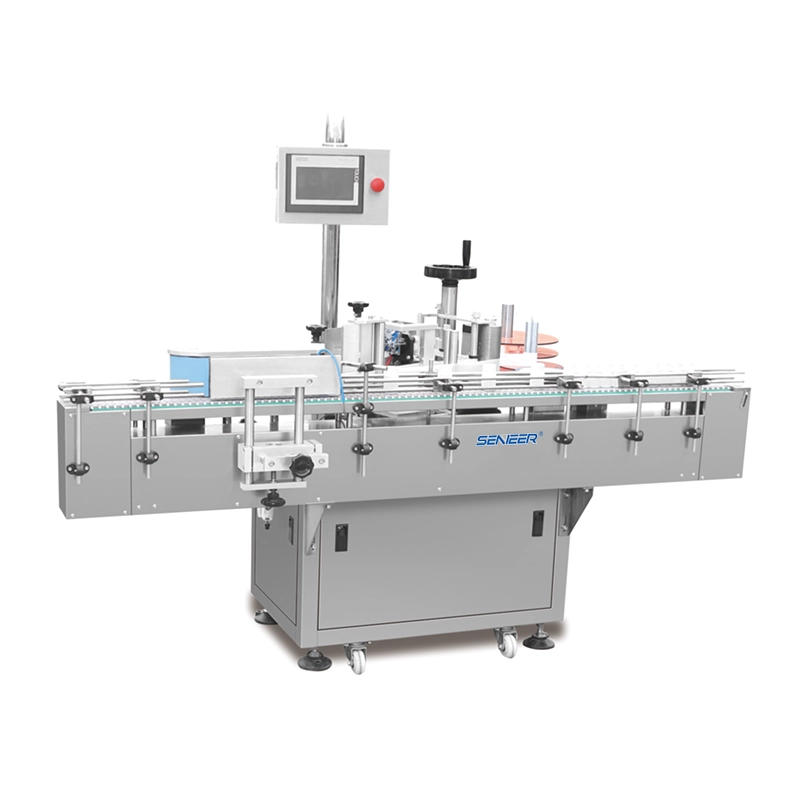

SVL Vertical Self-adhesive Sticker Labeling Machine
SVL Vertical Self-adhesive Sticker Labeling Machine

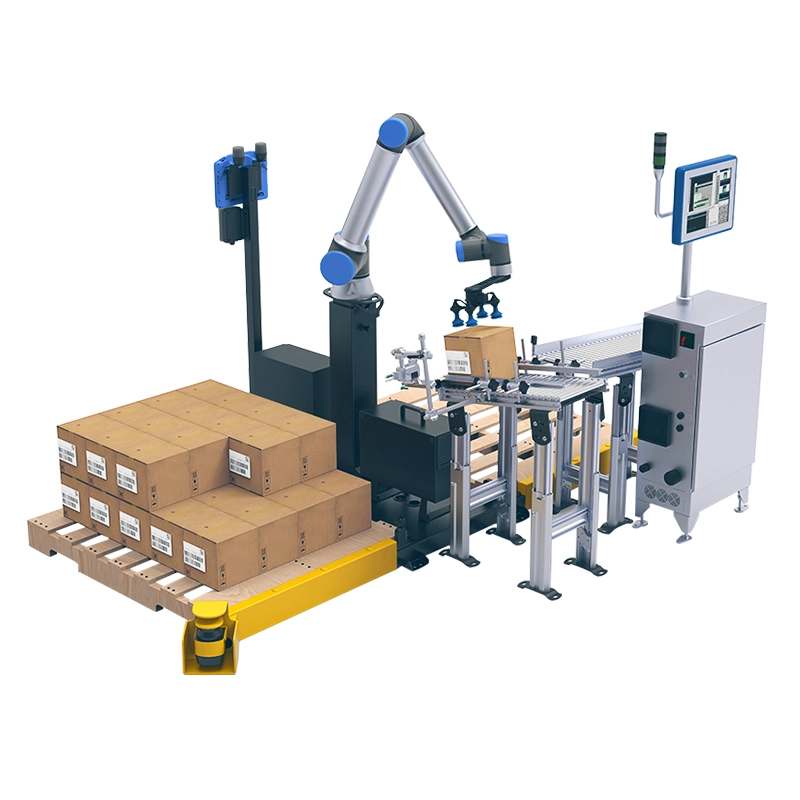

palletizer
