SBU160 Automatic Bottle Unscrambler

High volume, automatic bottle-feeding, sorting and orienting as well as all-sealed SBU160 automatic bottle unscrambler enhance your bottle unscrambling efficiency and reduce labor cost.

SBU160 Automatic Bottle Unscrambler

  • Model
  • Output
  • Applicable range
  • Power
  • Air supply
  • Air pressure
  • Net dimensions
  • Weight
  • SBU160
  • 20~160 b/m
  • 15~300ml
  • 0.5Kw
  • 0.2m³/h
  • 0.5Mpa
  • 1006×1506×1200
  • 260Kg

SBU160 automatic bottle unscrambler is a full-sealed equipment for automatically elevating and unscrambling of bottles in high speed. It adopts high-volume feeding hopper in its inner part, which reduces the working intensity of labors and enhances the production efficiency at the same time. This high speed automatic bottle unscrambler consists of bottle storage hopper, bottle elevating structure, bottle unscramble structure and electric control system. It is suitable for plastic and non-fragile-containers. For fragile containers such as glass, metal, and ceramic, different types of technology such as depalletiers need to be adopted for automatic feeding of those bottles to avoid destroy.

Request A Quick Quote

Product Features

  • Large volume bottle storage hopper, around 0.45m³, reducing manpower and improving production efficiency.
  • Control system adopts PLC and HMI, which is direct, simple and easy to operate.
  • Stable operation, bottle supply with high efficiency and overload protection.
  • Automatic equipment integrates mechanical, electrical and pneumatic technology.
  • Photo sensor to detect bottle jam or bottle lacking.
  • Bottle turnover and air blowing down structure to ensure bottles upward.

Application

Application of Senieer equipment in pharmaceutical industry

Pharmaceutical

Application of Senieer equipment in nutraceutical industry

Nutraceutical

Application of Senieer equipment in food industry

Food

Application of Senieer equipment in chemical industry

Chemical

Application of Senieer equipment in cosmetic industry

Cosmetics

Senieer icon

Animal

Other Models Of Bottle Unscrambler

sbu150 medium speed bottle uscrambler

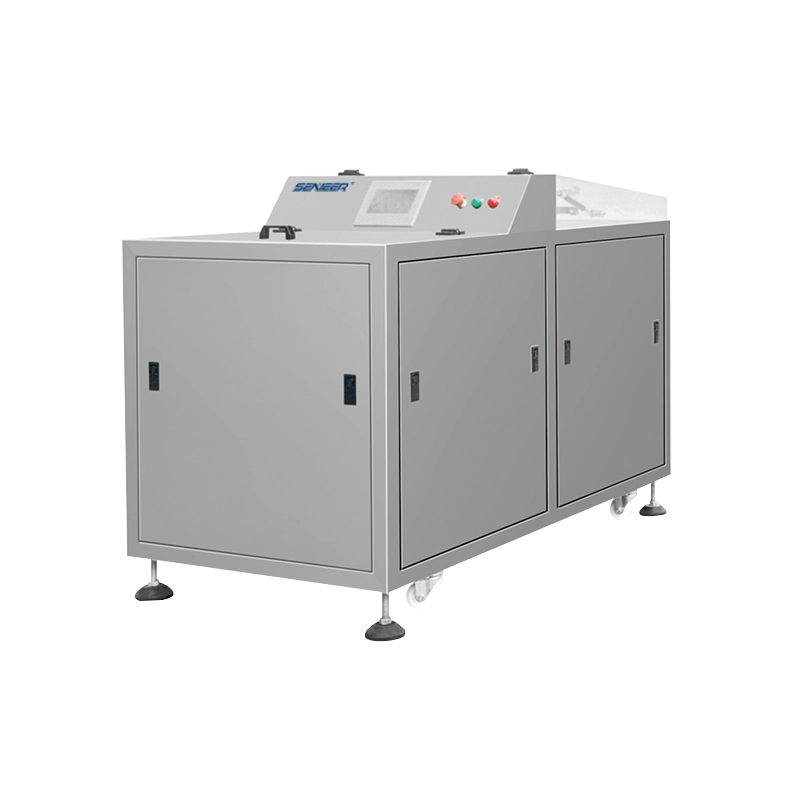

SBU150 Medium Speed Bottle Unscrambler

Technical Parameters Of SBU160 Automatic Bottle Unscrambler

No.

Items

Details

1

Output

20~160 b/pm

2

Bottle specification

15~300ml

3

Voltage/Frequency

220V AC50/60Hz

4

Power

0.50Kw

5

Air supply

0.2㎡/h

6

Air pressure

0.5Mpa

7

Dimension(L×W×H)

1006×1506×1200

8

Weight

260Kg

SBU160 Automatic Bottle Unscrambler : Product Description

Senieer SBU160 is a high speed automatic bottle unscrambler. It is a high-automatic equipment integrates mechanical, electrical and pneumatic technologies. The Schneider PLC system enables operator to control equipment automatically and easily. The bottle turnover structure and air blowing down structure ensures every bottle to be bottle-mouth upward.  As one of the best bottle unscrambler manufacturer and supplier in globe, all Senieer bottle unscramblers for sale adopt 304 stainless steel machine frame and seal structure and meet GMP, EU or FDA standards.

SBU160 Automatic Bottle Unscrambler

Current Product: SBU160 Automatic Bottle Unscrambler

SBU160 is a high speed bottle unscrambler that adopts PLC system, HMI and inverter. Its overload protection function lowers bottle feeding frequency and reduces operator labor intensity.  Photo sensor is installed to detect bottle jam and bottle lacking. If the bottles jammed, the machine will be paused automatically. Whereas, it will automatically supply bottles if there is no bottle. Senieer SBU160 automatic bottle unscrambler empowers factory to enhance production efficiency and reduce labor costs.

Downstream Products

SDD Dual Head High Speed Desiccant Inserter
SDD Dual Head High Speed Desiccant Inserter
SVC Visual Tablet Countng Machine
SVC Visual Tablet Counting Machine
