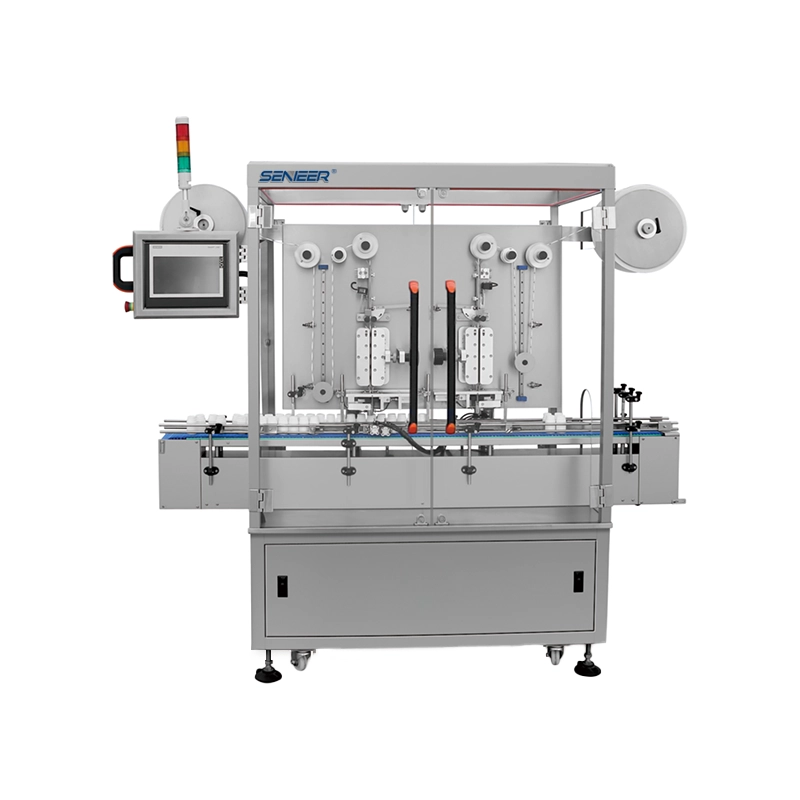

SDD Dual Head High Speed Desiccant Inserter

High-speed, full automatic, high accurate Senieer SDD dual head high speed desiccant inserter, featuring low noise, large volume filling, automatic wrong bottle detecting and rejection, etc. Custom design to meet your higher needs.

SDD Dual Head High Speed Desiccant Inserter

  • Model
  • Max output
  • Suitable bottle range
  • Voltage/frequency
  • Power
  • Compressed air
  • Dimension(L×W×H)
  • Weight
  • SSD Single Head
  • 150-240 b/m
  • D:30-120mm; H:30-200mm
  • AC220/50Hz
  • 0.65Kw
  • 0.30Mpa
  • 2350×880×1910mm
  • 300Kg

Senieer SDD dual head high speed desiccant inserter adopts dual head insetting devices, so it can deal with two rolled desiccants at the same time, which reduces the time for changing rolled desiccants when downtime. Hence, It enhances the production efficiency greatly. Automatic control, adopting PLC system and servo motor, ensuring high accurate cutting and filling of desiccant packets. Nitrogen protection is optional, suitable for sensitive products like drugs and food. It is widely used in the pharmaceutical, food&beverage, and nutrition supplements industries.

Request A Quick Quote

Product Features

  • PLC system achieves precise control of whole operation.
  • Dual sensors positioning system.
  • No-desiccant filling automatic detect device.(optional)
  • Alarm system for bottle jam, bottle shortage.
  • Automatic operation after malfunction is resolved.
  • Suitable for multiple bottle sizes.
  • Adjustable speed of feeding.
  • Standard 3 levels permission setting, reserving terminal data collection function.

Application

Application of Senieer equipment in pharmaceutical industry

Pharmaceutical

Application of Senieer equipment in nutraceutical industry

Nutraceutical

Application of Senieer equipment in food industry

Food

Application of Senieer equipment in chemical industry

Chemical

Application of Senieer equipment in cosmetic industry

Cosmetics

Senieer icon

Animal

Other Models Of Desiccant Inserter

ssd single head high speed desiccant inserter
SSD Single Head High Speed Desiccant Inserter

Technical Parameters Of SDD Dual Head High Speed Desiccant Inserter

No.

Items

Details

1

Max output

150-240 b/pm

2

Bottle specification

D:30-120mm; H:30-200mm

3

Voltage/Frequency

AC220V/50Hz

4

Power

0.65Kw

5

Compressed air

0.30Mpa

6

Dimension(L×W×H)

2350×880×1910mm

7

Weight

300Kg



SDD Dual Head High Speed Desiccant Inserter : Product Description

Desiccant inserter, also called desiccant inserting machine or pouch dispenser. Senieer SDD dual head high speed desiccant inserter adopts dual head, so it can achieve faster filling of desiccants. It also resolves the adjustment difficulty of desiccant round table due to the differences of manufacturers, and is suited for all sizes of desiccants. It can adjust according to the thickness of desiccant packets. Color mark detection and photoelectric control makes it easy to operate.



This machine adds automatic downtime function when the equipment door is opened, which can protect operators ‘ safety effectively. Senieer SDD dual head high speed desiccant inserter adopts PLC system control. All parameters can be adjusted and controlled in the operating interface.

The working process and principle of SDD dual head high speed desiccant inserter is simple. The continuous strip desiccants go through photoelectric detection device first, then will be cut into separate small bags. These cut small packets are filled into bottles coming from bottle unscrambler. The dual photoelectric sensors will automatically detect the color mark and thickness of desiccant packets, to achieve precise cutting and filling operation. The servo motor ensures high accurate cutting and filling, and can automatically adjust the gripping force to avoid the slipping or tearing of desiccants.

SDD Dual Head High Speed Desiccant Inserter

Current Product:SDD Dual Head High Speed Desiccant Inserter

Desiccant is a type of moisture adsorbing packets. It has various types including silica gel, cotton, etc. This SDD Dual head high speed desiccant inserter has no-bottle no-filling detection device, featuring stable operation, high accurate positioning, easy-to-operate, convenient maintenance, etc. It is commonly used in pharmaceutical, health care products, and food industries for cutting and filling various shapes and types of desiccants into containers(bottles). compact design, beautiful appearance, convenient to use and maintain. The height of machine is adjustable and suitable for multiple sizes of bottles.
